NSN 4010-00-410-7663 11647273, 00-410-7663, 004107663
Product Details | SINGLE LEG CHAIN ASSEMBLY
4010-00-410-7663 An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc..
Part Alternates: 11647273, 4010-00-410-7663, 00-410-7663, 4010004107663, 004107663
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 10 SEP 1972 | 00-410-7663 | 09765 ( CHAIN ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-00-410-7663
Cross Reference | NSN 4010-00-410-7663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11647273 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-410-7663
Technical Data | NSN 4010-00-410-7663
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL ALL ATTACHMENTS STEEL CHAIN |

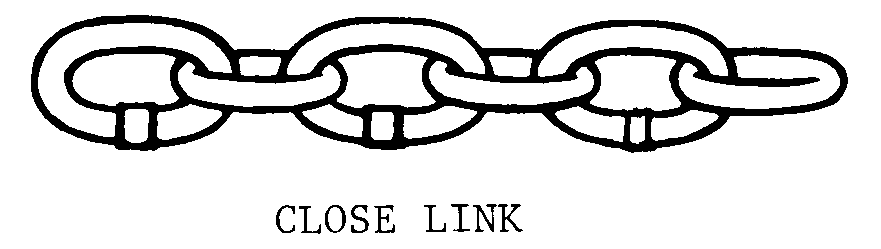

| STYLE DESIGNATOR | C22 CLOSE LINK |
| OVERALL LENGTH | 6.875 FEET NOMINAL |
| DIAMETER | 0.531 INCHES NOMINAL STOCK |
| SAFE OPERATING LOAD RATING | 13700.000 POUNDS NOMINAL |
| BREAKING STRENGTH | 26000.000 POUNDS MINIMUM |
| FABRICATION METHOD | FORGED |
| END TYPE | TERMINAL ATTACHMENT TERMINAL ATTACHMENT FIRST END |

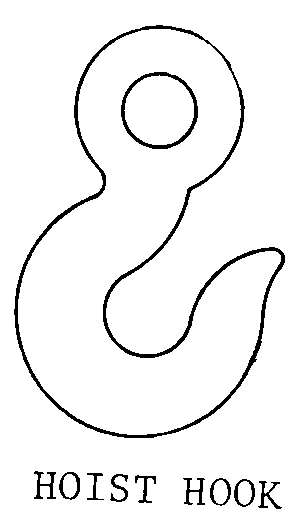

| ATTACHMENT STYLE | D53 HOIST HOOK HOOK |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 11647273 |
Restrictions/Controls & Freight Information | NSN 4010-00-410-7663
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
