NSN 4010-00-391-0541 MARKJL2D, MILC18295, T07010SH6
Product Details | DETACHABLE CHAIN LINK
4010-00-391-0541 A metal link made in two or more pieces, held securely together by means of a locking pin or other device but may taken apart for reuse. It is used to connect a chain and/or a cable and/or a rope and/or a strap, and the like. Excludes transmission chain links.20440100019Chain and Wire Rope40300035Fittings for Rope, Cable, and Chain53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: MARKJL2D, MILC18295, T07010SH6, 620661TABLES1415161718, 620661TABLES1-4-1-5-1-6-1-7-1-8-, JL2D, 34EL, 4010-00-391-0541, 00-391-0541, 4010003910541, 003910541
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-391-0541 | 68660 ( LINK, DETACHABLE ) |

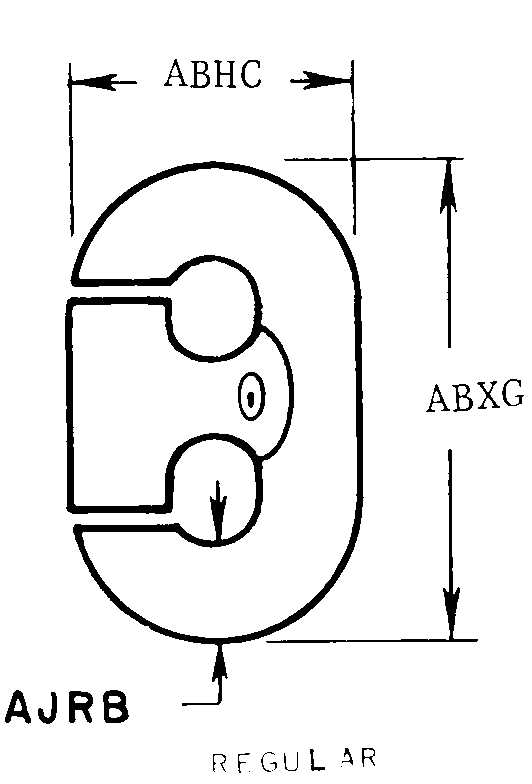

Drawings & Photos | NSN 4010-00-391-0541
Cross Reference | NSN 4010-00-391-0541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 34EL | 27160 | SLANT-FIN CORP |
| 34EL | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
| 34EL | 80914 | HENDRIX MFG CO INC |
| 620661TABLES1-4-1-5-1-6-1-7-1-8- | 80091 | NAVAL FACILITIES ENGINEERING COMMAND |
| JL2D | 80091 | NAVAL FACILITIES ENGINEERING COMMAND |
| MARKJL2D | 80091 | NAVAL FACILITIES ENGINEERING COMMAND |
| MILC18295 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| T07010SH6 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-391-0541
Technical Data | NSN 4010-00-391-0541
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 245 REGULAR |
| OVERALL WIDTH | 7.844 INCHES NOMINAL |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 2.000 INCHES NOMINAL |
| SPECIAL FEATURES | ALSO LINKS 12.000 IN. LG BY 7.750 IN. W,12.250 IN. LG BY 7.562 IN. W,12.250 IN. LG BY 7.625 IN. W,12.500 IN. LG BY 7.625 IN. W,LINK 12.000 IN. BY 7.844 IN. ASSEMBLED W/TAPERED PIN PEENED,ALL OTHERS ASSEMBLED W/ONE RIVET |
| NONDEFINITIVE SPEC/STD DATA | 2 GROUP |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE EXTRA LONG REFERENCE NUMBER |
| EXTRA LONG REFERENCE NUMBER | 620661TABLES1-4-1-5-1-6-1-7-1-8MA RKJL2 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC18295 |
| MANUFACTURERS CODE | 80091 |
| DESIGN CONTROL REFERENCE | 620661TABLES1-4-1-5-1-6-1-7-1-8- |
Restrictions/Controls & Freight Information | NSN 4010-00-391-0541
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-391-0541
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
