NSN 4010-00-212-0438 NAS1201B10A12A, NAS1201D10A12A, 00-212-0438
Product Details | SINGLE LEG CHAIN ASSEMBLY
4010-00-212-0438 An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc..
Part Alternates: NAS1201B10A12A, NAS1201D10A12A, 4010-00-212-0438, 00-212-0438, 4010002120438, 002120438
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 25 APR 1973 | 00-212-0438 | 09765 ( CHAIN ASSEMBLY, SINGLE LEG ) |

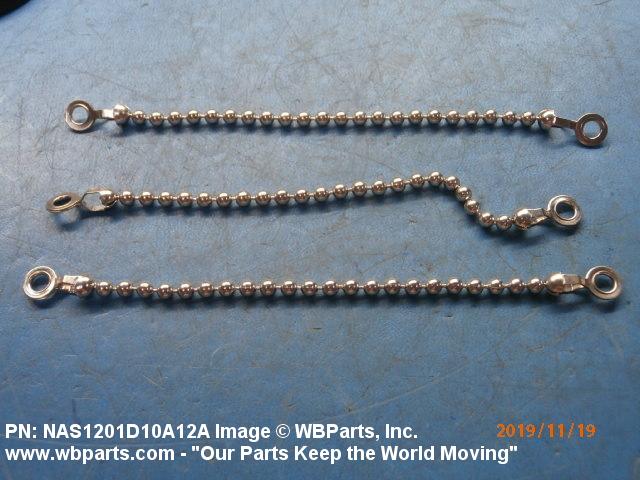

Drawings & Photos | NSN 4010-00-212-0438
Demand History | NSN 4010-00-212-0438
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-00-212-0438 | 2019-08-232 | 3 | United States |
| 4010-00-212-0438 | 2018-08-218 | 589 | DIBBS |
| 4010-00-212-0438 | 2018-07-210 | 589 | DIBBS |
| 4010-00-212-0438 | 2013-04-98 | 345 | DIBBS |
| 4010-00-212-0438 | 2010-07-210 | 67 | DIBBS |
Cross Reference | NSN 4010-00-212-0438
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1201B10A12A | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| NAS1201B10A12A | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1201B10A12A | 07679 | HARDWARE SPECIALTY CO. INC. |
| NAS1201B10A12A | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1201B10A12A | 30902 | F AND C SALES INC |
| NAS1201B10A12A | 60362 | PROCTER AND GAMBLE DISTRIBUTING CO HEALTH CARE PRODUCTS/PROFESSIONAL |
| NAS1201B10A12A | 70892 | BEAD INDUSTRIES INC |
| NAS1201B10A12A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1201D10A12A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-00-212-0438
Related Products | NSN 4010-00-212-0438
Technical Data | NSN 4010-00-212-0438
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY ALL ATTACHMENTS COPPER ALLOY CHAIN |
| SURFACE TREATMENT | CHROMIUM ALL ATTACHMENTS CHROMIUM CHAIN |
| STYLE DESIGNATOR | C13 BEAD |

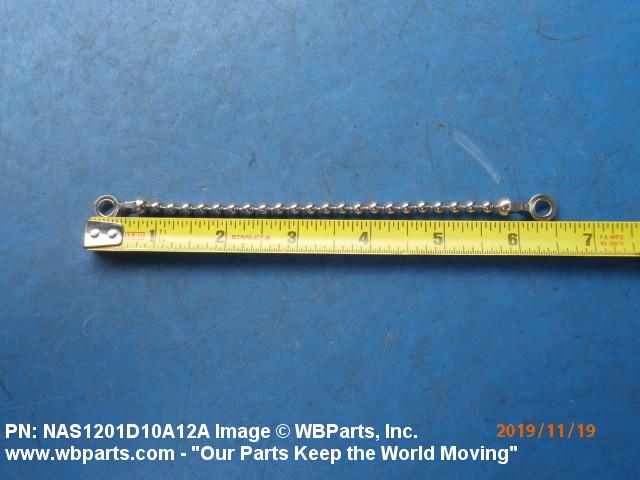

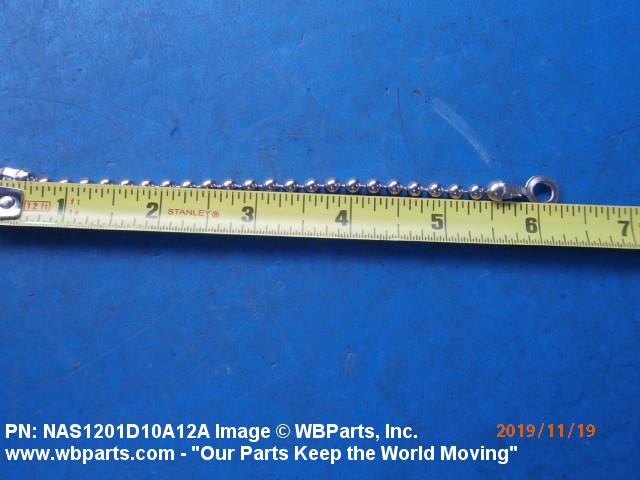

| OVERALL LENGTH | 0.500 FEET NOMINAL |

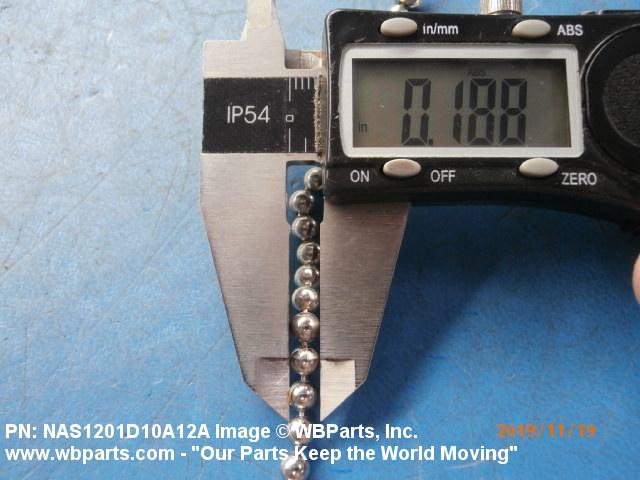

| DIAMETER | 0.190 INCHES NOMINAL BEAD |
| QUANTITY PER UNIT OF MEASURE | 50 PER FOOT |
| BREAKING STRENGTH | 45.000 POUNDS MINIMUM |
| FABRICATION METHOD | CAST OR COLD DRAWN OR FORGED OR FORMED |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |

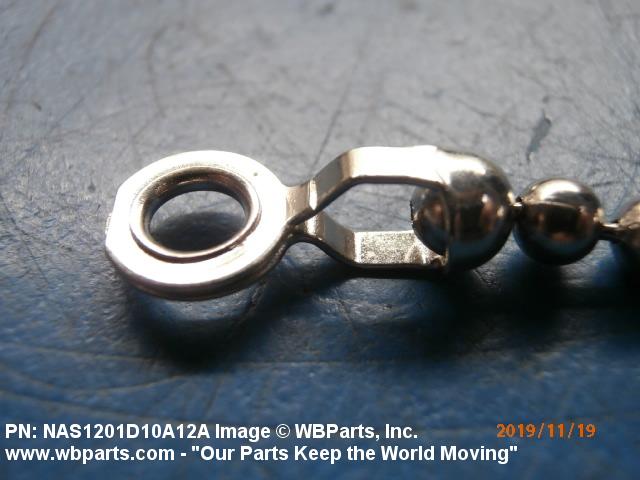

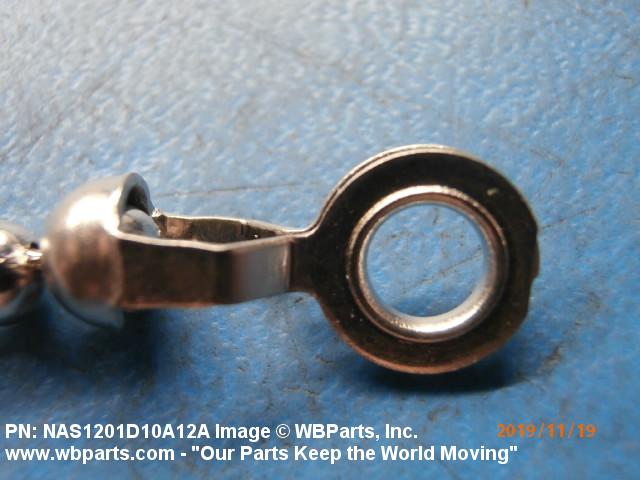

| ATTACHMENT STYLE | D38 BEAD CHAIN TERMINAL ATTACHMENT FIRST END D38 BEAD CHAIN TERMINAL ATTACHMENT SECOND END |
| SPECIFICATION/STANDARD DATA | 80205-NAS1201 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4010-00-212-0438
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094040 | CHAINS NOI BRASS/BRONZE/COPPER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-212-0438
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
