NSN 4010-00-190-6891 RRC00271TYPE1GRADECCLASS4, 00-190-6891, 001906891
Product Details | SINGLE LEG CHAIN ASSEMBLY
4010-00-190-6891 An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc..
Part Alternates: RRC00271TYPE1GRADECCLASS4, 4010-00-190-6891, 00-190-6891, 4010001906891, 001906891
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-190-6891 | 09765 ( CHAIN ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-00-190-6891
Cross Reference | NSN 4010-00-190-6891
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRC00271TYPE1GRADECCLASS4 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-00-190-6891
Related Products | NSN 4010-00-190-6891
Technical Data | NSN 4010-00-190-6891
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL ALL ATTACHMENTS STEEL CHAIN |
| SURFACE TREATMENT | ZINC ALL ATTACHMENTS ZINC CHAIN |

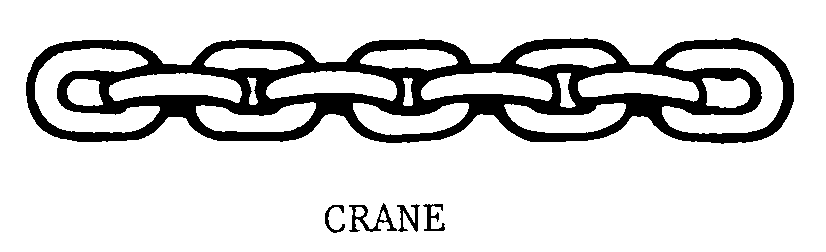

| STYLE DESIGNATOR | C20 CRANE |
| OVERALL LENGTH | 90.000 FEET NOMINAL |
| DIAMETER | 1.000 INCHES NOMINAL STOCK |
| BREAKING STRENGTH | 62000.000 POUNDS NOMINAL |
| FABRICATION METHOD | FORGED |
| END TYPE | PLAIN BOTH ENDS |

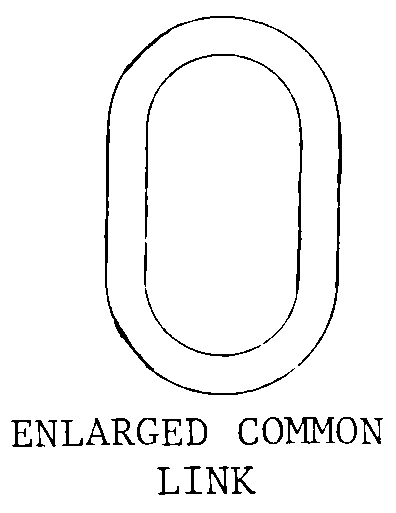

| ATTACHMENT STYLE | D85 ENLARGED COMMON LINK TERMINAL ATTACHMENT FIRST END |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 CLASS AND C GRADE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RRC00271TYPE1GRADECCLASS4 |
Restrictions/Controls & Freight Information | NSN 4010-00-190-6891
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-190-6891
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SO : Shot |
