NSN 4010-00-185-0218 RRW410, 00-185-0218, 001850218
Product Details | WIRE ROPE
4010-00-185-0218 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Part Alternates: RRW410, 4010-00-185-0218, 00-185-0218, 4010001850218, 001850218
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-185-0218 | 30295 ( ROPE, WIRE ) |
Drawings & Photos | NSN 4010-00-185-0218
Cross Reference | NSN 4010-00-185-0218
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRW410 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-185-0218
Technical Data | NSN 4010-00-185-0218
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL IMPROVED PLOW STRAND |
| SURFACE TREATMENT | ZINC OVERALL |
| CORE CONSTRUCTION | FIBER |

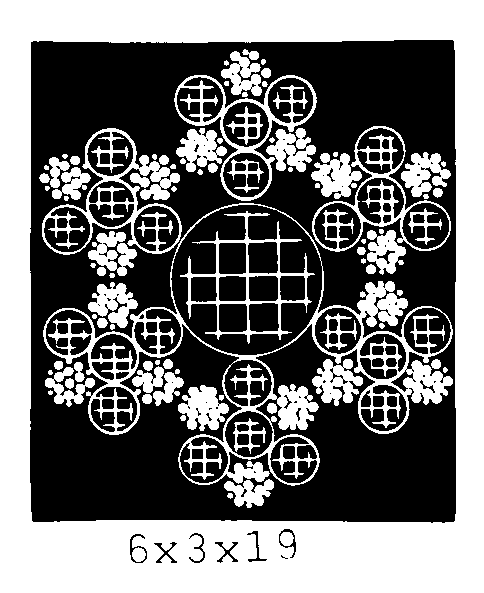

| STYLE DESIGNATOR | A110 6 X 3 X 19 |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 600.000 FEET NOMINAL |
| DIAMETER | 1.125 INCHES MINIMUM AND 1.172 INCHES MAXIMUM ROPE |
| BREAKING STRENGTH | 43100.000 POUNDS MINIMUM |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 5 CLASS AND 2 CONSTRUCTION |
| III END ITEM IDENTIFICATION | MARINE/CABLES |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RRW410 |
Restrictions/Controls & Freight Information | NSN 4010-00-185-0218
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107520 | WIRE ROPE/STRAND I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-185-0218
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RL : Reel |
