NSN 3990-01-168-2363 S2700921608, S2700-921608, 01-168-2363
Product Details | MATERIAL HANDLING SKIP BOX
3990-01-168-2363 A rectangular receptacle designed for loading and unloading cargo on and off ships. The sides and/or ends may be hinged or removable to facilitate loading and unloading. It is usually mounted on stringers to permit handling by forklift trucks. Slings or bridles may be provided for hoisting.
Part Alternates: S2700921608, S2700-921608, 3990-01-168-2363, 01-168-2363, 3990011682363, 011682363
Materials Handling Equipment | Miscellaneous Materials Handling Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 14 DEC 1983 | 01-168-2363 | 06194 ( SKIP BOX, MATERIAL HANDLING ) |

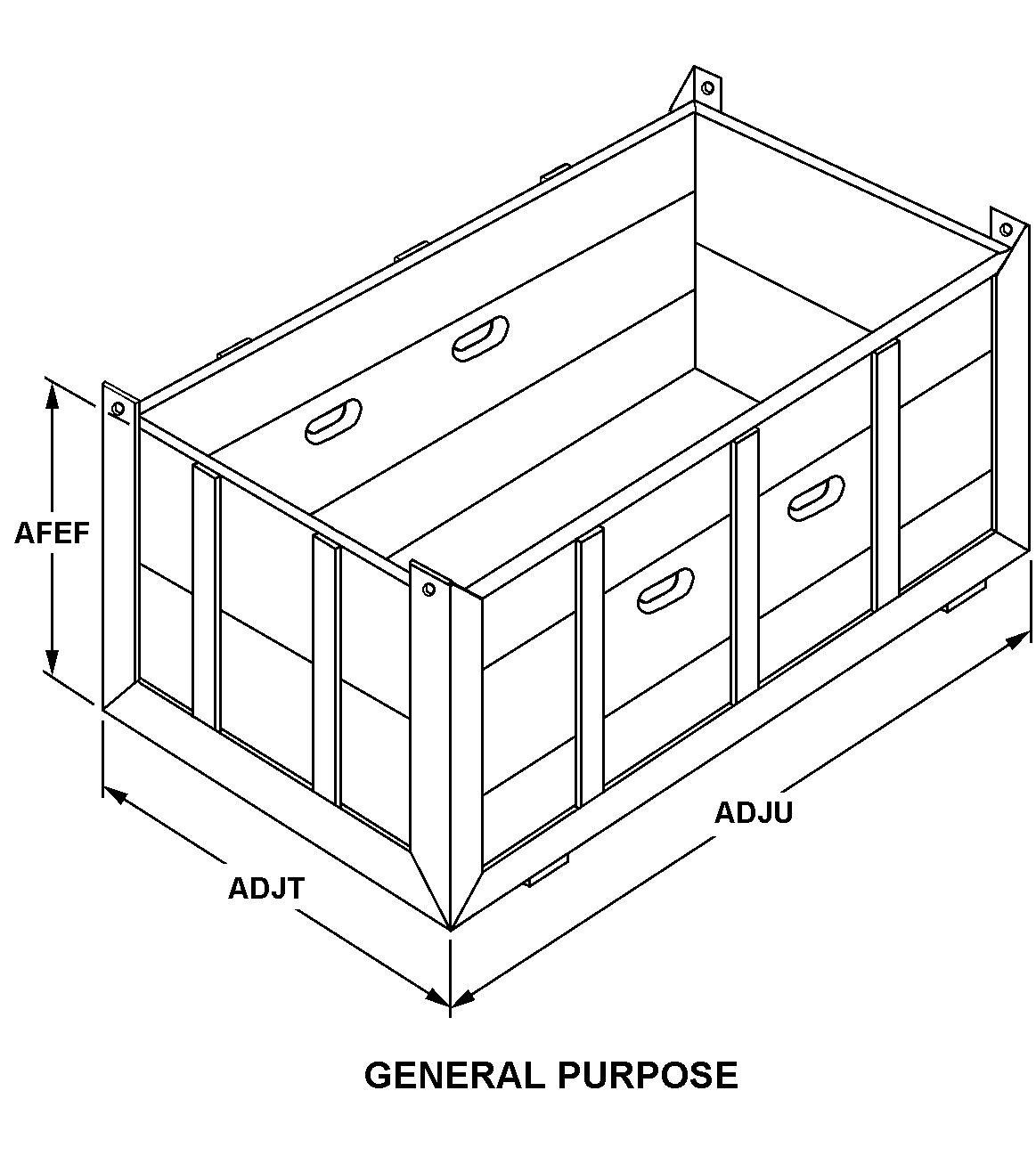

Drawings & Photos | NSN 3990-01-168-2363
Cross Reference | NSN 3990-01-168-2363
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S2700-921608 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3990-01-168-2363
Technical Data | NSN 3990-01-168-2363
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | Q1 GENERAL PURPOSE |
| INSIDE LENGTH | 60.500 INCHES NOMINAL |
| INSIDE WIDTH | 42.500 INCHES NOMINAL |
| INSIDE DEPTH | 28.375 INCHES NOMINAL |
| MATERIAL | STEEL AND WOOD |
| HANDLING FACILITY TYPE | SKID AND SLING |
| ASSEMBLY METHOD | BOLTED |
| REINFORCEMENT METHOD | METAL TRIM |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | S2700-921608 |
Restrictions/Controls & Freight Information | NSN 3990-01-168-2363
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 029800 | BOXES R CRATES WOODEN |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 691 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3990-01-168-2363
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
