NSN 3990-00-962-1598 SN30238, SN3023-8, MILB43159
Product Details | TOTE BOX
3990-00-962-1598 A reusable box, usually rectangular in shape which may have a lid. It may be collapsible and capable of being nested and/or stacked. It is not compartmented but may have dividers or insert tray(s). It is designed for manual material handling operations to facilitate the collection and movement of miscellaneous items within warehouses, maintenance shops, and stores. Excludes BOX (1), SHIPPING. See also BOX (3), SMALL PARTS.
Part Alternates: SN30238, SN3023-8, MILB43159, MIL-B-43159, 6878, 687-8, 3990-00-962-1598, 00-962-1598, 3990009621598, 009621598
Materials Handling Equipment | Miscellaneous Materials Handling Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1962 | 00-962-1598 | 27388 ( BOX, TOTE ) |

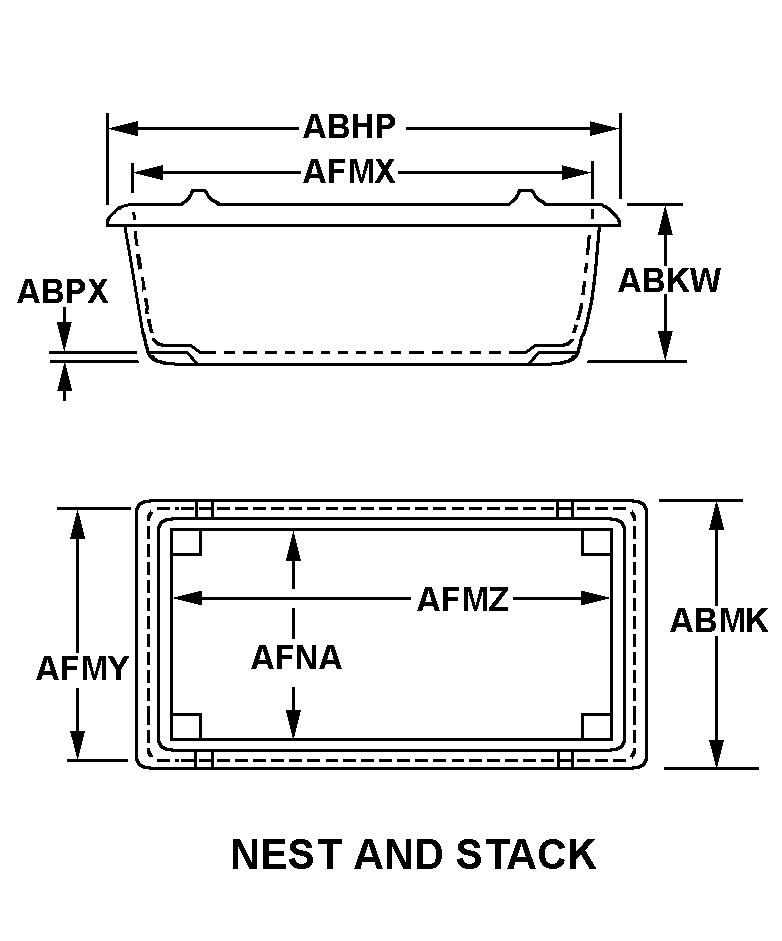

Drawings & Photos | NSN 3990-00-962-1598
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3990-00-962-1598
Related Products | NSN 3990-00-962-1598
Technical Data | NSN 3990-00-962-1598
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | E3 NEST AND STACK |
| OVERALL LENGTH | 32.000 INCHES NOMINAL |
| OVERALL WIDTH | 24.000 INCHES NOMINAL |
| OVERALL HEIGHT | 8.000 INCHES NOMINAL |
| TOP INSIDE LENGTH | 29.000 INCHES NOMINAL |
| TOP INSIDE WIDTH | 21.000 INCHES NOMINAL |
| BOTTOM INSIDE LENGTH | 27.250 INCHES NOMINAL |
| BOTTOM INSIDE WIDTH | 19.250 INCHES NOMINAL |
| MATERIAL THICKNESS | ANY ACCEPTABLE |
| MATERIAL | PLASTIC, L-P-1183, TYPE 3 |
| EXTERIOR COLOR | GRAY |
| INTERIOR COLOR | GRAY |
| ASSEMBLY FORM | SET-UP |
| STACKING FEATURE | YES |
| NESTING FEATURE | YES |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SIZE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-43159 |
Restrictions/Controls & Freight Information | NSN 3990-00-962-1598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 112360 | BOX/CRATE/DRUM MATERIAL WOODEN |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 691 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3990-00-962-1598
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
