NSN 3950-00-989-4257 LTP2200B , LTP2200LB, LTP2200LB16
Product Details | CHAIN HOIST
3950-00-989-4257 A device designed to be suspended above deck, floor or ground level having one or more revolving whelped wheels over which a chain is passed for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Part Alternates: LTP2200B , LTP2200LB, LTP2200LB16, LTP2200LB-16, LTP82507400, LTP825-07400, THLK6279D324MM, 3950-00-989-4257, 00-989-4257, 3950009894257, 009894257
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 27 FEB 1970 | 00-989-4257 | 04587 ( HOIST, CHAIN ) |
Drawings & Photos | NSN 3950-00-989-4257
Demand History | NSN 3950-00-989-4257
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| USA01 | 2020-10-289 | 4 | DIBBS |
| USA01 | 2020-10-278 | 4 | DIBBS |
| LTP2200B | 2020-06-155 | 4 | DIBBS |
| LTP2200B | 2019-04-93 | 4 | DIBBS |
| LTP2200B | 2019-01-24 | 5 | DIBBS |
| LTP2200B | 2019-01-13 | 5 | DIBBS |
| 3950-00-989-4257 | 2017-05-124 | 3 | DIBBS |
| 3950-00-989-4257 | 2017-03-89 | 3 | DIBBS |
| 3950-00-989-4257 | 2017-03-78 | 3 | DIBBS |
| 3950-00-989-4257 | 2016-07-196 | 3 | DIBBS |
| 3950-00-989-4257 | 2015-01-19 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3950-00-989-4257
Related Products | NSN 3950-00-989-4257
Technical Data | NSN 3950-00-989-4257
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HAND |
| MECHANICAL ADVANTAGE METHOD | SPUR GEAR |
| HOOK QUANTITY | 1 |
| LOAD ELEMENT QUANTITY PER HOOK | 1 |
| CHAIN TYPE | ROLLER LINK |
| CHAIN MATERIAL DIAMETER | 0.312 INCHES NOMINAL |
| SUSPENSION MOUNTING METHOD | TROLLEY |

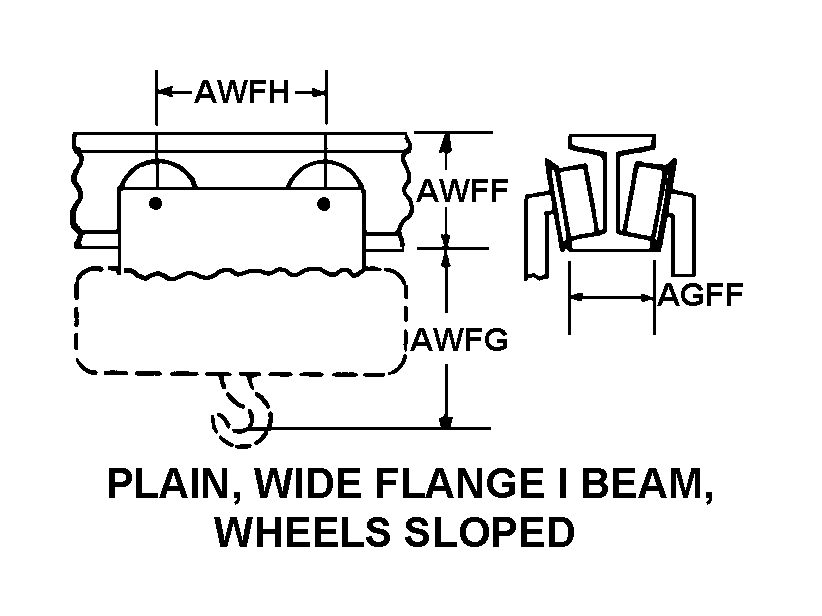

| TROLLEY SUSPENSION STYLE | 4 PLAIN, WIDE FLANGE I BEAM, WHEELS SLOPED |
| FLANGE WIDTH | 9.250 INCHES NOMINAL |
| TRACK HEIGHT | 5.000 INCHES NOMINAL |
| TRACK UNDERSIDE DISTANCE TO LOAD HOOK BEARING SURFACE IN FULLY RAISED POSITION | 11.250 INCHES NOMINAL |
| WHEEL CENTER TO CENTER DISTANCE | 11.000 INCHES NOMINAL |
| TROLLEY TYPE | PLAIN |
| MAXIMUM LIFT HEIGHT | 16.0 FEET |
| MAXIMUM LOAD RATING | 2200.0 POUNDS |
| MOUNTING POSITION | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 08722 |
| DESIGN CONTROL REFERENCE | LTP2200LB-16 |
Restrictions/Controls & Freight Information | NSN 3950-00-989-4257
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 117040 | CHAIN/PULLEY HOISTS/BLOCKS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3950-00-989-4257
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
