Product Details | WIRE ROPE HOIST
3950-00-932-7531 A device designed to be suspended above deck, floor or ground level having one or more revolving steel grooved drums around which wire rope is wound for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Part Alternates: ASME HST-4M, ASMEHST4M, MILH19925, WH1CR4P, 80P02020S241, 80P02-020S24-1, 3950-00-932-7531, 00-932-7531, 3950009327531, 009327531
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
39 | 17 FEB 1967 | 00-932-7531 | 04588 ( HOIST, WIRE ROPE ) |
Cross Reference | NSN 3950-00-932-7531
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3950-00-932-7531
Related Products | NSN 3950-00-932-7531
Technical Data | NSN 3950-00-932-7531
Characteristic | Specifications |
---|---|
OPERATION METHOD | POWERED |
PRIME MOVER TYPE | ELECTRIC MOTOR |
PRIME MOVER QUANTITY | 1 |
CURRENT TYPE | AC |
VOLTAGE IN VOLTS | 220.0 |
FREQUENCY IN HERTZ | 60.0 |
PHASE | THREE |
DUTY CYCLE | INTERMITTENT |
INCLOSURE TYPE | FULLY INCLOSED |
ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
COOLING METHOD | NON VENTILATED |
POWER REQUIREMENT RATING | 4.00 HORSEPOWER |
LOAD LIMIT AT SELECTED SPEED AND DRUM LOCATION | 4000.0 POUNDS SINGLE SPEED FIRST DRUM |
TRAVEL RATE PER MINUTE | 10.0 FEET AND 20.0 FEET AND 30.0 FEET AND 40.0 FEET |
MECHANICAL ADVANTAGE METHOD | SPUR GEAR |
BRAKING METHOD | ELECTRIC |
HOOK QUANTITY | 1 |
LOAD ELEMENT QUANTITY PER HOOK | 4 |
SUSPENSION MOUNTING METHOD | TROLLEY |

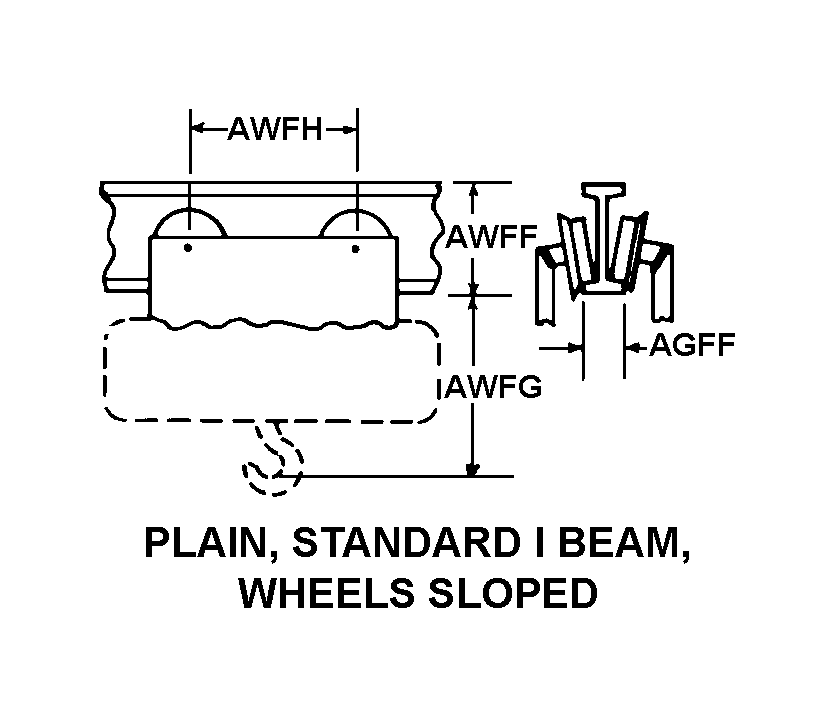

TROLLEY SUSPENSION STYLE | 2 PLAIN, STANDARD I BEAM, WHEELS SLOPED |
FLANGE WIDTH | 4.000 INCHES MINIMUM AND 7.000 INCHES MAXIMUM |
TRACK HEIGHT | 8.000 INCHES MINIMUM AND 24.000 INCHES MAXIMUM |
TRACK UNDERSIDE DISTANCE TO LOAD HOOK BEARING SURFACE IN FULLY RAISED POSITION | 16.500 INCHES NOMINAL |
WHEEL CENTER TO CENTER DISTANCE | ANY ACCEPTABLE |
TROLLEY TYPE | PLAIN |
MAXIMUM LIFT HEIGHT | 20.0 FEET |
MOUNTING POSITION | PARALLEL |
FURNISHED ITEMS AND QUANTITY | 1 MOTOR CONTROLLER |
