NSN 3950-00-830-0320 EL4751, EL475-1, EL4752
Product Details | CAPSTAN
3950-00-830-0320 A mechanical device containing a revolving head or spool, vertically mounted, around which one or more turns of rope must be taken for exerting pulling power. The capstan may contain an auxiliary head or spool.
Part Alternates: EL4751, EL475-1, EL4752, EL475-2, 3950-00-830-0320, 00-830-0320, 3950008300320, 008300320
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1963 | 00-830-0320 | 04586 ( CAPSTAN ) |
Drawings & Photos | NSN 3950-00-830-0320
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3950-00-830-0320
Related Products | NSN 3950-00-830-0320
Technical Data | NSN 3950-00-830-0320
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | POWER |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| PRIME MOVER QUANTITY | 1 |
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 230.0 |
| DUTY CYCLE | INTERMITTENT |
| INCLOSURE TYPE | FULLY INCLOSED |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| COOLING METHOD | SELF-VENTILATED |
| POWER REQUIREMENT RATING | 15.00 HORSEPOWER |
| CAPSTAN SPOOL MOUNTING POSITION | VERTICAL |

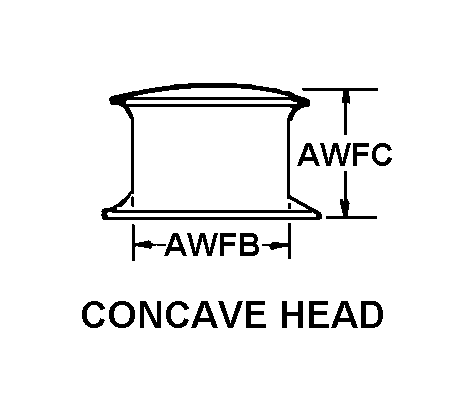

| CAPSTAN SPOOL STYLE | 5 CONCAVE HEAD |
| LARGEST DIAMETER AND LOCATION | 24.000 INCHES NOMINAL FIRST SPOOL |
| OVERALL LENGTH AND LOCATION | 31.250 INCHES NOMINAL FIRST SPOOL |
| CAPSTAN SPOOL SURFACE DESIGN | PLAIN |
| CAPSTAN SPOOL QUANTITY | 1 |
| LOAD LIMIT AT SELECTED SPEED AND DRUM LOCATION | 12000.0 POUNDS SINGLE SPEED FIRST DRUM |
| TRAVEL RATE PER MINUTE | 35.0 FEET |
| BRAKING METHOD | ELECTRIC |
| MANUFACTURERS CODE | 30177 |
| DESIGN CONTROL REFERENCE | EL475-2 |
