NSN 3950-00-493-1683 J3BG3 1-2T0N, J3BG312T0N, 00-493-1683
Product Details | WIRE ROPE HOIST
3950-00-493-1683 A device designed to be suspended above deck, floor or ground level having one or more revolving steel grooved drums around which wire rope is wound for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Part Alternates: J3BG3 1-2T0N, J3BG312T0N, 3950-00-493-1683, 00-493-1683, 3950004931683, 004931683
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 23 MAR 1972 | 00-493-1683 | 04588 ( HOIST, WIRE ROPE ) |
Drawings & Photos | NSN 3950-00-493-1683
Cross Reference | NSN 3950-00-493-1683
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J3BG3 1-2T0N | 92053 | R AND M MATERIALS HANDLING INC HOIST DIV OF KONE MATERIALS HANDLING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3950-00-493-1683
Related Products | NSN 3950-00-493-1683
Technical Data | NSN 3950-00-493-1683
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | POWER |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| PRIME MOVER QUANTITY | 1 |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 208.0 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE |
| DUTY CYCLE | CONTINUOUS |
| INCLOSURE TYPE | FULLY INCLOSED |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| COOLING METHOD | AIR TO AIR COOLED |
| POWER REQUIREMENT RATING | ANY ACCEPTABLE |
| LOAD LIMIT AT SELECTED SPEED AND DRUM LOCATION | 7000.0 POUNDS SINGLE SPEED FIRST DRUM |
| TRAVEL RATE PER MINUTE | 9.0 FEET |
| MECHANICAL ADVANTAGE METHOD | DIFFERENTIAL |
| BRAKING METHOD | ELECTRIC |
| HOOK QUANTITY | 1 |
| LOAD ELEMENT QUANTITY PER HOOK | 1 |
| SUSPENSION MOUNTING METHOD | TROLLEY |

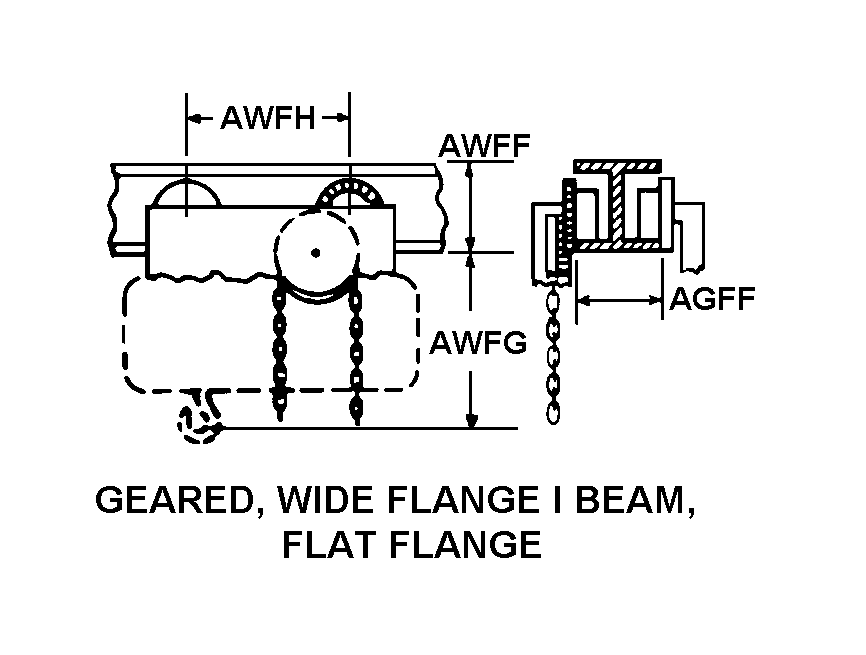

| TROLLEY SUSPENSION STYLE | 12 GEARED, WIDE FLANGE I BEAM, FLAT FLANGE |
| FLANGE WIDTH | 5.500 INCHES MAXIMUM |
| TRACK HEIGHT | 7.000 INCHES MINIMUM AND 15.000 INCHES MAXIMUM |
| TRACK UNDERSIDE DISTANCE TO LOAD HOOK BEARING SURFACE IN FULLY RAISED POSITION | ANY ACCEPTABLE |
| WHEEL CENTER TO CENTER DISTANCE | 6.000 INCHES NOMINAL |
| TROLLEY TYPE | HAND GEARED |
| MAXIMUM LIFT HEIGHT | 20.0 FEET |
| MAXIMUM LOAD RATING | 7000.0 POUNDS |
| MOUNTING POSITION | PARALLEL |
| FURNISHED ITEMS AND QUANTITY | 1 PULLEY AND 1 REMOTE CONTROL |
| MANUFACTURERS CODE | 92053 |
| DESIGN CONTROL REFERENCE | J3BG3 1-2T0N |
Restrictions/Controls & Freight Information | NSN 3950-00-493-1683
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 117040 | CHAIN/PULLEY HOISTS/BLOCKS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3950-00-493-1683
Air Force| Category | Code | Description |
|---|---|---|
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
