NSN 3950-00-160-1410 10056201, 100562-01, 00-160-1410
Product Details | CAPSTAN
3950-00-160-1410 A mechanical device containing a revolving head or spool, vertically mounted, around which one or more turns of rope must be taken for exerting pulling power. The capstan may contain an auxiliary head or spool.
Part Alternates: 10056201, 100562-01, 3950-00-160-1410, 00-160-1410, 3950001601410, 001601410
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 20 OCT 1971 | 00-160-1410 | 04586 ( CAPSTAN ) |
Drawings & Photos | NSN 3950-00-160-1410
Cross Reference | NSN 3950-00-160-1410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100562-01 | 32097 | DDC PERTEC PERIPHERALS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3950-00-160-1410
Technical Data | NSN 3950-00-160-1410
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HAND |
| CAPSTAN SPOOL MOUNTING POSITION | VERTICAL |

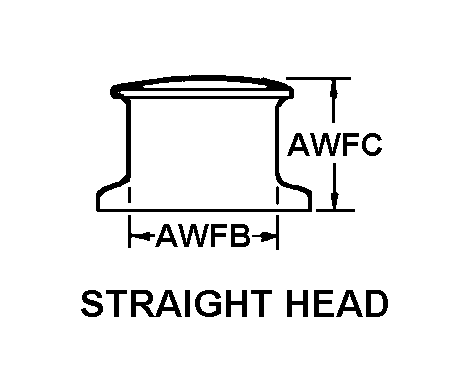

| CAPSTAN SPOOL STYLE | 4 STRAIGHT HEAD |
| LARGEST DIAMETER AND LOCATION | 1.437 INCHES NOMINAL FIRST SPOOL |
| OVERALL LENGTH AND LOCATION | 0.531 INCHES NOMINAL FIRST SPOOL |
| CAPSTAN SPOOL SURFACE DESIGN | PLAIN |
| CAPSTAN SPOOL QUANTITY | 1 |
Restrictions/Controls & Freight Information | NSN 3950-00-160-1410
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116440 | CAPSTANS/WINCHES/WINDLASSES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3950-00-160-1410
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
