NSN 3950-00-141-7193 00-141-7193, 001417193
Product Details | WIRE ROPE HOIST
3950-00-141-7193 A device designed to be suspended above deck, floor or ground level having one or more revolving steel grooved drums around which wire rope is wound for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Part Alternates: 3950-00-141-7193, 00-141-7193, 3950001417193, 001417193
Materials Handling Equipment | Winches, Hoists, Cranes, and Derricks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1963 | 00-141-7193 | 04588 ( HOIST, WIRE ROPE ) |
Drawings & Photos | NSN 3950-00-141-7193
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3950-00-141-7193
Related Products | NSN 3950-00-141-7193
Technical Data | NSN 3950-00-141-7193
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | POWER |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| PRIME MOVER QUANTITY | 1 |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 220.0 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE |
| DUTY CYCLE | INTERMITTENT |
| INCLOSURE TYPE | FULLY INCLOSED |
| ENVIRONMENTAL PROTECTION | FUNGUS RESISTANT |
| COOLING METHOD | ANY ACCEPTABLE |
| POWER REQUIREMENT RATING | ANY ACCEPTABLE |
| HOOK QUANTITY | 1 |
| LOAD ELEMENT QUANTITY PER HOOK | 1 |
| SUSPENSION MOUNTING METHOD | TROLLEY |

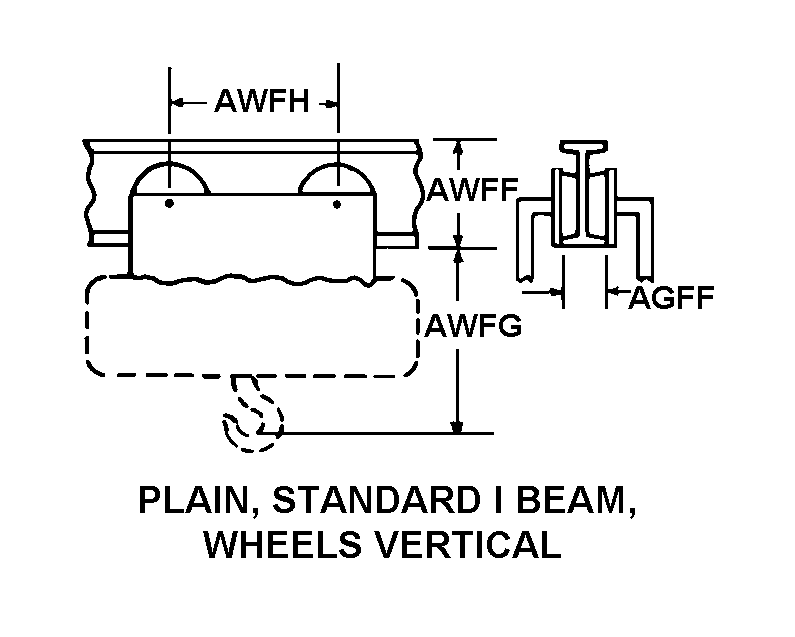

| TROLLEY SUSPENSION STYLE | 1 PLAIN, STANDARD I BEAM, WHEELS VERTICAL |
| FLANGE WIDTH | 3.330 INCHES MINIMUM AND 4.660 INCHES MAXIMUM |
| TRACK HEIGHT | ANY ACCEPTABLE |
| TRACK UNDERSIDE DISTANCE TO LOAD HOOK BEARING SURFACE IN FULLY RAISED POSITION | 25.000 INCHES NOMINAL |
| WHEEL CENTER TO CENTER DISTANCE | ANY ACCEPTABLE |
| TROLLEY TYPE | PLAIN |
| MAXIMUM LIFT HEIGHT | 20.0 FEET |
| MOUNTING POSITION | ANY ACCEPTABLE |
| SPECIAL FEATURES | SPUR GEAR TYPE; 2 OR 4 LOAD ROPES; 1000.0 LBS MAXIMUM LOAD CAPACITY; 17.0 TO 18.0 FT H OF LIFT; 20.0 TO 24.0 FT PER MINUTE MAXIMUM HOISTING SPEED |
Restrictions/Controls & Freight Information | NSN 3950-00-141-7193
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 117040 | CHAIN/PULLEY HOISTS/BLOCKS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3950-00-141-7193
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | W | RESTRICTED REQUISITIONING-SPECIAL INSTRUCTIONS APPLY (NON-STOCKED ITEMS) Indicates stock number has been assigned to a generic item for use in bid invitations, allowance lists, etc., against which no stocks are ever recorded. Requisitions will be submitted only in accordance with IMM/Service requisitioning procedures. (This code will be used, when applicable, in conjunction with Phrase Code S (Stock as NSN(s)). It is considered applicable for use when a procurement source(s) becomes available. The Phrase Code S and the applicable stock as? NSN(s) will then be applied for use in stock, store and issue actions.) |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
