NSN 3940-01-505-3958 EE1802TX20, EE1-802TX20, 01-505-3958
Product Details | EYE SLING
3940-01-505-3958 An item made of strap, rope, webbing, or the like, specifically designed to hold securely something being hoisted, lowered, carried, dropped, or suspended. These items are characterized by a loop or eye at both ends. Excludes items of a single lentgth of material with fittings. See also WIRE ROPE ASSEMBLY, SINGLE LEG; FIBER ROPE ASSEMBLY, SINGLE LEG; and STRAP (as modified).
Part Alternates: EE1802TX20, EE1-802TX20, 3940-01-505-3958, 01-505-3958, 3940015053958, 015053958
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 06 MAR 2003 | 01-505-3958 | 40120 ( SLING, EYE ) |
Drawings & Photos | NSN 3940-01-505-3958
Cross Reference | NSN 3940-01-505-3958
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EE1-802TX20 | 23755 | LIFT-ALL COMPANY INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-01-505-3958
Technical Data | NSN 3940-01-505-3958
| Characteristic | Specifications |
|---|---|
| SLING MATERIAL TYPE | WEB STRAP |

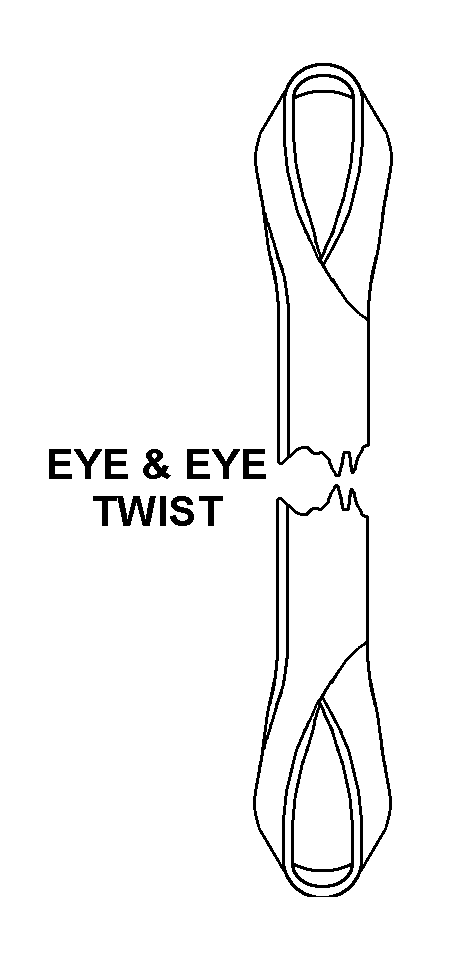

| STYLE DESIGNATOR | 2 EYE AND EYE TWIST |
| OVERALL LENGTH | 240.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| LIFTING CAPACITY | 25000.000 POUNDS |
| SPECIAL FEATURES | LIFITING CAPACITY DEPENDS ON LIFTING CONFIGURATION; STRAI |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | V-22 SUPPORT EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 3940-01-505-3958
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107520 | WIRE ROPE/STRAND I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-01-505-3958
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | V2 | MV-22 aircraft |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
