NSN 3940-01-498-9634 23039441, 23070790 PC 23039441, 23070790PC23039441
Product Details | HOISTING ADAPTER
3940-01-498-9634 An item usually rigid in construction designed to be attached to another item to adapt it to an eye, ring, loop, or the like, for hoisting. For items designed to be used for hoisting and also provide accommodations for adapting a jack to an aircraft jacking point, see ADAPTER, AIRCRAFT JACKING POINT. Excludes BOLT, EYE; and SLING (as modified).
Part Alternates: 23039441, 23070790 PC 23039441, 23070790PC23039441, 3940-01-498-9634, 01-498-9634, 3940014989634, 014989634
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
39 | 09 JUL 2002 | 01-498-9634 | 30555 ( ADAPTER, HOISTING ) |
Demand History | NSN 3940-01-498-9634
Part Number | Request Date | QTY | Origin |
---|---|---|---|
23039441 | 2024-09-248 | 12 | DIBBS |
23039441 | 2024-06-155 | 7 | DIBBS |
23039441 | 2023-12-354 | 10 | DIBBS |
3940-01-498-9634 | 2023-06-172 | 3 | United States |
23039441 | 2022-09-258 | 11 | DIBBS |
23039441 | 2021-01-13 | 10 | DIBBS |
23039441 | 2019-04-97 | 12 | DIBBS |
3940-01-498-9634 | 2017-03-74 | 10 | DIBBS |
3940-01-498-9634 | 2016-05-137 | 8 | DIBBS |
3940-01-498-9634 | 2016-05-124 | 8 | DIBBS |
3940-01-498-9634 | 2016-01-06 | 2 | DIBBS |
3940-01-498-9634 | 2015-12-341 | 2 | DIBBS |
3940-01-498-9634 | 2013-07-195 | 15 | DIBBS |
3940-01-498-9634 | 2012-08-244 | 8 | DIBBS |
3940-01-498-9634 | 2012-02-39 | 4 | DIBBS |
23039441 | 2012-01-30 | 1 | US |
3940-01-498-9634 | 2011-12-342 | 5 | DIBBS |
3940-01-498-9634 | 2010-10-302 | 9 | DIBBS |
3940-01-498-9634 | 2010-10-294 | 2 | DIBBS |
3940-01-498-9634 | 2010-07-210 | 3 | DIBBS |
3940-01-498-9634 | 2010-07-187 | 1 | DIBBS |
3940-01-498-9634 | 2010-06-168 | 1 | DIBBS |
3940-01-498-9634 | 2010-06-167 | 1 | DIBBS |
3940-01-498-9634 | 2010-01-30 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3940-01-498-9634
Related Products | NSN 3940-01-498-9634
Technical Data | NSN 3940-01-498-9634
Characteristic | Specifications |
---|---|
MATERIAL | STEEL, ASTM A36 |
SURFACE TREATMENT | NICKEL PLATED |

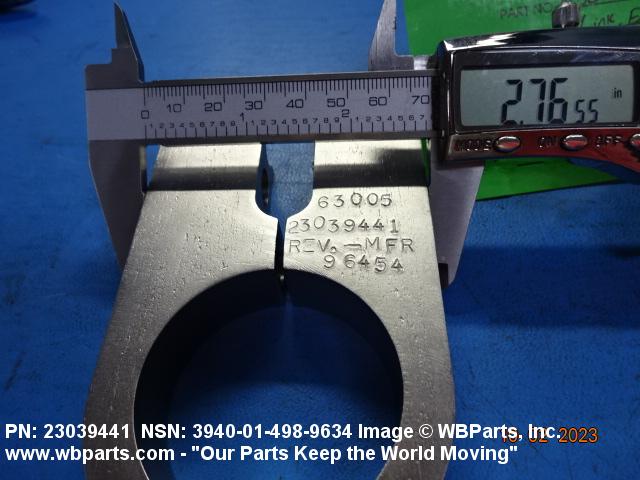

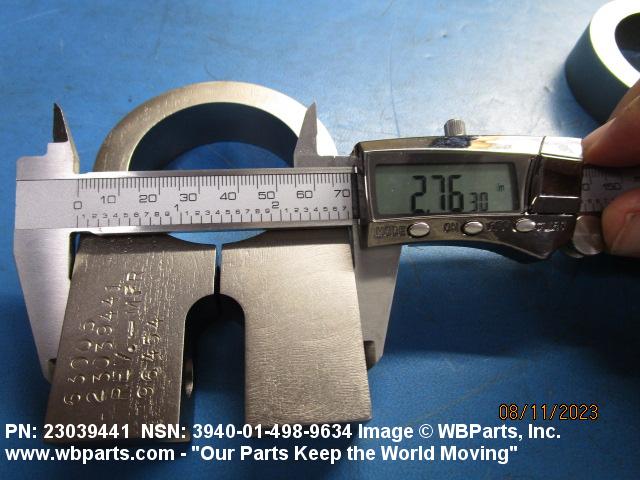

OVERALL LENGTH | 2.760 INCHES NOMINAL |

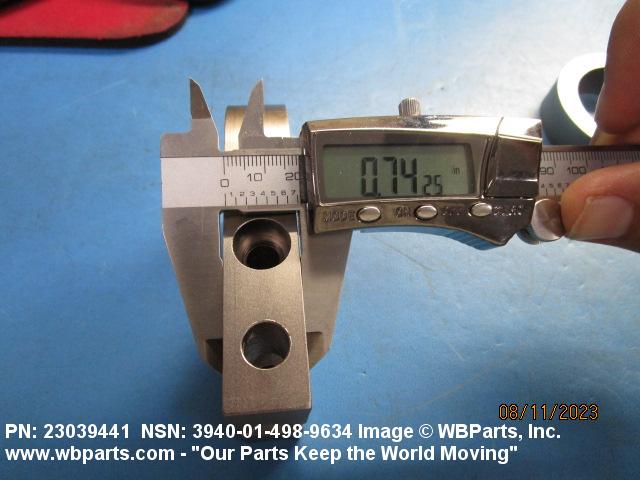

OVERALL WIDTH | 0.750 INCHES NOMINAL |

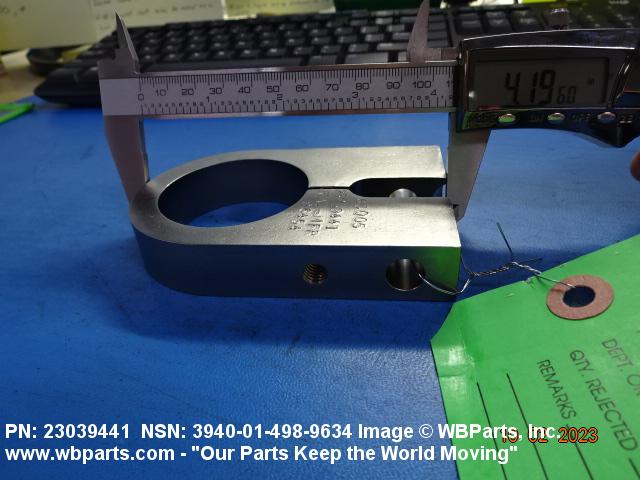

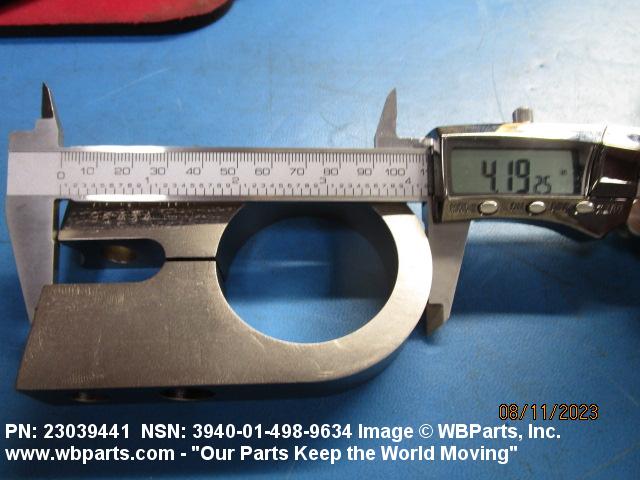

OVERALL HEIGHT | 4.190 INCHES NOMINAL |
USAGE DESIGN | AIRCRAFT ENGINE ACCESSORY |
ATTACHMENT METHOD | BOLTED AND HOLE |

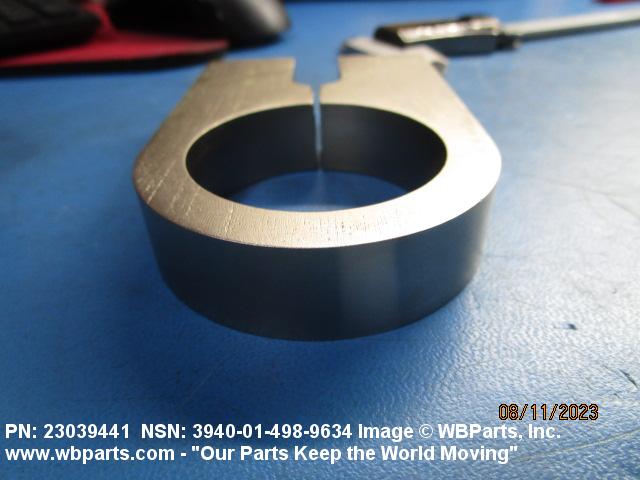

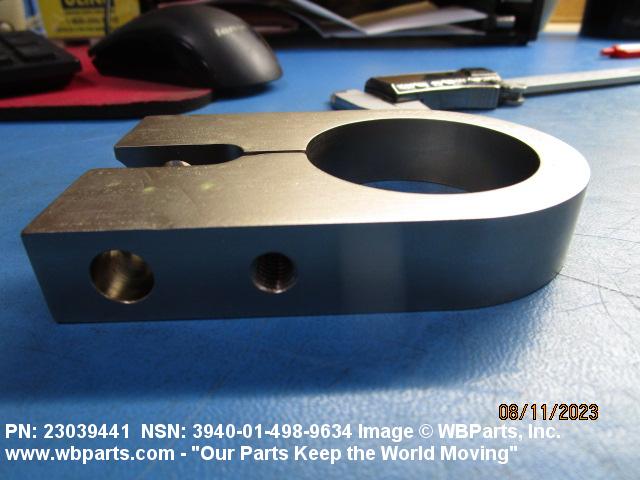

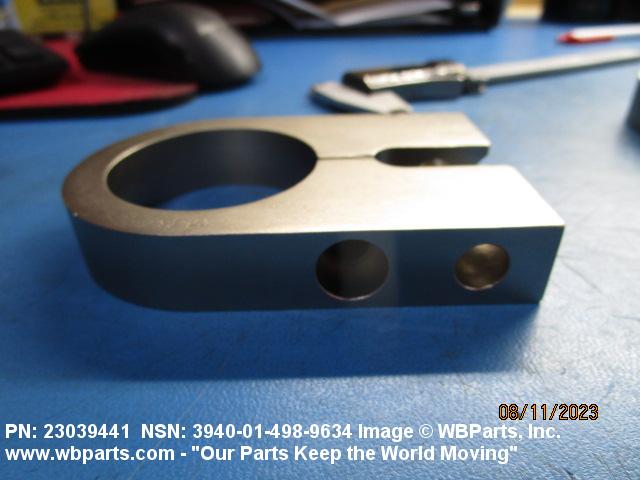

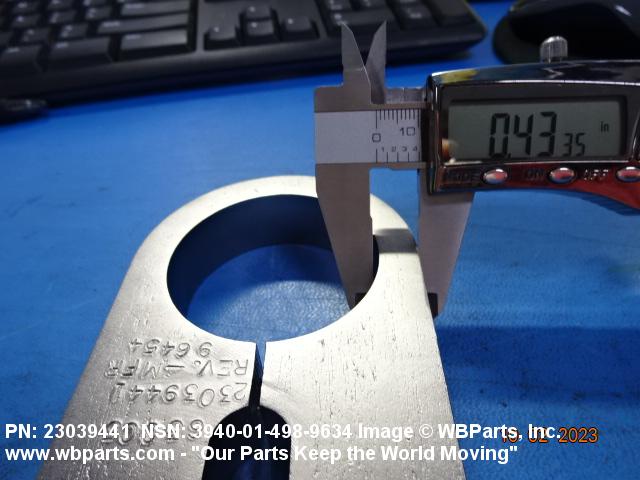

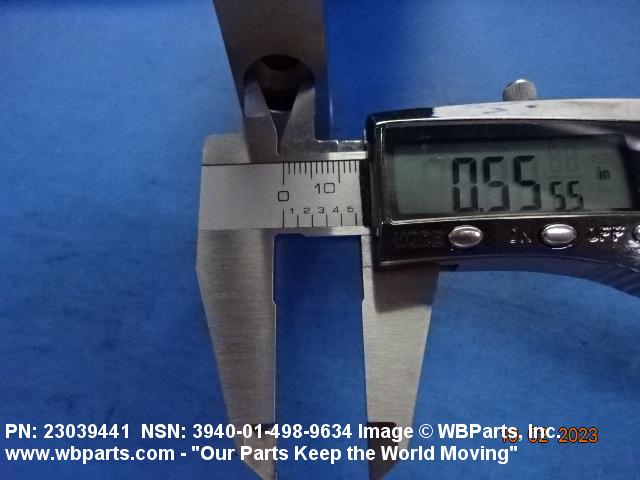

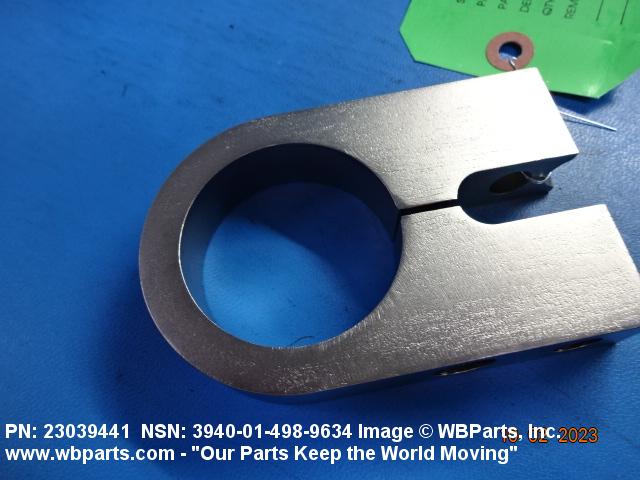

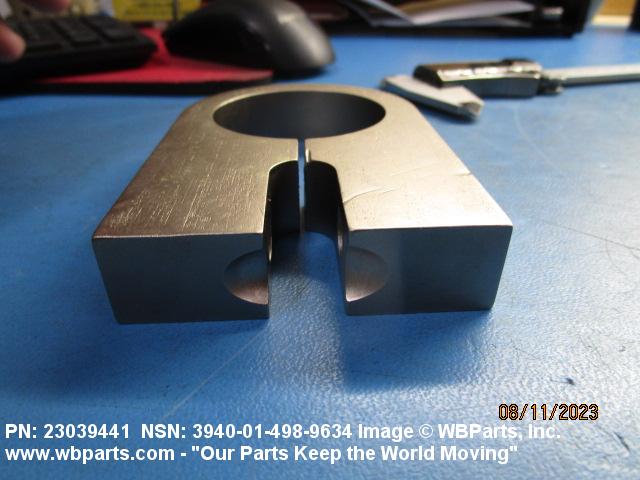

SPECIAL FEATURES | PART IS RECTANGULAR AT THE TOP WITH A SLOT 0.560 W X 1.250 L ON CENTER LINE; BOTTOM HAS A 2.760 DIAMETER CUT OUT CENTERED 2.810 INCHES FROM TOP; PART IS ROUNDED OFF ON THE OUTSIDE OF THE BOTTOM HALF OF THIS CIRCULAR CUTOUT, LEAVING A WALL 0.750 IN THICK; 2 HOLES ARE DRILLED THRU FROM THE SIDE, ONE 0.342-0.352 TAP DRILLED THRU, C'BORED 0.56X0.38 DEEP, THREADED 0.3125-18UNC-28 TAP THRU, 1.405 INCH FROM TOP; THE OTHER 0.405-0.415 THRU, 0.560 INCH FROM TOP |

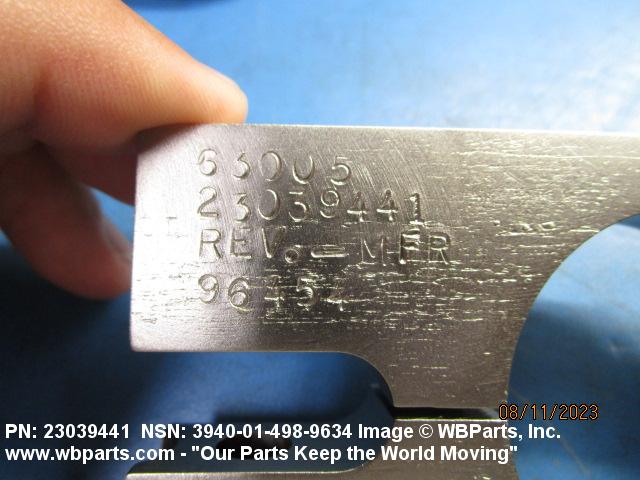

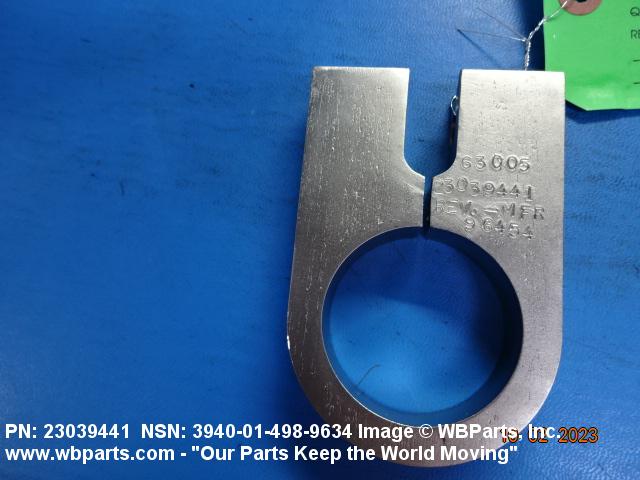

III SUPPLEMENTARY FEATURES | CAGE CALLS THIS: LINK, ENGINE LIFT FIXTURE |
III END ITEM IDENTIFICATION | ENGINE ASSEMBLY, GAS |
Restrictions/Controls & Freight Information | NSN 3940-01-498-9634
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 095190 | HARDWARE, NOI |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 72E | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-01-498-9634
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
