NSN 3940-00-076-9001 10917959, 00-076-9001, 000769001
Product Details | BLOCK AND TACKLE
3940-00-076-9001 A mechanical device consisting of one or more tackle blocks with lines, arranged for hoisting or pulling.
Part Alternates: 10917959, 3940-00-076-9001, 00-076-9001, 3940000769001, 000769001
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1963 | 00-076-9001 | 11446 ( BLOCK AND TACKLE ) |

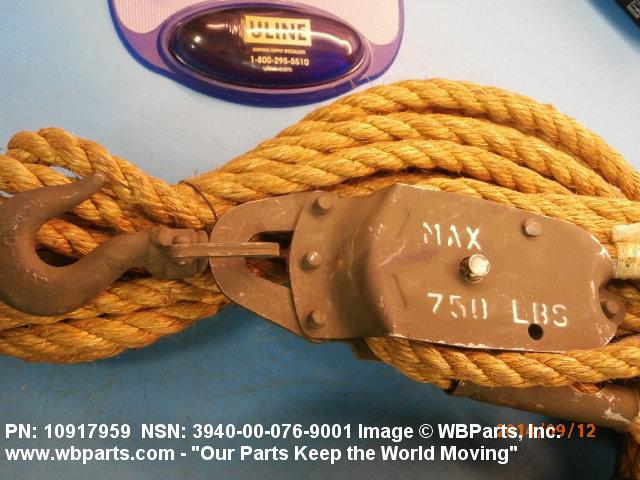

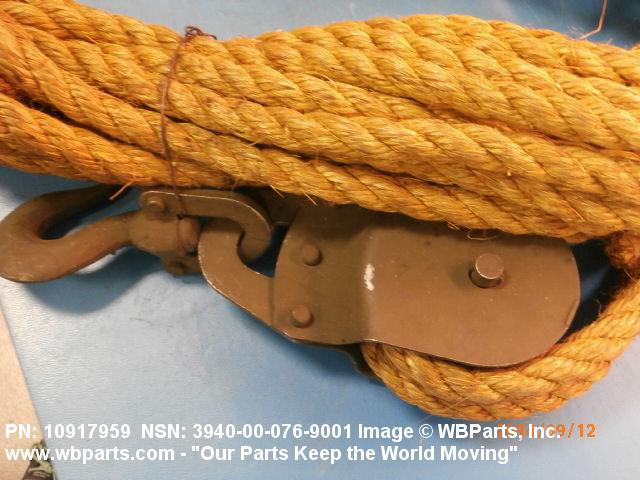

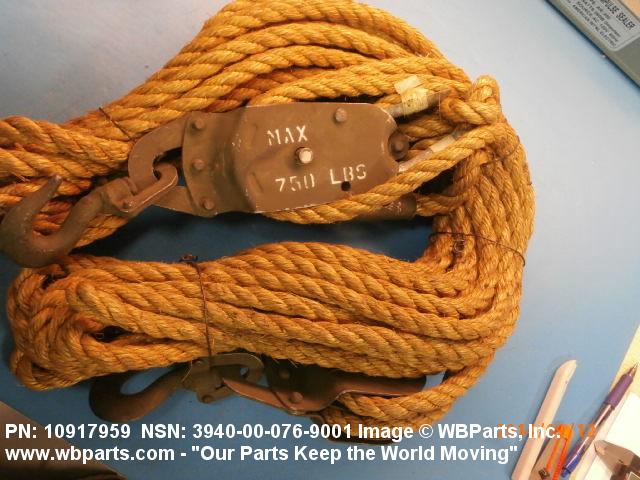

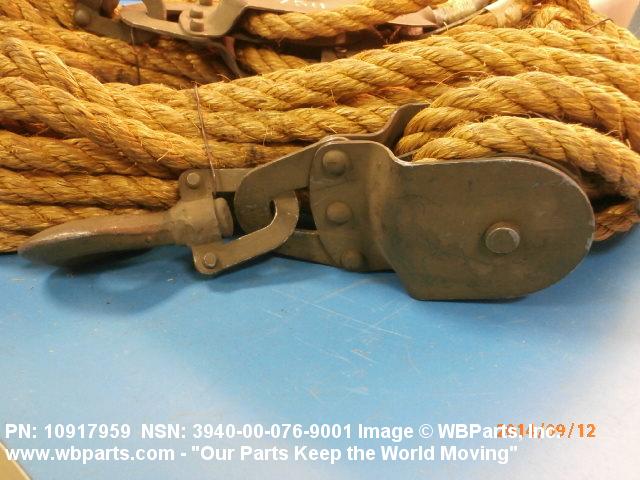

Drawings & Photos | NSN 3940-00-076-9001
Demand History | NSN 3940-00-076-9001
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3940-00-076-9001 | 2016-06-178 | 1 | US |
| 3940-00-076-9001 | 2014-09-252 | 1 | United States |
| 3940-00-076-9001 | 2014-04-117 | 84 | US |
Cross Reference | NSN 3940-00-076-9001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10917959 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3940-00-076-9001
Related Products | NSN 3940-00-076-9001
Technical Data | NSN 3940-00-076-9001
| Characteristic | Specifications |
|---|---|
| TACKLE BLOCK QUANTITY | 2 |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | BRONZE, SINTERED BEARING STEEL, CARBON SHEAVE STEEL, CARBON SHELL |
| SURFACE TREATMENT AND LOCATION | ENAMEL, TT-E-489, CLASS B SHELL |
| SHEAVE QUANTITY | 2 AND 2 |
| BEARING TYPE | PLAIN |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | FIBROUS ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.500 INCHES |
| TACKLE LOCKING DEVICE | INCLUDED |
| BECKET TYPE | THIMBLE |
| BECKET QUANTITY | 1 |
| ANTITOPPLING DEVICE | NOT INCLUDED |
| ATTACHMENT STYLE | 32 FLATTED LOOSE SWIVEL EYE WITH SWIVEL HOOK |

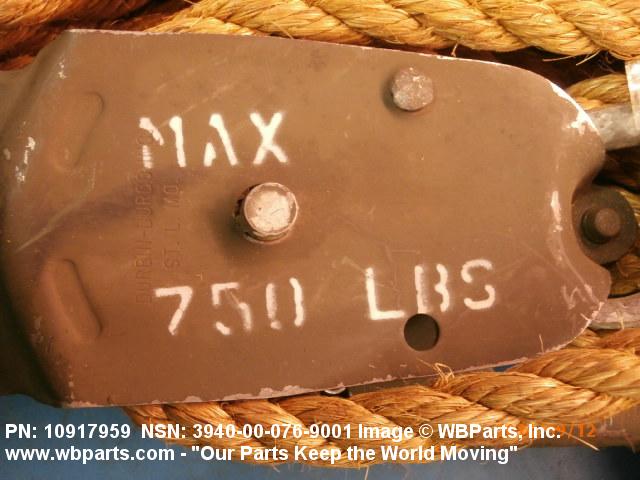

| MAXIMUM LOAD RATING | 750.0 POUNDS |
| TERMINATION TYPE | HOOK |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10917959 |
Restrictions/Controls & Freight Information | NSN 3940-00-076-9001
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-00-076-9001
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
