Product Details | FORK LIFT TRUCK

3930-01-149-9931 A self-propelled, wheeled vehicle, equipped with power driven front or side loading fork, type elevating unit(s). The elevating unit(s) may extend and retract to provide a reaching capability. It is primarily used for lifting, transporting, and stacking. For nonself-propelled, wheeled vehicles equipped with either manual or power driven elevating unit(s), see ELEVATOR, PORTABLE and TRUCK, LIFT, HAND. Excludes TRUCK, LIFT, PLATFORM.

Part Alternates: W14A4, W-14A4, 3930-01-149-9931, 01-149-9931, 3930011499931, 011499931

Materials Handling Equipment | Warehouse Trucks and Tractors, Self-Propelled

Supply Group (FSG) NSN Assign. NIIN
39 28 MAR 1983 01-149-9931

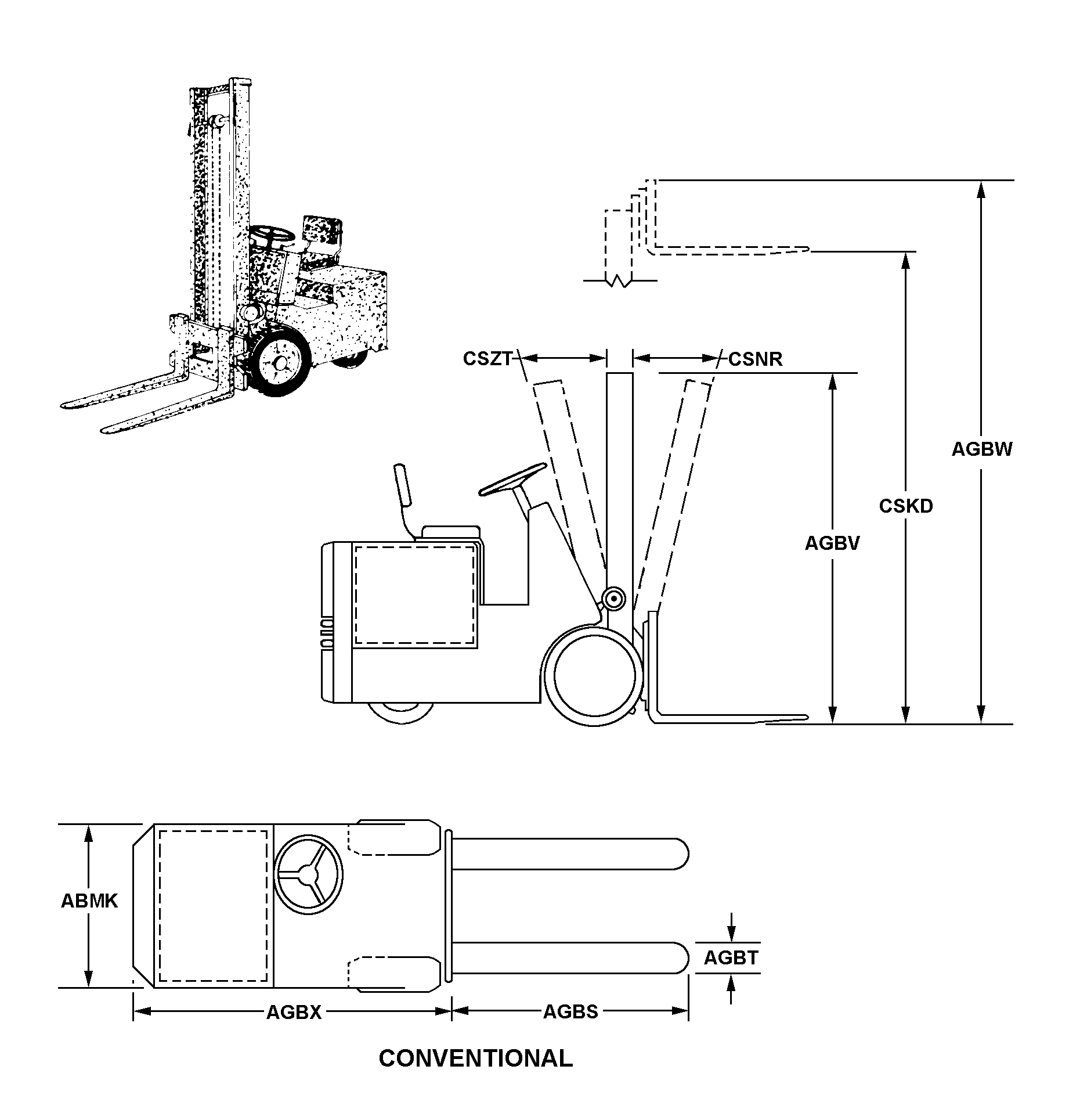

Drawings & Photos | NSN 3930-01-149-9931


Cross Reference | NSN 3930-01-149-9931

Part Number Cage Code Manufacturer
W-14A4 62080 WINDHAM LIFTS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3930-01-149-9931

Technical Data | NSN 3930-01-149-9931

Characteristic Specifications
STYLE DESIGNATOR 5 CONVENTIONAL
OVERALL WIDTH 89.000 INCHES NOMINAL
FORK LENGTH 48.000 INCHES NOMINAL
FORK WIDTH 6.000 INCHES NOMINAL
OVERALL HEIGHT WITH FORKS IN LOWEST POSITION 123.000 INCHES NOMINAL
OVERALL HEIGHT WITH FORKS IN HIGHEST POSITION 138.000 INCHES NOMINAL
OVERALL LENGTH WITHOUT FORKS 122.000 INCHES NOMINAL
LIFT HEIGHT OF FORKS 100.000 INCHES MAXIMUM
BOOM FORWARD TILT ANGLE 27.0 DEGREES NOMINAL
BOOM BACKWARD TILT ANGLE 74.0 DEGREES NOMINAL
PRIME MOVER TYPE DIESEL ENGINE
MAXIMUM LOAD RATING 10000.000 POUNDS
LIFT MECHANISM TYPE HYDRAULIC
LIFT ACTUATION METHOD POWERED
STEERING TYPE CRABBING
TRANSMISSION TYPE AUTOMATIC
MANUFACTURERS CODE 62080
DESIGN CONTROL REFERENCE W-14A4

Restrictions/Controls & Freight Information | NSN 3930-01-149-9931

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 190225 CARS,LIFT TRUCKS OR VEHICLES
Less than car load rating M 85
Less than truck load rating M 85.0
Water commodity Code 891 unknown
Originating Activity Code TG Warner-Robins Air Logistics Center
Robins AFB, GA 31098-5609
Air Dimension Code Z Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling D Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components.
Special Handling Code R unknonwn
HAZMAT
Type of Cargo B Mixed hazardous materials - consolidated only as authorized by Coast Guard regulations, Title 49, CFR, use with T-2 or T-3 documents only

Management | NSN 3930-01-149-9931

Category Code Description
Materiel Management Aggregation CodeCTTG:463L MATERIELS HANDLING SYSTEM
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Budget CodeV 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2)
Source of SupplyFLZWarner Robins Air Logistics Center
Robins AFB, GA 31098-5609
AgencyDFDepartment of the Air Force
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityUAF Equipment Management System (AFEMS)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
