NSN 3930-01-033-3530 CRH, 01-033-3530, 010333530
Product Details | FORK LIFT TRUCK
3930-01-033-3530 A self-propelled, wheeled vehicle, equipped with power driven front or side loading fork, type elevating unit(s). The elevating unit(s) may extend and retract to provide a reaching capability. It is primarily used for lifting, transporting, and stacking. For nonself-propelled, wheeled vehicles equipped with either manual or power driven elevating unit(s), see ELEVATOR, PORTABLE and TRUCK, LIFT, HAND. Excludes TRUCK, LIFT, PLATFORM.
Part Alternates: CRH, 3930-01-033-3530, 01-033-3530, 3930010333530, 010333530
Materials Handling Equipment | Warehouse Trucks and Tractors, Self-Propelled
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 04 JAN 1977 | 01-033-3530 | 03197 ( TRUCK, LIFT, FORK ) |
Drawings & Photos | NSN 3930-01-033-3530
Cross Reference | NSN 3930-01-033-3530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CRH | 50737 | SCHRECK INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3930-01-033-3530
Technical Data | NSN 3930-01-033-3530
| Characteristic | Specifications |
|---|---|

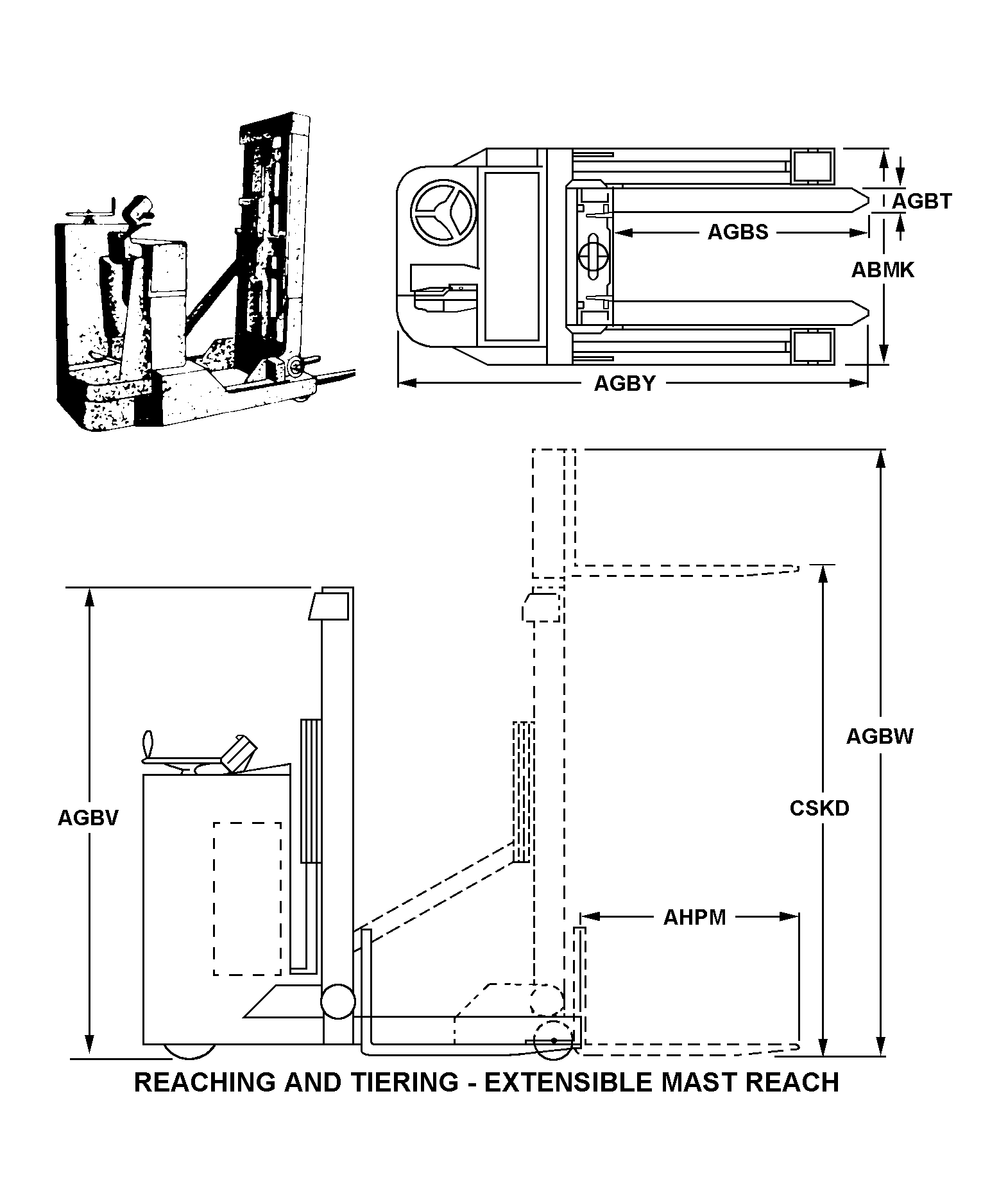

| STYLE DESIGNATOR | 7 REACHING AND TIERING-EXTENSIBLE MAST REACH |
| OVERALL WIDTH | 37.000 INCHES NOMINAL |
| FORK LENGTH | 48.000 INCHES NOMINAL |
| FORK WIDTH | ANY ACCEPTABLE |
| OVERALL HEIGHT WITH FORKS IN LOWEST POSITION | 75.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH FORKS IN HIGHEST POSITION | 217.000 INCHES NOMINAL |
| OVERALL LENGTH WITH FORKS RETRACTED | 123.000 INCHES NOMINAL |
| REACH LENGTH | 48.000 INCHES MAXIMUM |
| LIFT HEIGHT OF FORKS | 48.000 INCHES MAXIMUM |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| BATTERY COMPARTMENT LENGTH | ANY ACCEPTABLE |
| BATTERY COMPARTMENT WIDTH | ANY ACCEPTABLE |
| BATTERY COMPARTMENT DEPTH | ANY ACCEPTABLE |
| VEHICULAR TURN RADIUS | ANY ACCEPTABLE |
| MAXIMUM LOAD RATING | 4000.000 POUNDS |
| FORK/PLATFORM MAXIMUM FREE LIFT HEIGHT | ANY ACCEPTABLE |
| LIFT MECHANISM TYPE | HYDRAULIC |
| LIFT ACTUATION METHOD | POWERED |
| WHEEL TYPE AND QUANTITY | 4 SINGLE SOLID DRIVE WHEEL 2 SINGLE SOLID STEERABLE WHEEL |
| TRANSMISSION TYPE | AUTOMATIC OR MANUAL |
| PRIME MOVER MANUFACTURER CODE AND MODEL NUMBER | 50737-CRH |
| FEATURES PROVIDED | FORK SIDE SHIFT AND LOAD LEVELING DEVICE |
| SPECIAL FEATURES | 217 IN.LIFT,36 VOLTS,OPERATOR COMPARTMENT INSULATED AND SAFETY PADDED W/FOAM RUBBER FLOOR MATS,ELECTRIC HORN,BRIGHT YELLOW,HEAVY STEEL PLATE COWLING |
Restrictions/Controls & Freight Information | NSN 3930-01-033-3530
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
