NSN 3820-01-238-0726 3615A12, 01-238-0726, 012380726
Product Details | PAVING BREAKER CHISEL
3820-01-238-0726 A straight, solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed into a straight, flat blade, with a straight cutting edge. Used for cutting or shaping materials such as asphalt, stone, and other rock-like materials.
Part Alternates: 3615A12, 3820-01-238-0726, 01-238-0726, 3820012380726, 012380726
Construction, Mining, Excavating, and Highway Maintenance Equipment | Mining, Rock Drilling, Earth Boring, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 09 AUG 1986 | 01-238-0726 | 16799 ( CHISEL, PAVING BREAKER ) |

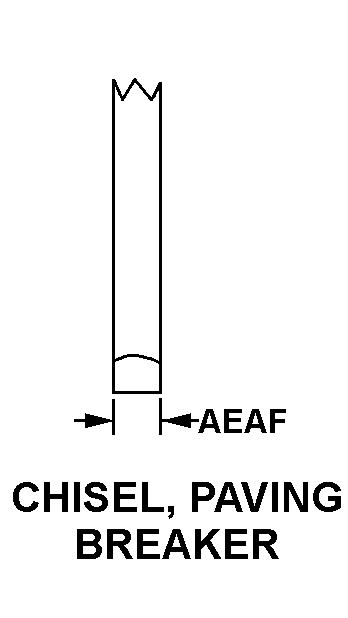

Drawings & Photos | NSN 3820-01-238-0726
Demand History | NSN 3820-01-238-0726
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3820-01-238-0726 | 2011-11-328 | 4 | DIBBS |
Cross Reference | NSN 3820-01-238-0726
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3615A12 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3820-01-238-0726
Related Products | NSN 3820-01-238-0726
Technical Data | NSN 3820-01-238-0726
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |
| SHANK STYLE | A1 COLLARED HEXAGON |
| WIDTH ACROSS FLATS | 1.250 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 6.000 INCHES NOMINAL |
| BLADE STYLE | B2 CHISEL, PAVING BREAKER |
| BLADE WIDTH | 1.250 INCHES NOMINAL |
| OVERALL LENGTH | 14.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3820-01-238-0726
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3820-01-238-0726
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
