NSN 3820-00-641-7762 MILR423, MILR423C, 900600
Product Details | PAVING BREAKER METAL DRUM RIPPING TOOL
3820-00-641-7762 A solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed into a blade designed for ripping metal. Used for cutting out metal drum heads or splitting drums lengthwise.
Part Alternates: MILR423, MILR423C, 900600, 3820-00-641-7762, 00-641-7762, 3820006417762, 006417762
Construction, Mining, Excavating, and Highway Maintenance Equipment | Mining, Rock Drilling, Earth Boring, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 01 JAN 1963 | 00-641-7762 | 18795 ( RIPPING TOOL, METAL DRUM, PAVING BREAKER ) |

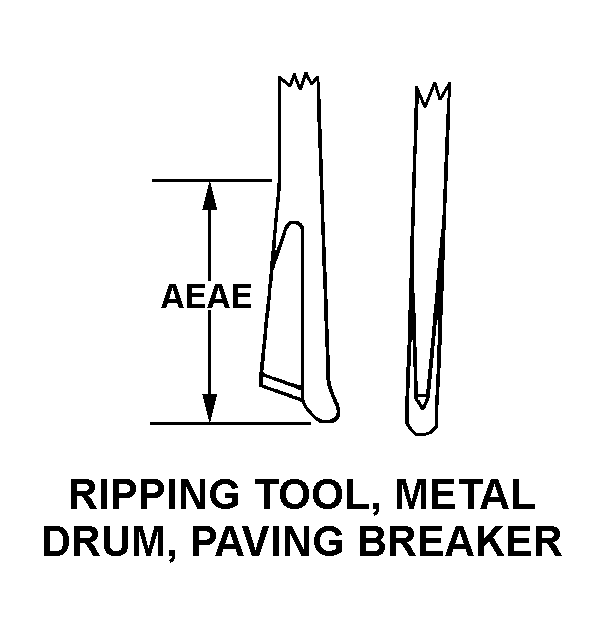

Drawings & Photos | NSN 3820-00-641-7762
Demand History | NSN 3820-00-641-7762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 900600 | 2019-04-93 | 5 | DIBBS |
| 900600 | 2011-05-138 | 6 | |
| 900600 | 2011-04-104 | 6 | |
| 3820-00-641-7762 | 2011-04-102 | 15 | DIBBS |
| 3820-00-641-7762 | 2010-03-69 | 20 | DIBBS |
| 3820-00-641-7762 | 2009-12-337 | 25 | DIBBS |
| 3820-00-641-7762 | 2009-10-295 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3820-00-641-7762
Related Products | NSN 3820-00-641-7762
Technical Data | NSN 3820-00-641-7762
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SHANK STYLE | A1 COLLARED HEXAGON |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 2.750 INCHES NOMINAL |
| BLADE STYLE | B9 RIPPING TOOL, METAL DRUM, PAVING BREAKER |
| BLADE LENGTH | 6.750 INCHES NOMINAL |
| OVERALL LENGTH | 13.125 INCHES NOMINAL |
| SPECIAL FEATURES | CONSISTS OF 90-06-10 TOOL BODY, 90-06-20 DRUM HEAD CUTTER, 90-06-30 DRUM RIPPING TOOL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
Restrictions/Controls & Freight Information | NSN 3820-00-641-7762
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 122280 | SCARIFIERS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3820-00-641-7762
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
