NSN 3820-00-290-4269 MILB385, W255091A, 1531
Product Details | PAVING BREAKER PICK
3820-00-290-4269 A straight, solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed into a long, straight, flat blade design with straight cutting edges which are tapered from the sides toward the centerline. Used for breaking or loosening asphalt, concrete, and other rock-like materials.
Part Alternates: MILB385, W255091A, 1531, 1PBA1119, 1PBA11-19, 3820-00-290-4269, 00-290-4269, 3820002904269, 002904269
Construction, Mining, Excavating, and Highway Maintenance Equipment | Mining, Rock Drilling, Earth Boring, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 01 JAN 1963 | 00-290-4269 | 16802 ( PICK, PAVING BREAKER ) |

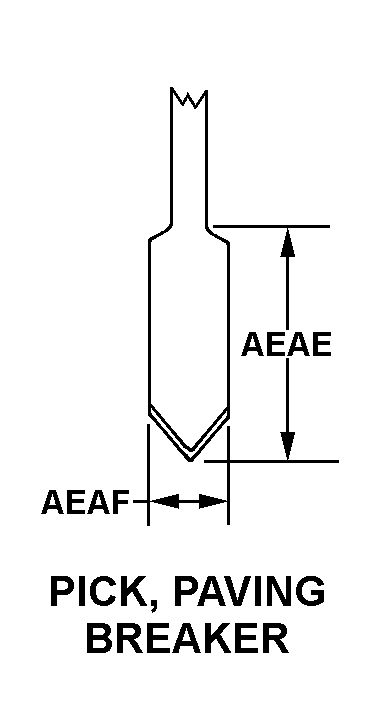

Drawings & Photos | NSN 3820-00-290-4269
Demand History | NSN 3820-00-290-4269
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1531 | 2016-01-24 | 1 | US |
Cross Reference | NSN 3820-00-290-4269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1531 | 79115 | VULCAN CO INC THE |
| 1PBA11-19 | 30760 | INGERSOLL RAND CO |
| 1PBA11-19 | 57576 | INGERSOLL-RAND CO CONSTRUCTION EQUIPMENT GROUP |
| MILB385 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| W255091A | 30760 | INGERSOLL RAND CO |
| W255091A | 57576 | INGERSOLL-RAND CO CONSTRUCTION EQUIPMENT GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3820-00-290-4269
Related Products | NSN 3820-00-290-4269
Technical Data | NSN 3820-00-290-4269
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL TOOL |
| SHANK STYLE | A1 COLLARED HEXAGON |
| WIDTH ACROSS FLATS | 0.870 INCHES MINIMUM AND 0.885 INCHES MAXIMUM |
| SHANK OVERALL LENGTH | 2.719 INCHES MINIMUM AND 2.781 INCHES MAXIMUM |
| BLADE STYLE | B6 PICK, PAVING BREAKER |
| BLADE LENGTH | 8.000 INCHES NOMINAL |
| BLADE WIDTH | 3.000 INCHES MINIMUM AND 3.250 INCHES MAXIMUM |
| OVERALL LENGTH | 19.094 INCHES MINIMUM AND 22.156 INCHES MAXIMUM |
| DEPARTURE FROM CITED DOCUMENT | PARAGRAPH 3.14,ACCESSORIES |
Restrictions/Controls & Freight Information | NSN 3820-00-290-4269
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3820-00-290-4269
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
