NSN 3810-01-268-1737 3105N40F1, 01-268-1737, 012681737
Product Details | TRUCK MOUNTED CRANE
3810-01-268-1737 A crane, consisting of a full revolving superstructure complete with boom and mounted on a heavy duty, self-propelled truck or truck chassis suitable for highway travel. It is primarily designed for weight lifting operations. The crane is self-powered or may derive its mobile power from the power unit of the truck chassis in connection with a hydraulic system. The crane is not convertible to shovel or backhoe operations. For truck mounted cranes convertible to shovel and backhoe operations in addition to performing weight lifting operations, see CRANE-SHOVEL, TRUCK MOUNTED. For items specifically designed for the recovery of disabled vehicles and equipment, see TRUCK, WRECKER.
Part Alternates: 3105N40F1, 3810-01-268-1737, 01-268-1737, 3810012681737, 012681737
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 24 NOV 1987 | 01-268-1737 | 22758 ( CRANE, TRUCK MOUNTED ) |
Drawings & Photos | NSN 3810-01-268-1737
Cross Reference | NSN 3810-01-268-1737
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3105N40F1 | 27315 | MORRIS MATERIAL HANDLING, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3810-01-268-1737
Technical Data | NSN 3810-01-268-1737
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 25.0 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | 35.000 FEET MINIMUM AND 80.000 FEET MAXIMUM |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | 16.000 FEET NOMINAL |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| OPERATING POWER TYPE | HYDRAULIC |
| PRIME MOVER TYPE | ANY ACCEPTABLE |
| DRUM QUANTITY | 2 |
| BOOM OVERALL LENGTH | 35.000 FEET MINIMUM AND 80.000 FEET MAXIMUM |
| BOOM DESIGN | TELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | 70.0 |
| BOOM CONTINUOUS ROTATION FEATURE | INCLUDED |

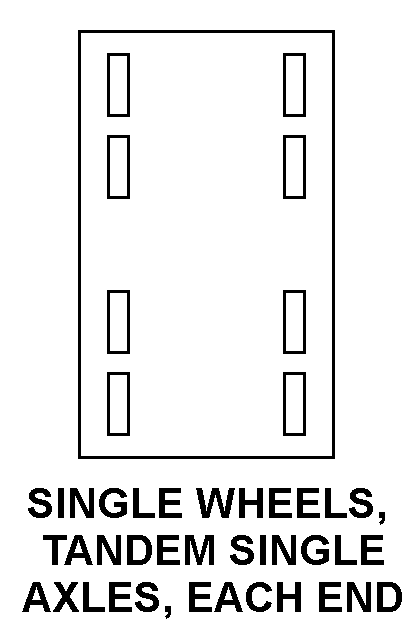

| WHEEL ARRANGEMENT STYLE | 29 SINGLE WHEEL, TANDEM SINGLE AXLES, EACH END |
| REAR DRIVE WHEEL QUANTITY | 4 |
| STEERABLE WHEEL QUANTITY | 4 |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | POWER |
| PILE DRIVER | NOT INCLUDED |
| CRANE OPERATOR CAB | INCLUDED |
Restrictions/Controls & Freight Information | NSN 3810-01-268-1737
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118900 | CRANES/DERRICKS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
