Product Details | TRUCK MOUNTED CRANE
3810-01-223-1356 A crane, consisting of a full revolving superstructure complete with boom and mounted on a heavy duty, self-propelled truck or truck chassis suitable for highway travel. It is primarily designed for weight lifting operations. The crane is self-powered or may derive its mobile power from the power unit of the truck chassis in connection with a hydraulic system. The crane is not convertible to shovel or backhoe operations. For truck mounted cranes convertible to shovel and backhoe operations in addition to performing weight lifting operations, see CRANE-SHOVEL, TRUCK MOUNTED. For items specifically designed for the recovery of disabled vehicles and equipment, see TRUCK, WRECKER.
Part Alternates: MILC28564B, MIL-C-28564B, TMS875, 3810-01-223-1356, 01-223-1356, 3810012231356, 012231356
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 21 DEC 1985 | 01-223-1356 | 22758 ( CRANE, TRUCK MOUNTED ) |
Drawings & Photos | NSN 3810-01-223-1356
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3810-01-223-1356
Technical Data | NSN 3810-01-223-1356
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 65.0 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | 36.000 FEET NOMINAL |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | 10.000 FEET NOMINAL |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| OPERATING POWER TYPE | HYDRAULIC |
| CRANE ENGINE TYPE | DIESEL |
| QUANTITY | 1 |
| MANUFACTURER NAME | GENERAL MOTOR |
| MANUFACTURER IDENTIFYING NUMBER | 6-71T |
| PRIME MOVER TYPE | DIESEL ENGINE |
| ENGINE QUANTITY | 1 |
| ENGINE MANUFACTURER NAME | GENERAL MOTOR |
| ENGINE MANUFACTURER IDENTIFYING NUMBER | 6-71T |
| DRUM QUANTITY | 2 |
| BOOM OVERALL LENGTH | 146.000 FEET NOMINAL |
| BOOM DESIGN | TELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | 80.0 |
| BOOM CONTINUOUS ROTATION FEATURE | INCLUDED |
| BOOM MAXIMUM ROTATION IN DEG | 360.0 |
| BOOM EXTENSION TYPE | TELESCOPIC |

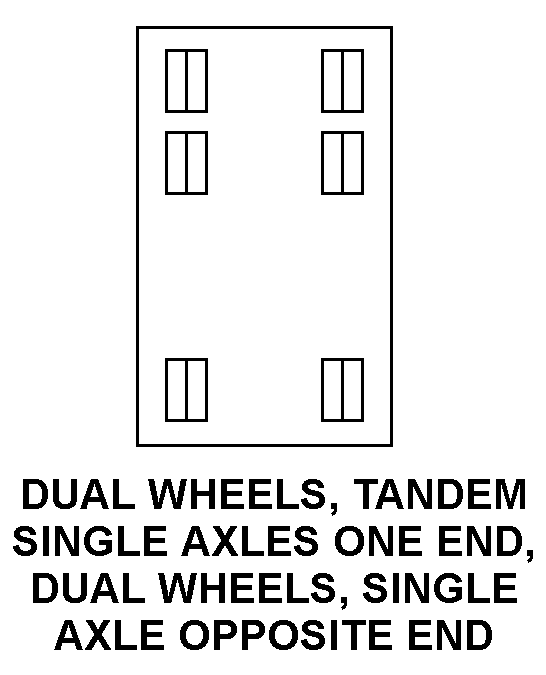

| WHEEL ARRANGEMENT STYLE | 27 DUAL WHEELS, TANDEM SINGLE AXLES ONE END, DUAL WHEELS SINGLE AXLE, OPPOSITE END |
| REAR DRIVE WHEEL QUANTITY | 8 |
| STEERABLE WHEEL QUANTITY | 4 |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | POWER |
| PILE DRIVER | NOT INCLUDED |
| CRANE OPERATOR CAB | INCLUDED |
| SPECIAL FEATURES | INCLUDES CLAMSHELL; TAGLINE; TOWING HOOK; LIFTING AND TIE DOWN ATTCH; LOAD INDICATING WARNING DEVICE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28564B |
