NSN 3810-01-180-1654 LRT100/A, LRT100A, 01-180-1654
Product Details | WHEEL MOUNTED CRANE
3810-01-180-1654 A crane complete with crane boom and attachments mounted on a wheeled carriage chassis which may derive its mobile power from the crane power unit or from an independent power unit. Not convertible to shovel front, backhoe, or skimmer operations. Excludes truck mounted cranes, cranes mounted on a wheeled tractor, and warehouse crane trucks.
Part Alternates: LRT100/A, LRT100A, 3810-01-180-1654, 01-180-1654, 3810011801654, 011801654
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 25 MAY 1984 | 01-180-1654 | 22759 ( CRANE, WHEEL MOUNTED ) |
Drawings & Photos | NSN 3810-01-180-1654
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3810-01-180-1654
Related Products | NSN 3810-01-180-1654
Technical Data | NSN 3810-01-180-1654
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 7.5 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | 21.000 FEET MINIMUM AND 40.000 FEET MAXIMUM |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | 10.000 FEET MINIMUM AND 35.000 FEET MAXIMUM |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| OPERATING POWER TYPE | HYDRAULIC |
| DRUM QUANTITY | 1 |
| BOOM OVERALL LENGTH | 41.600 FEET NOMINAL |
| BOOM DESIGN | TELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | 76.0 |
| BOOM CONTINUOUS ROTATION FEATURE | INCLUDED |

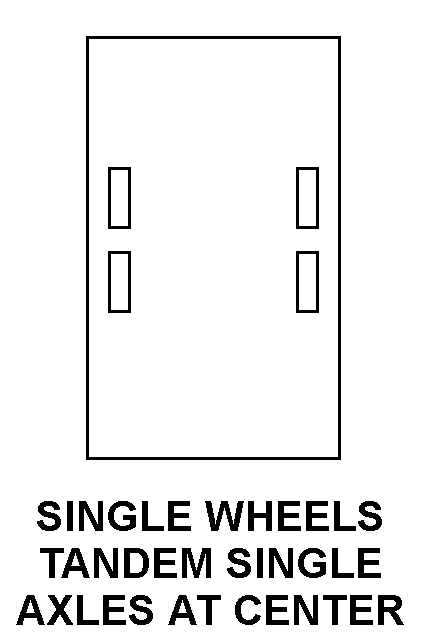

| WHEEL ARRANGEMENT STYLE | 4 SINGLE WHEELS, TANDEM SINGLE AXLES AT CENTER |
| REAR DRIVE WHEEL QUANTITY | 2 |
| STEERABLE WHEEL QUANTITY | 2 |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | POWER |
| PILE DRIVER | NOT INCLUDED |
| CRANE OPERATOR CAB | INCLUDED |
| SPECIAL FEATURES | 4 CYLINDER DIESEL ENGINE; 12 VDC; MATERIAL - STEEL |
| III REFERENCE DATA AND LITERATURE | T.O. 36C3-5-15-1 |
| MANUFACTURERS CODE | 8E499 |
| DESIGN CONTROL REFERENCE | LRT100/A |
Restrictions/Controls & Freight Information | NSN 3810-01-180-1654
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119020 | CRANES O/T REVOLVING ON AUTO |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | B | Mixed hazardous materials - consolidated only as authorized by Coast Guard regulations, Title 49, CFR, use with T-2 or T-3 documents only |
Management | NSN 3810-01-180-1654
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
