NSN 3810-01-130-6415 110TKP, 110TK-P, 01-130-6415
Product Details | WHEEL MOUNTED CRANE
3810-01-130-6415 A crane complete with crane boom and attachments mounted on a wheeled carriage chassis which may derive its mobile power from the crane power unit or from an independent power unit. Not convertible to shovel front, backhoe, or skimmer operations. Excludes truck mounted cranes, cranes mounted on a wheeled tractor, and warehouse crane trucks.
Part Alternates: 110TKP, 110TK-P, 3810-01-130-6415, 01-130-6415, 3810011306415, 011306415
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 28 APR 1982 | 01-130-6415 | 22759 ( CRANE, WHEEL MOUNTED ) |
Drawings & Photos | NSN 3810-01-130-6415
Cross Reference | NSN 3810-01-130-6415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110TK-P | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3810-01-130-6415
Related Products | NSN 3810-01-130-6415
Technical Data | NSN 3810-01-130-6415
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 50.0 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | 38.000 FEET NOMINAL |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | 10.000 FEET MINIMUM AND 115.000 FEET MAXIMUM |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| OPERATING POWER TYPE | HYDRAULIC |
| DRUM QUANTITY | 2 |
| BOOM OVERALL LENGTH | 115.000 FEET NOMINAL |
| BOOM DESIGN | TELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | 72.0 |
| BOOM CONTINUOUS ROTATION FEATURE | INCLUDED |

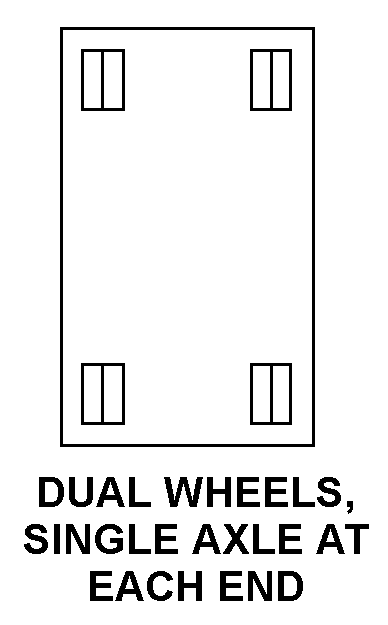

| WHEEL ARRANGEMENT STYLE | 17 DUAL WHEELS, SINGLE AXLE AT EACH END |
| REAR DRIVE WHEEL QUANTITY | 4 |
| STEERABLE WHEEL QUANTITY | 4 |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | POWER |
| PILE DRIVER | NOT INCLUDED |
| CRANE OPERATOR CAB | INCLUDED |
| MANUFACTURERS CODE | 13841 |
| DESIGN CONTROL REFERENCE | 110TK-P |
Restrictions/Controls & Freight Information | NSN 3810-01-130-6415
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119020 | CRANES O/T REVOLVING ON AUTO SUB1 |
| Less than car load rating | M | 85 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3810-01-130-6415
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Price Validation | X | The current standard price has been validated and the previous price was erroneous.
|
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
