NSN 3810-01-093-9394 60XC, 60-XC, 01-093-9394
Product Details | TRUCK MOUNTED CRANE
3810-01-093-9394 A crane, consisting of a full revolving superstructure complete with boom and mounted on a heavy duty, self-propelled truck or truck chassis suitable for highway travel. It is primarily designed for weight lifting operations. The crane is self-powered or may derive its mobile power from the power unit of the truck chassis in connection with a hydraulic system. The crane is not convertible to shovel or backhoe operations. For truck mounted cranes convertible to shovel and backhoe operations in addition to performing weight lifting operations, see CRANE-SHOVEL, TRUCK MOUNTED. For items specifically designed for the recovery of disabled vehicles and equipment, see TRUCK, WRECKER.
Part Alternates: 60XC, 60-XC, 3810-01-093-9394, 01-093-9394, 3810010939394, 010939394
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 26 APR 1980 | 01-093-9394 | 22758 ( CRANE, TRUCK MOUNTED ) |
Drawings & Photos | NSN 3810-01-093-9394
Cross Reference | NSN 3810-01-093-9394
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60-XC | 88853 | BCP CONSTRUCTION PRODUCTS DIV OF TEREX CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3810-01-093-9394
Technical Data | NSN 3810-01-093-9394
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 60.0 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | 42.500 FEET MINIMUM AND 104.000 FEET MAXIMUM |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | 10.000 FEET NOMINAL |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| OPERATING POWER TYPE | HYDRAULIC |
| CRANE ENGINE TYPE | DIESEL |
| QUANTITY | 1 |
| MANUFACTURER NAME | GENERAL MOTORS |
| MANUFACTURER IDENTIFYING NUMBER | MODELNO.6V53N |
| PRIME MOVER TYPE | DIESEL ENGINE |
| ENGINE QUANTITY | 1 |
| ENGINE MANUFACTURER NAME | GENERAL MOTORS |
| ENGINE MANUFACTURER IDENTIFYING NUMBER | MODEL 6V-71N |
| DRUM QUANTITY | 2 |
| BOOM OVERALL LENGTH | 136.000 FEET MAXIMUM |
| BOOM DESIGN | TELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | 77.0 |
| BOOM CONTINUOUS ROTATION FEATURE | INCLUDED |
| BOOM EXTENSION TYPE | STRAIGHT JIB |

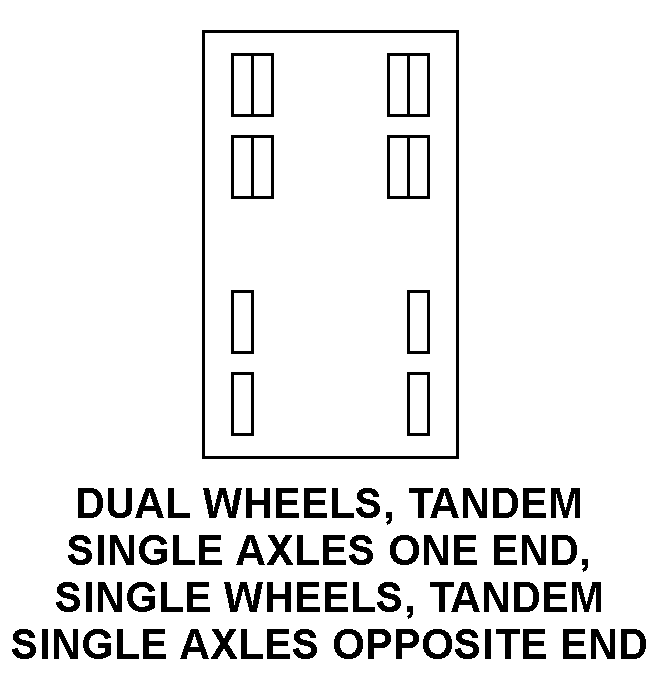

| WHEEL ARRANGEMENT STYLE | 30 DUAL WHEELS, TANDEM SINGLE AXLES ONE END, SINGLE WHEELS, TANDEM SINGLE AXLES OPPOSITE END |
| REAR DRIVE WHEEL QUANTITY | 8 |
| STEERABLE WHEEL QUANTITY | 4 |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | POWER |
| PILE DRIVER | NOT INCLUDED |
| CRANE OPERATOR CAB | INCLUDED |
| MANUFACTURERS CODE | 88853 |
| DESIGN CONTROL REFERENCE | 60-XC |
Restrictions/Controls & Freight Information | NSN 3810-01-093-9394
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119020 | CRANES O/T REVOLVING ON AUTO SUB2 |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | D | unknonwn |
| HAZMAT | ||
| Type of Cargo | W | Corrosive materials, UN class 8 (corrosive label) |
Management | NSN 3810-01-093-9394
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | PD | Regulated items, item manager controlled. |
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
