NSN 3810-00-902-3082 M63, 00-902-3082, 009023082
Product Details | WHEEL MOUNTED CRANE
3810-00-902-3082 A crane complete with crane boom and attachments mounted on a wheeled carriage chassis which may derive its mobile power from the crane power unit or from an independent power unit. Not convertible to shovel front, backhoe, or skimmer operations. Excludes truck mounted cranes, cranes mounted on a wheeled tractor, and warehouse crane trucks.
Part Alternates: M63, 3810-00-902-3082, 00-902-3082, 3810009023082, 009023082
Construction, Mining, Excavating, and Highway Maintenance Equipment | Cranes and Crane-Shovels
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | 01 JAN 1960 | 00-902-3082 | 22759 ( CRANE, WHEEL MOUNTED ) |
Drawings & Photos | NSN 3810-00-902-3082
Cross Reference | NSN 3810-00-902-3082
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M63 | 03677 | ANTHONY YORK CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3810-00-902-3082
Related Products | NSN 3810-00-902-3082
Technical Data | NSN 3810-00-902-3082
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 3.000 TONS |
| BOOM LENGTH AT WHICH LIFTING CAPACITY IS RATED | 18.500 FEET NOMINAL |
| BOOM RADIUS AT WHICH LIFTING CAPACITY IS RATED | 14.000 FEET NOMINAL |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| OPERATING POWER TYPE | HYDRAULIC |
| PRIME MOVER TYPE | DIESEL ENGINE |
| ENGINE QUANTITY | 1 |
| ENGINE MANUFACTURER NAME | DETROIT DIESEL ENGINE DIV OF GM CORP |
| ENGINE MANUFACTURER IDENTIFYING NUMBER | MODEL NO. 3914,SERIES 71 |
| DRUM QUANTITY | 1 |
| BOOM OVERALL LENGTH | 23.500 FEET NOMINAL |
| BOOM DESIGN | TELESCOPING |
| BOOM MAXIMUM ANGLE IN DEG | 75.0 |
| BOOM CONTINUOUS ROTATION FEATURE | NOT INCLUDED |
| BOOM MAXIMUM ROTATION IN DEG | 280.0 |
| BOOM EXTENSION TYPE | STRAIGHT JIB |

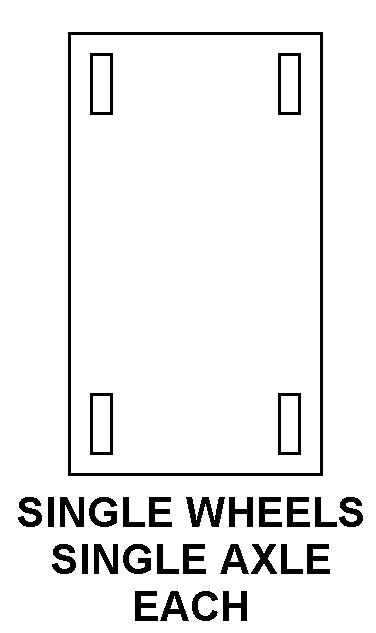

| WHEEL ARRANGEMENT STYLE | 6 SINGLE WHEELS, SINGLE AXLE EACH END |
| REAR DRIVE WHEEL QUANTITY | 2 |
| FRONT DRIVE WHEEL QUANTITY | 2 |
| STEERABLE WHEEL QUANTITY | 4 |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | POWER |
| PILE DRIVER | NOT INCLUDED |
| CRANE OPERATOR CAB | INCLUDED |
| SPECIAL FEATURES | AIR TRANSPORTABLE BY SECTIONALIZ ATION,DESIGNED FOR ROUGH TERRAIN |
| MANUFACTURERS CODE | 03677 |
| DESIGN CONTROL REFERENCE | M63 |
Restrictions/Controls & Freight Information | NSN 3810-00-902-3082
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118900 | CRANES/DERRICKS |
| Less than car load rating | F | 150 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3810-00-902-3082
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | I | Construction Equipment |
| Weapons Systems/End Item or Homogeneous Group | IE | Cranes, Wheel |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
