NSN 3655-00-541-4117 55A47G1, 900593, 00-541-4117
Product Details | COMPRESSED GAS CYLINDER TRAILER
3655-00-541-4117 A trailer having one or more heavy walled cylinders specifically designed to transport gases under pressure.
Part Alternates: 55A47G1, 900593, 3655-00-541-4117, 00-541-4117, 3655005414117, 005414117
Special Industry Machinery | Gas Generating and Dispensing Systems, Fixed or Mobile
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 36 | 01 JAN 1963 | 00-541-4117 | 16822 ( TRAILER, COMPRESSED GAS CYLINDER ) |
Drawings & Photos | NSN 3655-00-541-4117
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3655-00-541-4117
Related Products | NSN 3655-00-541-4117
Technical Data | NSN 3655-00-541-4117
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | NOT RATED |
| OUTER CYLINDER SHELL | NOT INCLUDED |
| GAS CYLINDER QUANTITY | 6 |
| CYLINDER LENGTH | 51.000 INCHES NOMINAL |
| CYLINDER OUTSIDE DIAMETER | 9.000 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | AIR NITROGEN |
| CYLINDER CAPACITY RATING | 2630.0 POUNDS |
| CYLINDER MOUNTING POSITION | HORIZONTAL |
| TRANSFER PUMP | NOT INCLUDED |
| VACUUM PUMP | NOT INCLUDED |
| OVERALL LENGTH | 102.750 INCHES NOMINAL |
| OVERALL WIDTH | 56.750 INCHES NOMINAL |
| DISTANCE FROM BODY FRONT TO DRAWBAR COUPLER CENTER | 28.250 INCHES NOMINAL |
| SUSPENSION TYPE | THROUGH SHAFT AXLE AND CASTER WHEEL |

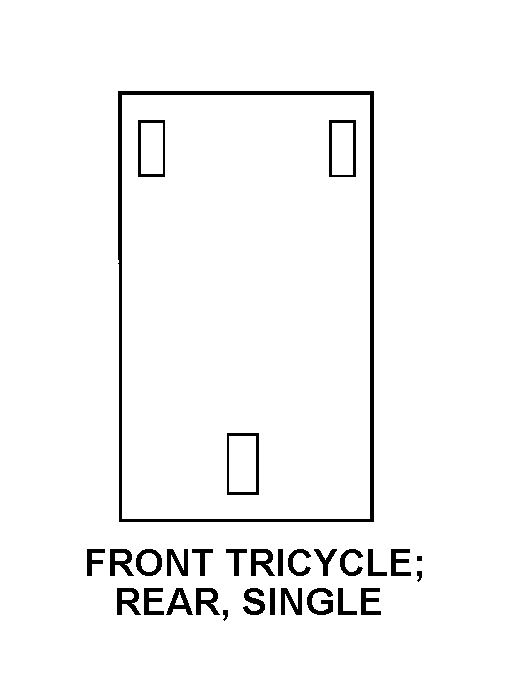

| WHEEL ARRANGEMENT STYLE | 49 FRONT TRICYCLE, REAR, SINGLE |
| PARKING BRAKES | INCLUDED |
| DRAWBAR TYPE | RIGID TONGUE |
| DRAWBAR CHARACTERISTIC | FIXED |
| DRAWBAR COUPLER TYPE | LUNETTE |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| SUPPORT TYPE | WHEEL |
| AUXILIARY SUPPORT TYPE | ANY ACCEPTABLE |
| TOWING PINTLE HOOK | INCLUDED |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 55A47G1 |
Restrictions/Controls & Freight Information | NSN 3655-00-541-4117
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS ETC |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 894 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3655-00-541-4117
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 6R | Aeronautical ground support equipment (reparable or investment type material) Naval Inventory Control Point, Philadelphia |
| Issue Repair, or Requisition | BS | Submit/refer requisitions to NAVICP PHIL. |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | X | Special Program Reparables |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
