NSN 3610-00-496-9620 00-496-9620, 004969620
Product Details | LITHOGRAPHIC COPYING CAMERA
3610-00-496-9620 A CAMERA, STILL PICTURE designed for use in the graphic arts to make accurate, distortion-free copies from flat surface subject matter upon sensitized material.
Part Alternates: 3610-00-496-9620, 00-496-9620, 3610004969620, 004969620
Special Industry Machinery | Printing, Duplicating, and Bookbinding Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 36 | 06 OCT 1969 | 00-496-9620 | 18934 ( CAMERA, COPYING, LITHOGRAPHIC ) |
Drawings & Photos | NSN 3610-00-496-9620
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3610-00-496-9620
Related Products | NSN 3610-00-496-9620
Technical Data | NSN 3610-00-496-9620
| Characteristic | Specifications |
|---|---|
| CAMERA TYPE | GALLERY |
| LENS FOCAL LENGTH | ANY ACCEPTABLE |
| MAXIMUM REDUCTION RATIO | 3 TO 1 |
| MAXIMUM ENLARGEMENT RATIO | 1 TO 3.0 |
| LENS APERTURE SETTING RANGE | ANY ACCEPTABLE |

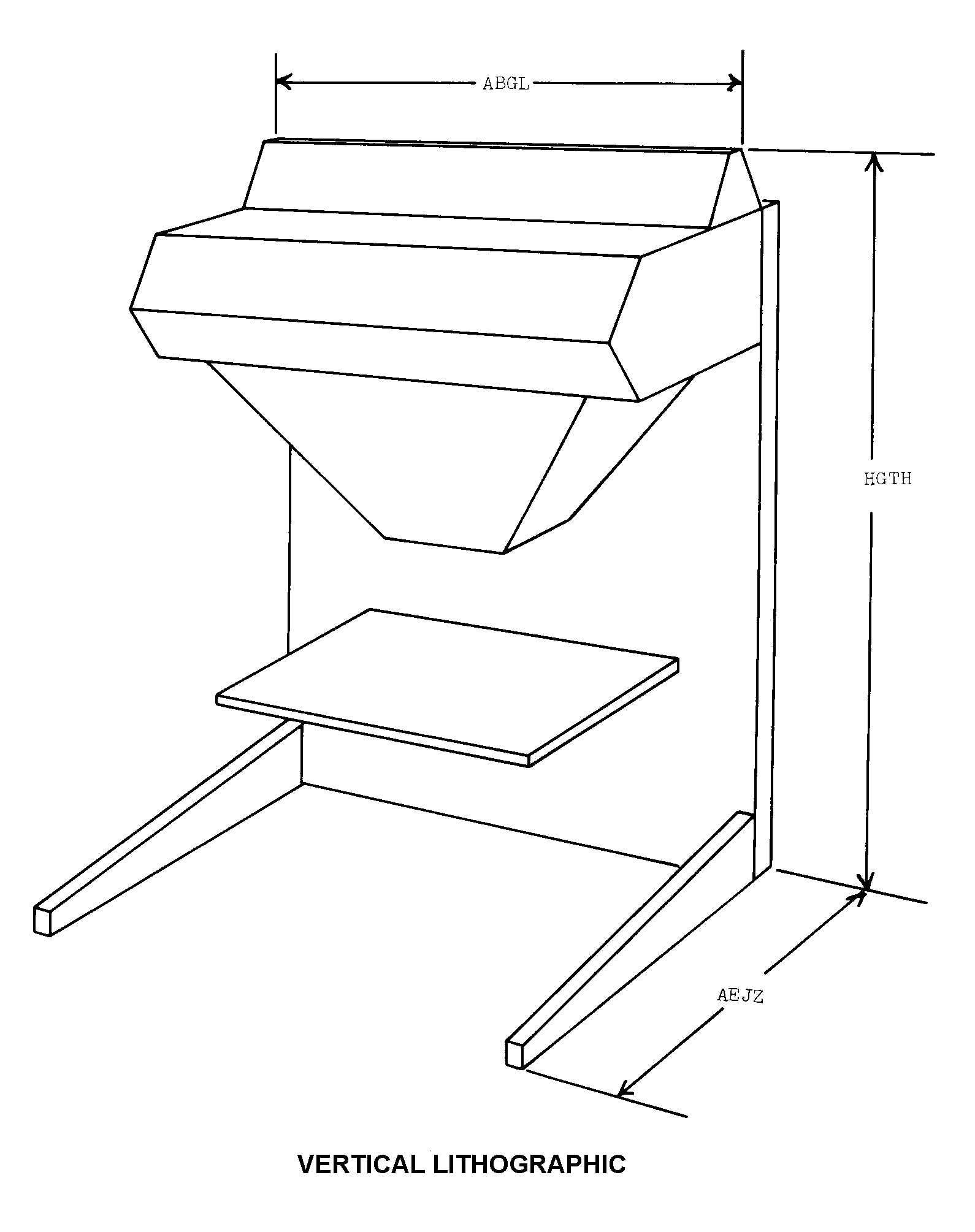

| STYLE DESIGNATOR | 6 VERTICAL LITHOGRAPHIC |
| WIDTH | ANY ACCEPTABLE |
| DEPTH | ANY ACCEPTABLE |
| HEIGHT | ANY ACCEPTABLE |
| CAMERA MOUNTING TYPE | FIXED |
| FILM ACCOMMODATION TYPE | CUT FILM |
| FILM WIDTH | ANY ACCEPTABLE |
| FILM LENGTH | ANY ACCEPTABLE |
| NEGATIVE WIDTH | ANY ACCEPTABLE |
| NEGATIVE LENGTH | ANY ACCEPTABLE |
| EXPOSURE QUANTITY ACCOMMODATED | 1 |
| FOCUS METHOD | LEAD SCREW |
| VIEWFINDER TYPE | GROUND GLASS BACK |
| LENS MOUNTING METHOD | BOARD |
| INSTALLATION DESIGN | FIXED PORTABLE |
| FILM HOLDER TYPE | VACUUM BACK |
| COPY BOARD TYPE | VACUUM |
| COPY BOARD MAXIMUM WIDTH | ANY ACCEPTABLE |
| COPY BOARD MAXIMUM LENGTH | ANY ACCEPTABLE |
| VACUUM PUMP MOTOR VOLTAGE RATING | ANY ACCEPTABLE |
| ILLUMINATED COPY BOARD VOLTAGE RATING | ANY ACCEPTABLE |
| FOCUSING DRIVE MOTOR VOLTAGE RATING | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 3610-00-496-9620
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 039620 | CAMERAS R OUTFITS |
| Less than car load rating | G | 125 |
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 756 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | P | Photographic supplies and equipment, including training films. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3610-00-496-9620
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | G | Communications and Electronics Equipment, Electronics Materiel |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | R | Tactical and Strategic Communications |
| Weapons Systems/End Item or Homogeneous Group | RK | Project Code ?CXC? |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | B16 | US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
