Product Details | TUBE EXPANDER

3456-01-536-8140 A tool used on closed sided and/or hollow metal parts to form precise shapes and dimensions by systems of dies which expand outward and stretch the metal to a required shape and size.

Part Alternates: 5944-05035, 3456-01-536-8140, 01-536-8140, 3456015368140, 594405035, 015368140

Metalworking Machinery | Cutting and Forming Tools for Secondary Metalworking Machinery

Supply Group (FSG) NSN Assign. NIIN
34 17 JAN 2006 01-536-8140

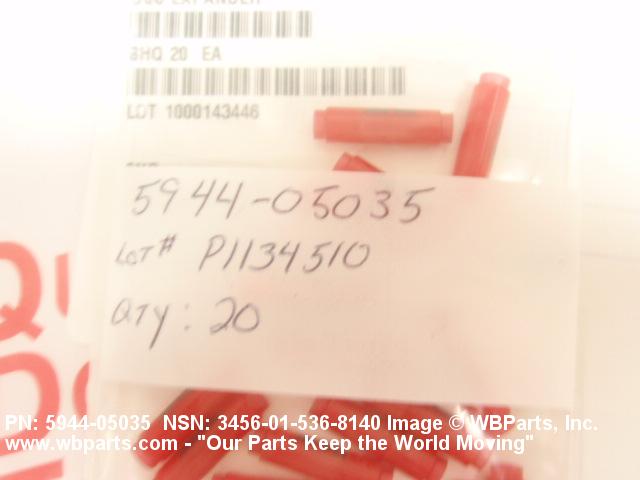

Drawings & Photos | NSN 3456-01-536-8140


Demand History | NSN 3456-01-536-8140

Part Number Request Date QTY Origin
594405035 2009-11-314 20 Switzerland

Cross Reference | NSN 3456-01-536-8140

Part Number Cage Code Manufacturer
5944-05035 08199 EATON AEROSPACE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3456-01-536-8140

Technical Data | NSN 3456-01-536-8140

Characteristic Specifications
TUBE MINIMUM INSIDE DIAMETER ACCOMMODATED 0.238 INCHES
SPECIAL FEATURES OUTSIDE DIAMETER, TUBE SIZE IN INCHES 0.312
III PART NAME ASSIGNED BY CONTROLLING AGENCY EXPANDER, SPLIT RING

Restrictions/Controls & Freight Information | NSN 3456-01-536-8140

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
