NSN 3456-00-472-3377 AT252DD5, 00-472-3377, 004723377
Product Details | METAL PUNCHING MACHINE PUNCH
3456-00-472-3377 00001013456000000
Part Alternates: AT252DD5, 3456-00-472-3377, 00-472-3377, 3456004723377, 004723377
Metalworking Machinery | Cutting and Forming Tools for Secondary Metalworking Machinery
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 27 MAY 1971 | 00-472-3377 | 13010 ( PUNCH, METAL PUNCHING MACHINE0 ) |
Drawings & Photos | NSN 3456-00-472-3377
Cross Reference | NSN 3456-00-472-3377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AT252DD5 | 00784 | SNAP-ON INCORPORATED DBA SNAP-ON TOOLS DIV SNAP-ON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3456-00-472-3377
Related Products | NSN 3456-00-472-3377
Technical Data | NSN 3456-00-472-3377
| Characteristic | Specifications |
|---|---|

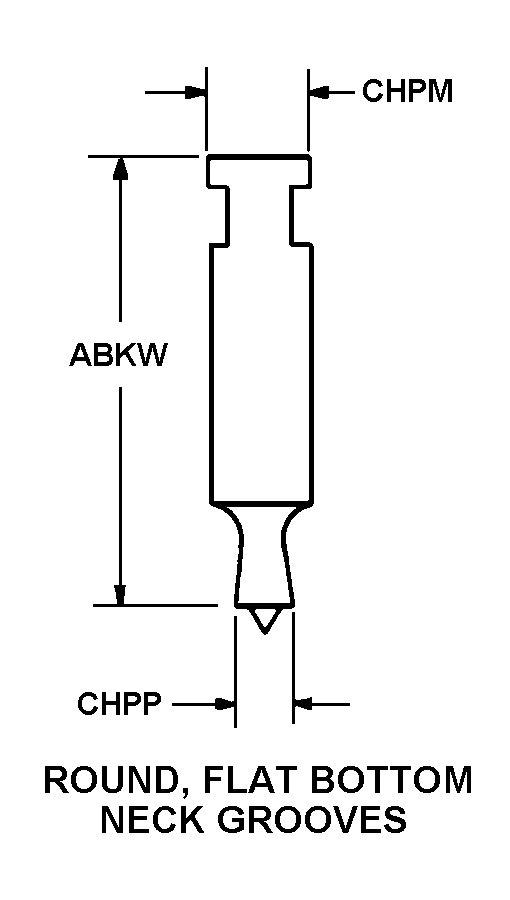

| STYLE DESIGNATOR | C1 ROUND, FLAT BOTTOM NECK GROOVES |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| MACHINE END DIAMETER | 0.378 INCHES NOMINAL |
| PUNCHING DIAMETER | 0.312 INCHES NOMINAL |
| SPECIAL FEATURES | MALE DIE FOR USE WITH ATI TOOLING AT-256SS STATIONARY DIMPLER OR AT-259 PORTABLE DIMPLER |
| MANUFACTURERS CODE | 00784 |
| DESIGN CONTROL REFERENCE | AT252DD5 |
Restrictions/Controls & Freight Information | NSN 3456-00-472-3377
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128080 | PUNCHES/SHEARS I/S WORKING NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3456-00-472-3377
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
