NSN 3456-00-147-8962 R6S, 00-147-8962, 001478962
Product Details | ROLLER TUBE EXPANDER ROLL
3456-00-147-8962 A circular roll of steel either cylindrical or with variable diameters and shape, to insert in the cage of a roller tube expander to shape the expansion or flare of tubes.
Part Alternates: R6S, 3456-00-147-8962, 00-147-8962, 3456001478962, 001478962
Metalworking Machinery | Cutting and Forming Tools for Secondary Metalworking Machinery
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 08 OCT 1971 | 00-147-8962 | 15849 ( ROLL, ROLLER TUBE EXPANDER ) |
Drawings & Photos | NSN 3456-00-147-8962
Cross Reference | NSN 3456-00-147-8962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R6S | 70211 | INDRESCO INC INDUSTRIAL TOOL DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3456-00-147-8962
Related Products | NSN 3456-00-147-8962
Technical Data | NSN 3456-00-147-8962
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

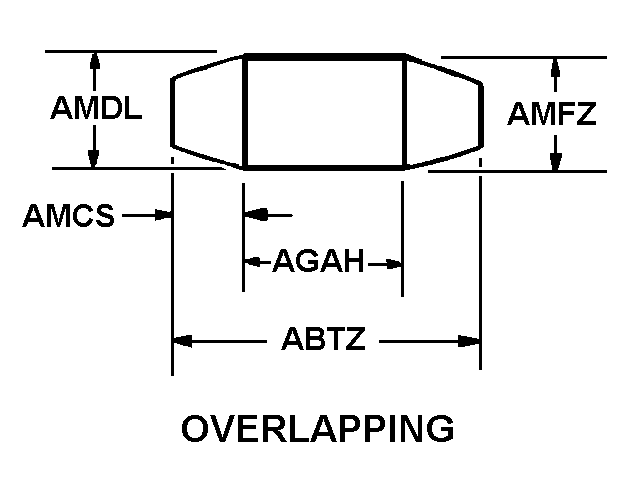

| STYLE DESIGNATOR | A9 OVERLAPPING |
| OVERALL LENGTH | 1.495 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| MAIN BODY OVERALL LENGTH | 1.000 INCHES NOMINAL |
| FIRST END DIAMETER | 0.1740 INCHES MINIMUM AND 0.1755 INCHES MAXIMUM |
| SECOND END DIAMETER | 0.1585 INCHES MINIMUM AND 0.1600 INCHES MAXIMUM |
| FIRST END TAPER LENGTH | 0.250 INCHES NOMINAL |
| SECOND END TAPER LENGTH | 0.250 INCHES NOMINAL |
| SPECIAL FEATURES | SPECIAL REQUIREMENTS FOR NUCLEAR PROPULSIONPLANT EQUIPMENT CONTAINED IN INDIVIDUAL REPAIR PARTS ORDERINGDATA INSTRUMENTATION CONTROL NO. H2601A LINE NO. 0010 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BYTHE SPECIAL FEATURES REQUIREMENT |
| MANUFACTURERS CODE | 70211 |
| DESIGN CONTROL REFERENCE | R6S |
Restrictions/Controls & Freight Information | NSN 3456-00-147-8962
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3456-00-147-8962
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
