Product Details | ROTARY FILE

3455-01-310-5670 A cutting tool made in various shapes such as cylinders, globes, and cones whose working surface is provided with sharp teeth in the form of noncontinuous or continuous ridges. It is used for light shaping and smoothing of metals and other materials.

Part Alternates: 9907, 3455-01-310-5670, 01-310-5670, 3455013105670, 013105670

Metalworking Machinery | Cutting Tools for Machine Tools

Supply Group (FSG) NSN Assign. NIIN
34 08 NOV 1989 01-310-5670

Drawings & Photos | NSN 3455-01-310-5670


Demand History | NSN 3455-01-310-5670

Part Number Request Date QTY Origin
9907 2017-09-269 25 US

Cross Reference | NSN 3455-01-310-5670

Part Number Cage Code Manufacturer
9907 18531 DREMEL MFG CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3455-01-310-5670

Technical Data | NSN 3455-01-310-5670

Characteristic Specifications
MATERIAL TUNGSTEN CARBIDE

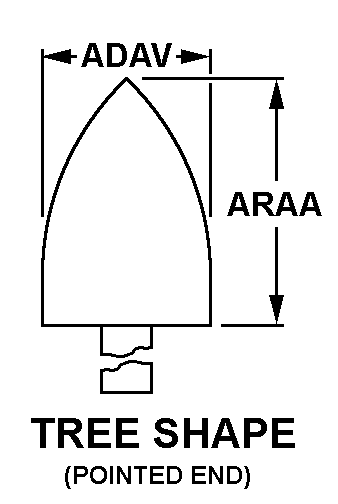

STYLE DESIGNATOR B1 TREE SHAPE
OVERALL DIAMETER 0.125 INCHES NOMINAL
MOUNTING SHANK INCLUDED
REMOVABILITY FEATURE NOT INCLUDED
SHAPE STRAIGHT
DIAMETER 0.125 INCHES NOMINAL
SPECIAL FEATURES USED ON MDL 250 MOTO-TOOL

Restrictions/Controls & Freight Information | NSN 3455-01-310-5670

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
