NSN 3455-01-042-4841 A105M, A-105-M, A-121
Product Details | ROTARY FILE
3455-01-042-4841 A cutting tool made in various shapes such as cylinders, globes, and cones whose working surface is provided with sharp teeth in the form of noncontinuous or continuous ridges. It is used for light shaping and smoothing of metals and other materials.
Part Alternates: A105M, A-105-M, A-121, AA51146, A-A-51146, AA51146B2A13B, AA51146B-2A13B, AC-70, N5KWM, N5KW-M, CBI16, CB-I16 , SA-3-M, TC02M, TC-02-M, TCR109M, TCR-109-M, EJAWM, EJA-W-M, EJAW-M, PEJAW, SA3, SA-3, SA3M, AC70, A121, 736-006917, 9A10KW, 041-1063-20, 1224AM, 12-24A-M, 157168, 2157168, 32.552, 32.552-1 , 32552, 325521, 41375030, 421642M, 421-642-M, 51253, 612A, 6-12-A, 3455-01-042-4841, 01-042-4841, 3455010424841, 041106320, 010424841, 736006917
Metalworking Machinery | Cutting Tools for Machine Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 10 JUN 1977 | 01-042-4841 | 05210 ( FILE, ROTARY ) |
Drawings & Photos | NSN 3455-01-042-4841
Demand History | NSN 3455-01-042-4841
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SA-3 | 2013-08-229 | 100 | Canada |
Cross Reference | NSN 3455-01-042-4841
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 041-1063-20 | 30961 | FEDERAL-MOGUL CORP TARGET PRODUCTS DIV |
| 041-1063-20 | 98387 | FEDERAL-MOGUL CORP METAL REMOVAL/TOOLING DIV |
| 12-24A-M | 33886 | JOHNSON CARBIDE PRODUCTS INC |
| 157168 | 31786 | JARVIS CORP |
| 157168 | 56922 | JARVIS CUTTING TOOLS INC. |
| 2157168 | 80089 | EMERSON ELECTRIC CO WHITE-RODGERS DIV |
| 32.552 | 26462 | GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON |
| 41375030 | 23030 | FORD, M A MANUFACTURING CO INC |
| 421-642-M | 59798 | ROCARB INDUSTRIES INC |
| 51253 | 43786 | COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV |
| 6-12-A | 42970 | LEAR SIEGLER INC NATIONAL TWIST DRILL AND TOOL DIV |
| 736-006917 | 18056 | DOALL BALTIMORE COMPANY |
| 9A10KW | 26462 | GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON |
| A-105-M | 59724 | RICO TOOL CO INC |
| A-121 | 97308 | ATRAX-NEWCARB CORP |
| A-A-51146 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA51146B-2A13B | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AC-70 | 94687 | BEAVER CUT ROTARY FILE CO |
| EJA-W-M | 54251 | SEVERANCE TOOL INDUSTRIES INC. |
| EJAW-M | 18056 | DOALL BALTIMORE COMPANY |
| N5KW-M | 43786 | COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV |
| PEJAW | 48531 | FISCHER PRECISE USA, INC. |
| SA-3 | 55275 | TUNGSTEN INDUSTRIES |
| SA-3 | 57833 | CARBIDE TOOLS FOR INDUSTRY INC. DBA C. T. I. |
| SA-3 | 64700 | ROGERS TOOL WORKS INC DBA RTW |
| SA-3-M | 81470 | FULLERTON TOOL COMPANY INC |
| TC-02-M | 31786 | JARVIS CORP |
| TC-02-M | 56922 | JARVIS CUTTING TOOLS INC. |
| TCR-109-M | 26190 | ROTA FILE CORPORATION DBA ROTA TOOL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3455-01-042-4841
Related Products | NSN 3455-01-042-4841
Technical Data | NSN 3455-01-042-4841
| Characteristic | Specifications |
|---|---|
| MATERIAL | TUNGSTEN CARBIDE |

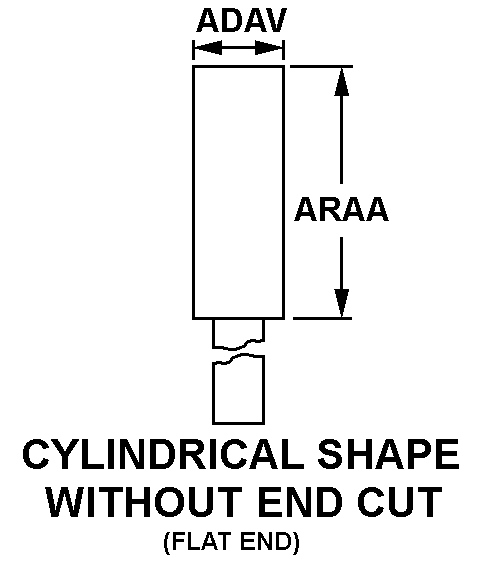

| STYLE DESIGNATOR | B5B CYLINDRICAL SHAPE WITHOUT END CUT |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| CUTTING SURFACE LENGTH | 0.750 INCHES NOMINAL |
| CUTTER TOOTH STYLE DESIGNATOR | C1 |
| CUTTER TOOTH CUT STYLE | MEDIUM |
| CUTTER TOOTH SHAPING METHOD | GROUND FROM SOLID |
| MOUNTING SHANK | INCLUDED |
| REMOVABILITY FEATURE | NOT INCLUDED |
| SHAPE | STRAIGHT |
| DIAMETER | 0.250 INCHES NOMINAL |
| LENGTH | 2.000 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 2.750 INCHES NOMINAL |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-51146 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA51146B-2A13B |
Restrictions/Controls & Freight Information | NSN 3455-01-042-4841
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3455-01-042-4841
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
