NSN 3455-01-007-5497 CLRUW, CLRU-W, TC-31
Product Details | ROTARY FILE
3455-01-007-5497 A cutting tool made in various shapes such as cylinders, globes, and cones whose working surface is provided with sharp teeth in the form of noncontinuous or continuous ridges. It is used for light shaping and smoothing of metals and other materials.
Part Alternates: CLRUW, CLRU-W, TC-31, TC31, 548250-169, 3455-01-007-5497, 01-007-5497, 3455010075497, 548250169, 010075497
Metalworking Machinery | Cutting Tools for Machine Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 05 AUG 1975 | 01-007-5497 | 05210 ( FILE, ROTARY ) |
Drawings & Photos | NSN 3455-01-007-5497
Demand History | NSN 3455-01-007-5497
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 548250-169 | 2023-12-360 | 25 | DIBBS |
| CLRU-W | 2023-12-360 | 25 | DIBBS |
| TC-31 | 2023-12-360 | 25 | DIBBS |
| 548250-169 | 2023-04-99 | 25 | DIBBS |
| CLRU-W | 2023-04-99 | 25 | DIBBS |
| TC-31 | 2023-04-99 | 25 | DIBBS |
| 548250-169 | 2022-09-263 | 13 | DIBBS |
| CLRU-W | 2022-09-263 | 13 | DIBBS |
| TC-31 | 2022-09-263 | 13 | DIBBS |
| 548250-169 | 2022-06-178 | 25 | DIBBS |
| CLRU-W | 2022-06-178 | 25 | DIBBS |
| TC-31 | 2022-06-178 | 25 | DIBBS |
| 548250-169 | 2022-06-167 | 25 | DIBBS |
| CLRU-W | 2022-06-167 | 25 | DIBBS |
| TC-31 | 2022-06-167 | 25 | DIBBS |
| 3455-01-007-5497 | 2016-05-126 | 5 | DIBBS |
| 3455-01-007-5497 | 2016-04-115 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3455-01-007-5497
Related Products | NSN 3455-01-007-5497
Technical Data | NSN 3455-01-007-5497
| Characteristic | Specifications |
|---|---|
| MATERIAL | TUNGSTEN CARBIDE |

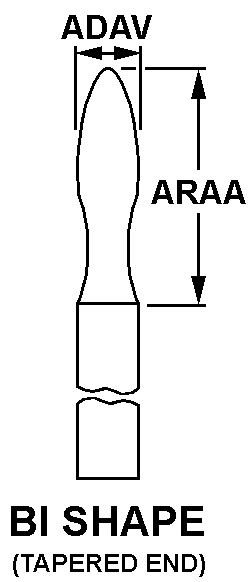

| STYLE DESIGNATOR | B14 BI SHAPE |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| CUTTING SURFACE LENGTH | 1.000 INCHES NOMINAL |
| CUTTER TOOTH STYLE DESIGNATOR | C7 |
| CUTTER TOOTH CUT STYLE | MEDIUM |
| CUTTER TOOTH SHAPING METHOD | GROUND FROM SOLID |
| MOUNTING SHANK | INCLUDED |
| REMOVABILITY FEATURE | NOT INCLUDED |
| SHAPE | STRAIGHT |
| DIAMETER | 0.250 INCHES NOMINAL |
| LENGTH | 1.250 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 2.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3455-01-007-5497
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3455-01-007-5497
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
