NSN 3455-00-540-0252 00-540-0252, 005400252
Product Details | MACHINE FILE
3455-00-540-0252 A Swiss Pattern file with straight parallel sides and edges, designed for use in a filing machine. It may be supported at one end only, by means of a shank or tang; at one end by means of a shank or tang and at the other end by means of an angular point fitting in a recess in the machine; at both ends by clamping on flattened ends; at both ends by means of holes through the flattened ends of the file. It may be designed for cutting on the upward or downward stroke.
Part Alternates: 3455-00-540-0252, 00-540-0252, 3455005400252, 005400252
Metalworking Machinery | Cutting Tools for Machine Tools
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
34 | 01 JAN 1963 | 00-540-0252 | 05186 ( FILE, MACHINE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3455-00-540-0252
Related Products | NSN 3455-00-540-0252
Technical Data | NSN 3455-00-540-0252

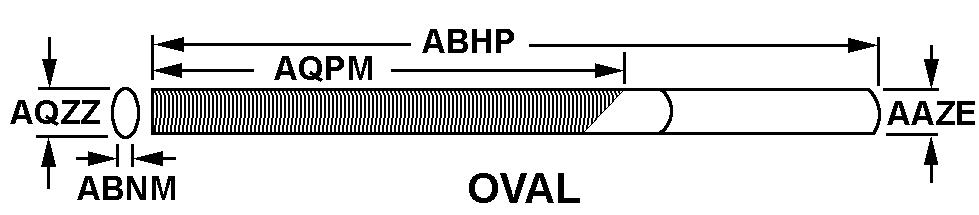

Characteristic | Specifications |
---|---|
STYLE DESIGNATOR | A1D OVAL |
SHANK DIAMETER | 0.120 INCHES NOMINAL |
OVERALL LENGTH | 3.250 INCHES NOMINAL |
THICKNESS | 0.070 INCHES NOMINAL |
CUT LENGTH | 2.250 INCHES NOMINAL |
CUT WIDTH | 0.180 INCHES NOMINAL |
CUT DESIGNATOR | 2 |
CUT STROKE DIRECTION FOR WHICH DESIGNED | UPWARD |
Restrictions/Controls & Freight Information | NSN 3455-00-540-0252
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 133300 | MACHINERY/MACHINES NOI |
Less than car load rating | W | Rating Variable |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 72E | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
