NSN 3455-00-517-6039 AA51176, A-A-51176, AA51176A1A5A
Product Details | ROTARY FILE
3455-00-517-6039 A cutting tool made in various shapes such as cylinders, globes, and cones whose working surface is provided with sharp teeth in the form of noncontinuous or continuous ridges. It is used for light shaping and smoothing of metals and other materials.
Part Alternates: AA51176, A-A-51176, AA51176A1A5A, A-A51176A-1A5A, H299M, H299-M, G3P-M, H43M, G3PM, 12004, 2004, 33.582, 33582, 50321, 8817100, 88-17100, 3455-00-517-6039, 00-517-6039, 3455005176039, 005176039
Metalworking Machinery | Cutting Tools for Machine Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 01 JAN 1963 | 00-517-6039 | 05210 ( FILE, ROTARY ) |
Drawings & Photos | NSN 3455-00-517-6039
Demand History | NSN 3455-00-517-6039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3455-00-517-6039 | 2017-05-128 | 191 | DIBBS |
| 3455-00-517-6039 | 2015-06-179 | 115 | DIBBS |
| 50321 | 2013-08-231 | 1 | Thailand |
| 2004 | 2013-02-45 | 4 | JP |
| 33582 | 2012-08-215 | 800 | KR |
| 33582 | 2012-04-115 | 800 | United States |
| 33582 | 2012-04-114 | 800 | United States |
Cross Reference | NSN 3455-00-517-6039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12004 | 26462 | GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON |
| 2004 | 26462 | GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON |
| 33.582 | 26462 | GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON |
| 50321 | 43786 | COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV |
| 88-17100 | 28085 | SIMONDS CUTTING TOOLS A WALLACE-MURRAY CORP |
| 88-17100 | 54940 | SIMONDS INDUSTRIES INC |
| A-A-51176 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A51176A-1A5A | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| G3P-M | 43786 | COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV |
| H299-M | 26190 | ROTA FILE CORPORATION DBA ROTA TOOL |
| H43M | 28085 | SIMONDS CUTTING TOOLS A WALLACE-MURRAY CORP |
| H43M | 54940 | SIMONDS INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3455-00-517-6039
Related Products | NSN 3455-00-517-6039
Technical Data | NSN 3455-00-517-6039
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, HIGH SPEED |

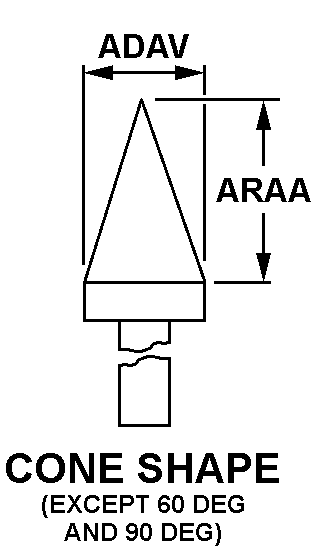

| STYLE DESIGNATOR | B6 CONE SHAPE |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| CUTTING SURFACE LENGTH | 1.000 INCHES NOMINAL |
| CUTTER TOOTH STYLE DESIGNATOR | C8 |
| CUTTER TOOTH CUT STYLE | COARSE |
| CUTTER TOOTH SHAPING METHOD | HAND CUT |
| MOUNTING SHANK | INCLUDED |
| REMOVABILITY FEATURE | NOT INCLUDED |
| SHAPE | STRAIGHT |
| DIAMETER | 0.250 INCHES NOMINAL |
| LENGTH | 1.500 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 2.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-51176 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A51176A-1A5A |
Restrictions/Controls & Freight Information | NSN 3455-00-517-6039
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3455-00-517-6039
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
