NSN 3455-00-324-5633 S/B 908RWDC 5/16X11/8 CONE BALL, SB908RWDC516X118CONEBALL, SL-2 DIA CUT
Product Details | ROTARY FILE
3455-00-324-5633 A cutting tool made in various shapes such as cylinders, globes, and cones whose working surface is provided with sharp teeth in the form of noncontinuous or continuous ridges. It is used for light shaping and smoothing of metals and other materials.
Part Alternates: S/B 908RWDC 5/16X11/8 CONE BALL, SB908RWDC516X118CONEBALL, SL-2 DIA CUT, SL2DIACUT, 08RW, 908RWDC, 3455-00-324-5633, 00-324-5633, 3455003245633, 003245633
Metalworking Machinery | Cutting Tools for Machine Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 28 NOV 1973 | 00-324-5633 | 05210 ( FILE, ROTARY ) |
Drawings & Photos | NSN 3455-00-324-5633
Demand History | NSN 3455-00-324-5633
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SL-2 DC | 2024-06-155 | 1270 | DIBBS |
| SL-2 DIA CUT | 2024-06-155 | 1270 | DIBBS |
| SL-2 DC | 2023-08-221 | 945 | DIBBS |
| SL-2 DIA CUT | 2023-08-221 | 945 | DIBBS |
| SL-2 DC | 2023-04-115 | 903 | DIBBS |
| SL-2 DIA CUT | 2023-04-115 | 903 | DIBBS |
| SL-2 DC | 2022-11-306 | 903 | DIBBS |
| SL-2 DIA CUT | 2022-11-306 | 903 | DIBBS |
| SL-2 DIA CUT | 2021-09-269 | 1398 | DIBBS |
| SL-2 DIA CUT | 2020-04-104 | 1042 | DIBBS |
| SL-2 DIA CUT | 2019-11-318 | 1257 | DIBBS |
| 3455-00-324-5633 | 2018-08-232 | 1042 | DIBBS |
| 3455-00-324-5633 | 2016-11-322 | 1004 | DIBBS |
| 3455-00-324-5633 | 2015-10-302 | 1004 | DIBBS |
| 3455-00-324-5633 | 2015-08-237 | 703 | DIBBS |
| 3455-00-324-5633 | 2014-10-275 | 662 | DIBBS |
| 3455-00-324-5633 | 2013-10-276 | 506 | DIBBS |
| 3455-00-324-5633 | 2013-04-95 | 506 | DIBBS |
Cross Reference | NSN 3455-00-324-5633
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3455-00-324-5633
Related Products | NSN 3455-00-324-5633
Technical Data | NSN 3455-00-324-5633
| Characteristic | Specifications |
|---|---|
| MATERIAL | TUNGSTEN CARBIDE |

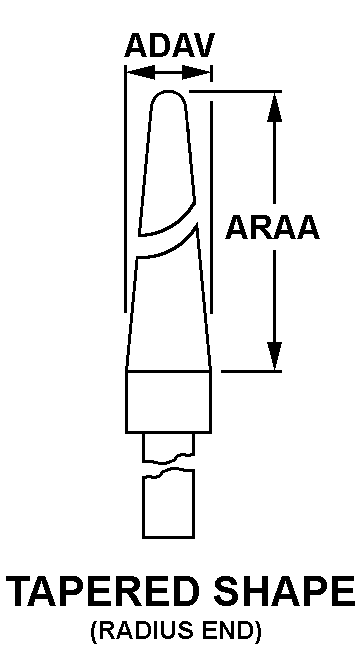

| STYLE DESIGNATOR | B9 TAPERED SHAPE |
| OVERALL DIAMETER | 0.312 INCHES NOMINAL |
| CUTTING SURFACE LENGTH | 1.125 INCHES NOMINAL |
| CUTTER TOOTH STYLE DESIGNATOR | C4 |
| CUTTER TOOTH CUT STYLE | DIAMOND CUT,22 TEETH PER IN. |
| CUTTER TOOTH SHAPING METHOD | GROUND FROM SOLID |
| MOUNTING SHANK | INCLUDED |
| REMOVABILITY FEATURE | NOT INCLUDED |
| SHAPE | STRAIGHT |
| DIAMETER | 0.2500 INCHES NOMINAL |
| LENGTH | 1.000 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 2.125 INCHES NOMINAL |
| SPECIAL FEATURES | 14 DEG INCLUDED ANGLE OF CONE; C-2 CARBIDE GRADE |
Restrictions/Controls & Freight Information | NSN 3455-00-324-5633
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3455-00-324-5633
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
