NSN 3455-00-222-4063 A7P-C, AA51146, A-A-51146

Product Details | ROTARY FILE

3455-00-222-4063 A cutting tool made in various shapes such as cylinders, globes, and cones whose working surface is provided with sharp teeth in the form of noncontinuous or continuous ridges. It is used for light shaping and smoothing of metals and other materials.

Part Alternates: A7P-C, AA51146, A-A-51146, AA51146B1A16A, AA51146B-1A16A, AA51146B1B16A, AA51146B-1B16A, A-73-C, N7P-C, H70-C, HG54C, H11ECC, H11-EC-C, GLA-C, G111C, G111-C, GGGF00340, GGG-F-00340, GLAC, H70C, A7PC, 11073R, 11073-R, 2503C, 2503-C, 28073R, 28073-R, 2HG54CG, 2HG54CG #SS CYL 1/2X1/2 ROUGH, 2HG54CGSSCYL12X12ROUGH, 33.040, 33.412, 33040, 33412, 4951040, 495-1040, 4951040C, 495-1040-C, 50049, 500AC, 500-A-C, 50559, 8818800, 88-18800, 8833000, 88-33000, A73C, N7PC, 3455-00-222-4063, 00-222-4063, 3455002224063, 002224063

Metalworking Machinery | Cutting Tools for Machine Tools

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
34	01 JAN 1963	00-222-4063	05210 ( FILE, ROTARY )

Drawings & Photos | NSN 3455-00-222-4063

Part Number	Request Date	QTY	Origin
3455-00-222-4063	2020-06-181	1	US
3455-00-222-4063	2019-07-203	105	DIBBS
3455-00-222-4063	2019-07-190	105	DIBBS
3455-00-222-4063	2018-07-211	106	DIBBS
3455-00-222-4063	2018-07-198	106	DIBBS

Cross Reference | NSN 3455-00-222-4063

Part Number	Cage Code	Manufacturer
11073-R	26462	GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON
2503-C	31786	JARVIS CORP
2503-C	56922	JARVIS CUTTING TOOLS INC.
28073-R	26462	GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON
2HG54CG	26462	GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON
2HG54CG #SS CYL 1/2X1/2 ROUGH	26462	GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON
33.040	26462	GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON
33.412	26462	GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON
495-1040	98387	FEDERAL-MOGUL CORP METAL REMOVAL/TOOLING DIV
495-1040-C	30961	FEDERAL-MOGUL CORP TARGET PRODUCTS DIV
495-1040-C	98387	FEDERAL-MOGUL CORP METAL REMOVAL/TOOLING DIV
500-A-C	59724	RICO TOOL CO INC
50049	43786	COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV
50559	43786	COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV
88-18800	28085	SIMONDS CUTTING TOOLS A WALLACE-MURRAY CORP
88-18800	54940	SIMONDS INDUSTRIES INC
88-33000	28085	SIMONDS CUTTING TOOLS A WALLACE-MURRAY CORP
88-33000	54940	SIMONDS INDUSTRIES INC
A-73-C	94687	BEAVER CUT ROTARY FILE CO
A-A-51146	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A7P-C	43786	COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV
AA51146B-1A16A	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA51146B-1B16A	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
G111-C	26190	ROTA FILE CORPORATION DBA ROTA TOOL
GGG-F-00340	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
GLA-C	18056	DOALL BALTIMORE COMPANY
GLA-C	54251	SEVERANCE TOOL INDUSTRIES INC.
GLA-C	81470	FULLERTON TOOL COMPANY INC
H11-EC-C	26190	ROTA FILE CORPORATION DBA ROTA TOOL
H70-C	94687	BEAVER CUT ROTARY FILE CO
HG54C	28085	SIMONDS CUTTING TOOLS A WALLACE-MURRAY CORP
HG54C	54940	SIMONDS INDUSTRIES INC
N7P-C	43786	COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3455-00-222-4063

Compare

Related Products | NSN 3455-00-222-4063

3455-00-222-4064, 3455-00-222-4065, 3455-00-222-4066, 3455-00-222-4068, 3455-00-222-4069

Technical Data | NSN 3455-00-222-4063

Characteristic	Specifications
MATERIAL	STEEL, HIGH SPEED

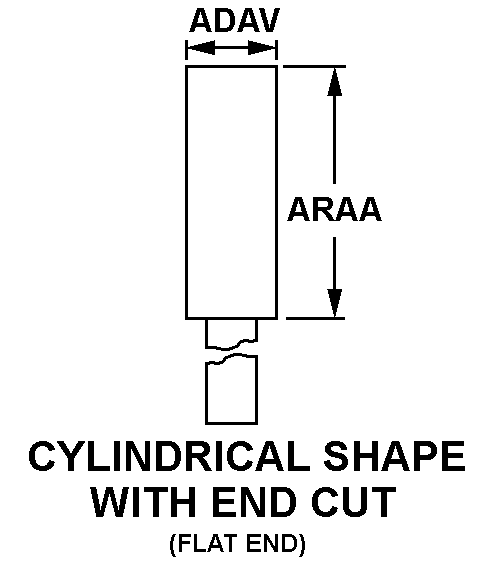

STYLE DESIGNATOR	B5A CYLINDRICAL SHAPE WITH END CUT
OVERALL DIAMETER	0.500 INCHES NOMINAL
CUTTING SURFACE LENGTH	1.000 INCHES NOMINAL
CUTTER TOOTH STYLE DESIGNATOR	C8
CUTTER TOOTH CUT STYLE	COARSE
CUTTER TOOTH SHAPING METHOD	HAND CUT
MOUNTING SHANK	INCLUDED
REMOVABILITY FEATURE	NOT INCLUDED
SHAPE	STRAIGHT
DIAMETER	0.250 INCHES NOMINAL
LENGTH	1.500 INCHES NOMINAL
SHANK OVERALL LENGTH	2.500 INCHES NOMINAL
SPECIAL FEATURES	RIGHT HAND SPIRAL FLUTING
NONDEFINITIVE SPEC/STD DATA	1 TYPE AND A STYLE AND 16 SIZE AND A CLASS
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-51146
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA51146B-1B16A

Restrictions/Controls & Freight Information | NSN 3455-00-222-4063

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	186620	TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	732	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3455-00-222-4063

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
