Product Details | ROTARY FILE

3455-00-215-8560 A cutting tool made in various shapes such as cylinders, globes, and cones whose working surface is provided with sharp teeth in the form of noncontinuous or continuous ridges. It is used for light shaping and smoothing of metals and other materials.

Part Alternates: AA51155, A-A-51155, AA51155B1B9B, AA51155B-1B9B, D-39-M, JLQ-M, R10PM, R10P-M, R10P, JLQ, JLQM, D39M, 101357, 2525, 28639CB, 33142WITHCBSPECIAL, 50753, 3455-00-215-8560, 00-215-8560, 3455002158560, 002158560

Metalworking Machinery | Cutting Tools for Machine Tools

Supply Group (FSG) NSN Assign. NIIN
34 04 MAY 1973 00-215-8560

Drawings & Photos | NSN 3455-00-215-8560


Demand History | NSN 3455-00-215-8560

Part Number Request Date QTY Origin
2525 2022-11-319 1 UM
3455-00-215-8560 2022-03-60 50 DIBBS
3455-00-215-8560 2019-11-328 5 DIBBS
2525 2018-10-277 1
3455-00-215-8560 2018-08-220 4 DIBBS
3455-00-215-8560 2016-04-96 2 DIBBS
3455-00-215-8560 2016-01-04 20 DIBBS
3455-00-215-8560 2015-12-355 20 DIBBS

Cross Reference | NSN 3455-00-215-8560

Part Number Cage Code Manufacturer
101357 31786 JARVIS CORP
101357 56922 JARVIS CUTTING TOOLS INC.
2525 31786 JARVIS CORP
2525 56922 JARVIS CUTTING TOOLS INC.
28639CB 26462 GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON
33.142 WITH C/B (SPECIAL) 26462 GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON
50753 43786 COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV
A-A-51155 58536 FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA51155B-1B9B 58536 FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
D-39-M 94687 BEAVER CUT ROTARY FILE CO
JLQ 54251 SEVERANCE TOOL INDUSTRIES INC.
JLQ-M 81470 FULLERTON TOOL COMPANY INC
R10P 43786 COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV
R10P-M 43786 COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3455-00-215-8560

Technical Data | NSN 3455-00-215-8560

Characteristic Specifications
MATERIAL STEEL, HIGH SPEED

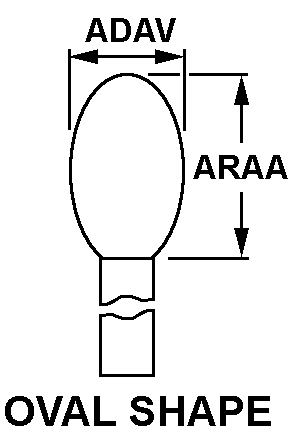

STYLE DESIGNATOR B17 OVAL SHAPE
OVERALL DIAMETER 0.750 INCHES NOMINAL
CUTTING SURFACE LENGTH 1.000 INCHES NOMINAL
CUTTER TOOTH STYLE DESIGNATOR C7
CUTTER TOOTH CUT STYLE MEDIUM
CUTTER TOOTH SHAPING METHOD GROUND FROM SOLID
MOUNTING SHANK INCLUDED
REMOVABILITY FEATURE NOT INCLUDED
SHAPE STRAIGHT
DIAMETER 0.250 INCHES NOMINAL
LENGTH ANY ACCEPTABLE
SHANK OVERALL LENGTH ANY ACCEPTABLE
FEATURES PROVIDED CHIPBREAKER
NONDEFINITIVE SPEC/STD DATA 1 TYPE AND B STYLE AND 10 SIZE AND B CLASS
MANUFACTURERS CODE 58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE A-A-51155
MANUFACTURERS CODE 58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AA51155B-1B9B

Restrictions/Controls & Freight Information | NSN 3455-00-215-8560

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3455-00-215-8560

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
