NSN 3455-00-140-3048 SH-41, SH41M, SH-41-M
Product Details | ROTARY FILE
3455-00-140-3048 A cutting tool made in various shapes such as cylinders, globes, and cones whose working surface is provided with sharp teeth in the form of noncontinuous or continuous ridges. It is used for light shaping and smoothing of metals and other materials.
Part Alternates: SH-41, SH41M, SH-41-M, 155937, 32.868, 32868, 4XBW, 4XBWM, 4XBW-M, 52747, 73608, 9TF3CW, A11, A-11, JP1, JP-1, P1, SH41, 3455-00-140-3048, 00-140-3048, 3455001403048, 001403048
Metalworking Machinery | Cutting Tools for Machine Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 01 SEP 1971 | 00-140-3048 | 05210 ( FILE, ROTARY ) |
Drawings & Photos | NSN 3455-00-140-3048
Demand History | NSN 3455-00-140-3048
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3455-00-140-3048 | 2017-06-173 | 569 | DIBBS |
Cross Reference | NSN 3455-00-140-3048
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 155937 | 31786 | JARVIS CORP |
| 155937 | 56922 | JARVIS CUTTING TOOLS INC. |
| 32.868 | 26462 | GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON |
| 4XBW | 43786 | COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV |
| 4XBW-M | 43786 | COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV |
| 52747 | 43786 | COOPER INDUSTRIES INC NICHOLSON FILE/COOPER TOOLS DIV |
| 73608 | 42970 | LEAR SIEGLER INC NATIONAL TWIST DRILL AND TOOL DIV |
| 9TF3CW | 26462 | GROBET FILE COMPANY OF AMERICA INC. DBA WILLIAM DIXON |
| A-11 | 26190 | ROTA FILE CORPORATION DBA ROTA TOOL |
| JP-1 | 31786 | JARVIS CORP |
| JP-1 | 56922 | JARVIS CUTTING TOOLS INC. |
| P1 | 97308 | ATRAX-NEWCARB CORP |
| SH-41 | 64700 | ROGERS TOOL WORKS INC DBA RTW |
| SH-41 | 81470 | FULLERTON TOOL COMPANY INC |
| SH-41 | 94687 | BEAVER CUT ROTARY FILE CO |
| SH-41-M | 55275 | TUNGSTEN INDUSTRIES |
| SH-41-M | 64700 | ROGERS TOOL WORKS INC DBA RTW |
| SH-41-M | 81470 | FULLERTON TOOL COMPANY INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3455-00-140-3048
Related Products | NSN 3455-00-140-3048
Technical Data | NSN 3455-00-140-3048
| Characteristic | Specifications |
|---|---|
| MATERIAL | CARBIDE |

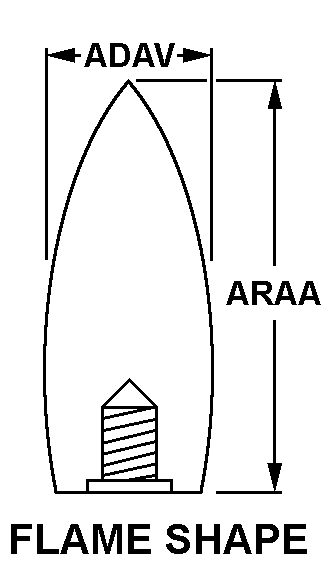

| STYLE DESIGNATOR | B13 FLAME SHAPE |
| OVERALL DIAMETER | 0.125 INCHES NOMINAL |
| CUTTING SURFACE LENGTH | 0.250 INCHES NOMINAL |
| CUTTER TOOTH STYLE DESIGNATOR | C1 |
| CUTTER TOOTH CUT STYLE | MEDIUM |
| CUTTER TOOTH SHAPING METHOD | GROUND FROM SOLID |
| MOUNTING SHANK | INCLUDED |
| REMOVABILITY FEATURE | NOT INCLUDED |
| SHAPE | STRAIGHT |
| DIAMETER | 0.125 INCHES NOMINAL |
| LENGTH | 1.250 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 1.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 97308 |
| DESIGN CONTROL REFERENCE | P1 |
Restrictions/Controls & Freight Information | NSN 3455-00-140-3048
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3455-00-140-3048
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
