NSN 3439-01-158-0731 ASTM B32, ASTMB32, SN60PB40-WRAP2-0--025 1LB
Product Details | TIN ALLOY SOLDER
3439-01-158-0731 A solder whose main ingredient is tin. It is supplied in form of wire, bar, strip, or grains (granular).
Part Alternates: ASTM B32, ASTMB32, SN60PB40-WRAP2-0--025 1LB , SN60PB40WRAP2-0-025 1LB SPOOL, SN60PB40WRAP200251LB, SN60PB40WRAP200251LBSPOOL, SN60WRAP2-0-025 1LB SPOOL, SN60WRAP200251LBSPOOL, SN60WRAP2-0-025-1LBSPOOL, IPC J-STD-006, IPCJSTD006, QQS571E, QQ-S-571E, 3439-01-158-0731, 01-158-0731, 3439011580731, 011580731
Metalworking Machinery | Miscellaneous Welding, Soldering, and Brazing Supplies and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 15 JUL 1983 | 01-158-0731 | 04987 ( SOLDER, TIN ALLOY ) |

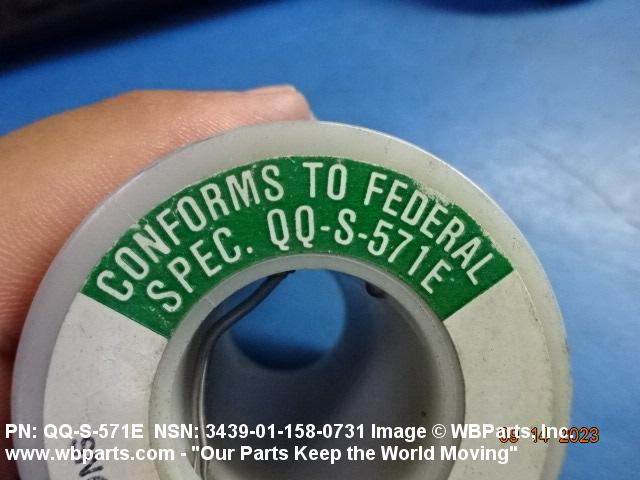

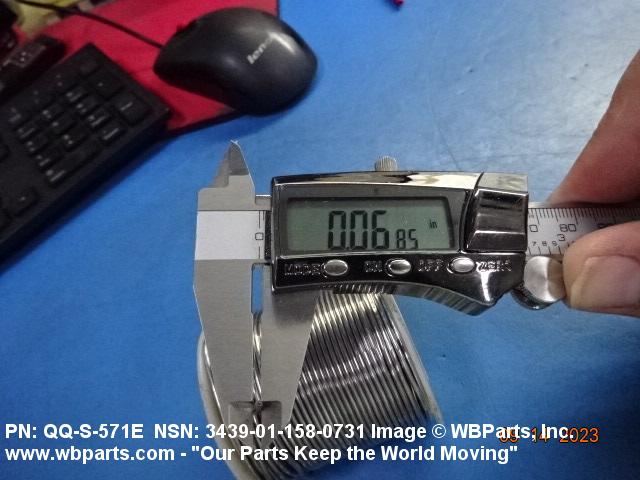

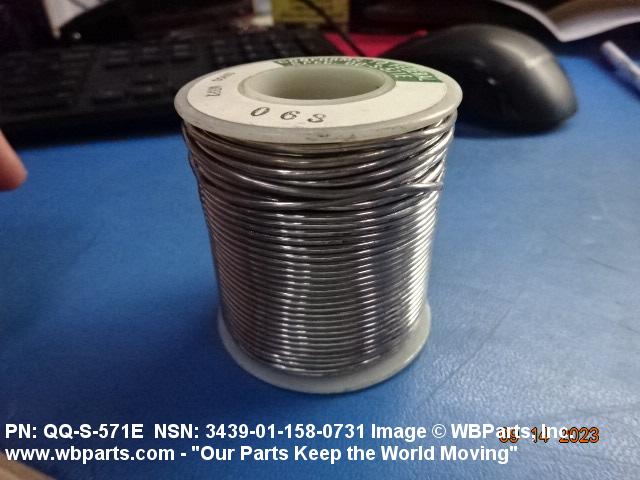

Drawings & Photos | NSN 3439-01-158-0731
Demand History | NSN 3439-01-158-0731
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3439-01-158-0731 | 2024-06-171 | 8 | DIBBS |
| 3439-01-158-0731 | 2024-05-150 | 1 | DIBBS |
| 3439-01-158-0731 | 2023-08-240 | 4 | United States |
| 3439-01-158-0731 | 2020-03-65 | 1 | US |
| 3439-01-158-0731 | 2019-12-344 | 1 | DIBBS |
| 3439-01-158-0731 | 2019-10-281 | 7 | DIBBS |
| 3439-01-158-0731 | 2019-06-178 | 7 | DIBBS |
| ASTMB32 | 2015-04-92 | 3 | US |
| QQS571E | 2014-10-286 | 16 | us |
Cross Reference | NSN 3439-01-158-0731
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ASTM B32 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| IPC J-STD-006 | 51832 | IPC INTERNATIONAL INC. DBA IPC ASSOCIATION CONNECTING |
| QQ-S-571E | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| SN60PB40-WRAP2-0--025 1LB | 51832 | IPC INTERNATIONAL INC. DBA IPC ASSOCIATION CONNECTING |
| SN60PB40WRAP2-0-025 1LB SPOOL | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| SN60WRAP2-0-025 1LB SPOOL | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| SN60WRAP2-0-025-1LBSPOOL | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3439-01-158-0731
Related Products | NSN 3439-01-158-0731
Technical Data | NSN 3439-01-158-0731
| Characteristic | Specifications |
|---|---|
| CHEMICAL COMPOSITION PERCENTAGE | TIN 60.5; LEAD 38.9 |
| PHYSICAL FORM | WIRE |
| WIRE CORE TYPE | ROSIN |
| DIAMETER | 0.025 INCHES NOMINAL |
| CONTENT WITHIN EACH UNIT PACKAGE | ONE LB. |
| UNIT PACKAGE TYPE | SPOOL |
| SPECIAL FEATURES | SHORT MELTING RANGE |
Restrictions/Controls & Freight Information | NSN 3439-01-158-0731
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136440 | SOLDER NOI O/T W/GOLD ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 746 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3439-01-158-0731
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 5 | Hazardous Material (non-specified), item's unique formulations may produce different hazardous classes. Consult item's Material Safety Data Sheet (MSDS) or container warning label. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
