Product Details | PLAIN BEARING UNIT

3130-01-254-5470 An assembled unit, composed of a housing incorporating a plain bearing, or bearings, designed to meet various or specific conditions of mounting.

Part Alternates: 12354710, 3130-01-254-5470, 01-254-5470, 3130012545470, 012545470

Bearings | Bearings, Mounted

Supply Group (FSG) NSN Assign. NIIN
31 07 MAY 1987 01-254-5470

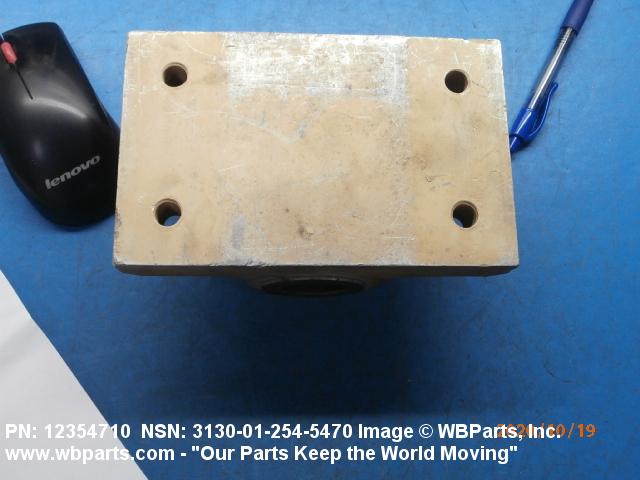

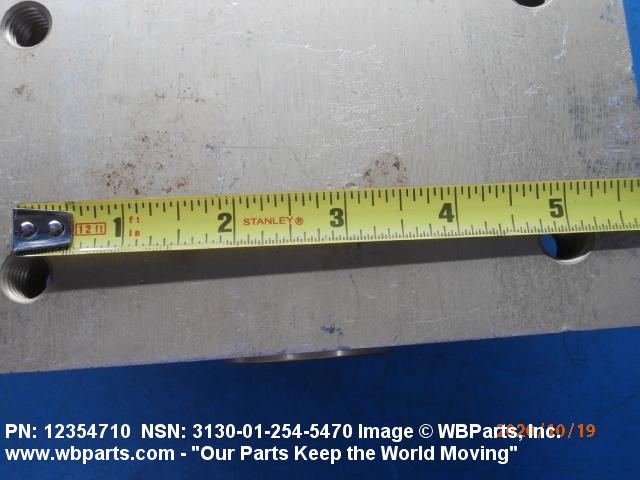

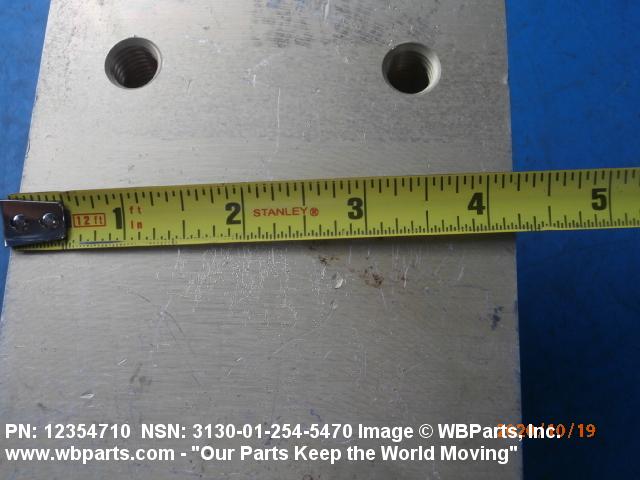

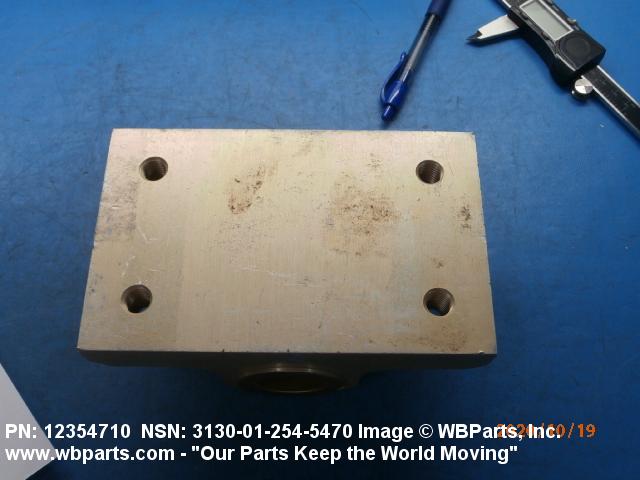

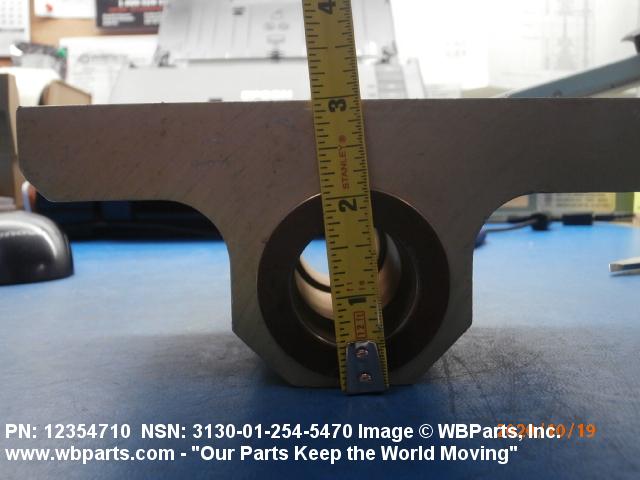

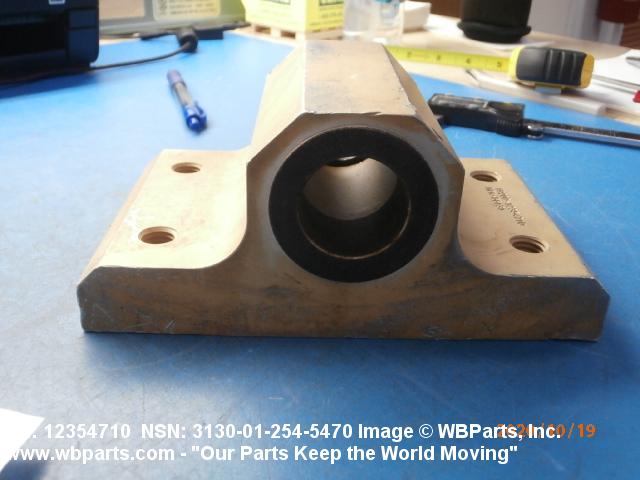

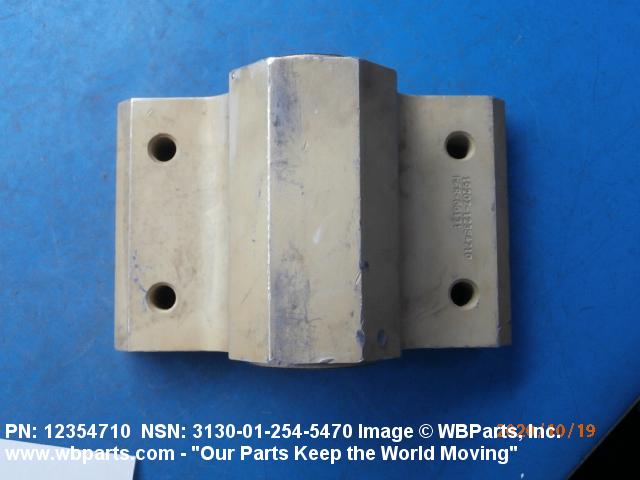

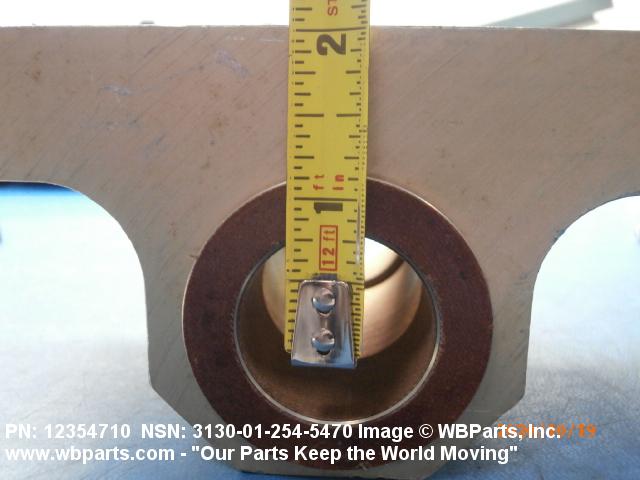

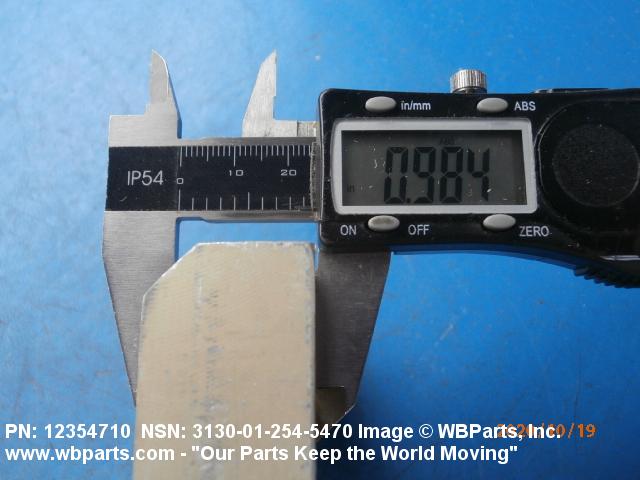

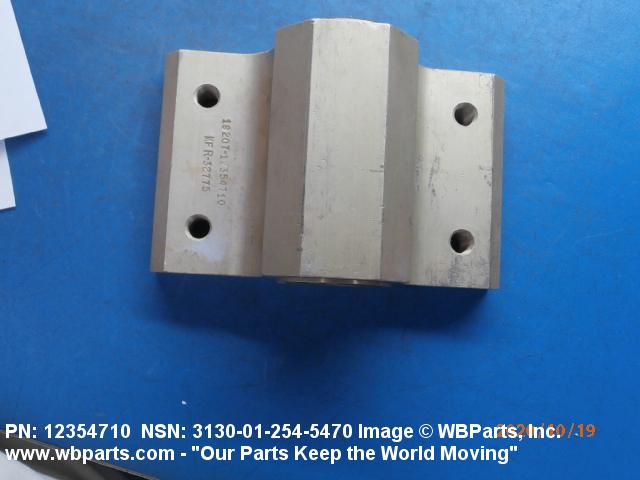

Drawings & Photos | NSN 3130-01-254-5470


Demand History | NSN 3130-01-254-5470

Part Number Request Date QTY Origin
3130-01-254-5470 2024-05-149 1 United States
3130-01-254-5470 2024-04-94 1 United States
3130-01-254-5470 2024-01-04 65 DIBBS
3130-01-254-5470 2023-08-228 35 DIBBS
3130-01-254-5470 2020-09-247 1 Malaysia
3130-01-254-5470 2017-12-348 71 DIBBS
3130-01-254-5470 2017-12-339 71 DIBBS
3130-01-254-5470 2017-10-298 98 DIBBS
3130-01-254-5470 2017-10-290 98 DIBBS
3130-01-254-5470 2014-11-307 61 DIBBS
3130-01-254-5470 2014-10-299 61 DIBBS
3130-01-254-5470 2013-04-108 93 DIBBS
3130-01-254-5470 2013-04-93 93 DIBBS
3130-01-254-5470 2012-05-136 19 DIBBS
3130-01-254-5470 2010-11-328 32 DIBBS
3130-01-254-5470 2009-06-163 203 DIBBS
3130-01-254-5470 2009-02-34 43 DIBBS
3130-01-254-5470 2008-05-122 22 DIBBS
3130-01-254-5470 2008-05-122 90 DIBBS

Cross Reference | NSN 3130-01-254-5470

Part Number Cage Code Manufacturer

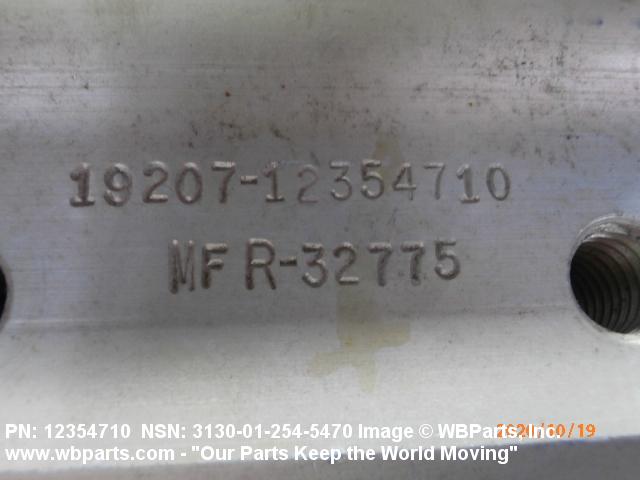

12354710 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3130-01-254-5470

Technical Data | NSN 3130-01-254-5470

Characteristic Specifications

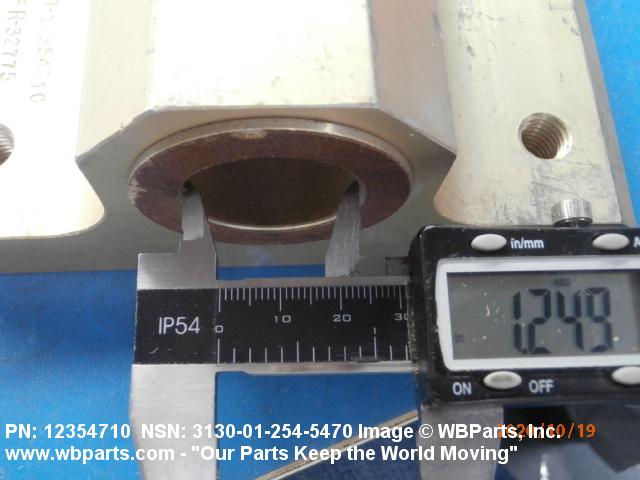

BORE DIAMETER 1.4383 INCHES MINIMUM AND 1.4393 INCHES MAXIMUM
MATERIAL ALUMINUM ALLOY 2024 AND PLASTIC POLYTETRAFLUOROETHYLENE BEARING ALUMINUM ALLOY HOUSING
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-200/3 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/6 FED SPEC 1ST MATERIAL RESPONSE BEARING
SURFACE TREATMENT CHROMATE HOUSING
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-C-5541,CLASS 1A MIL SPEC SINGLE TREATMENT RESPONSE HOUSING

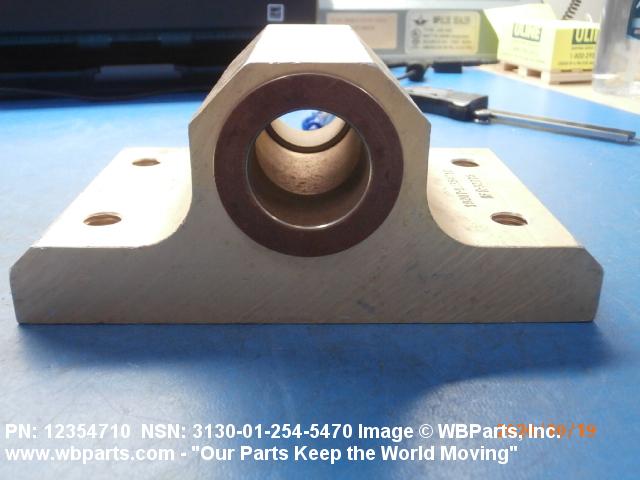

STYLE DESIGNATOR A17 PILLOW BLOCK, SOLID
BASE THICKNESS 1.000 INCHES NOMINAL

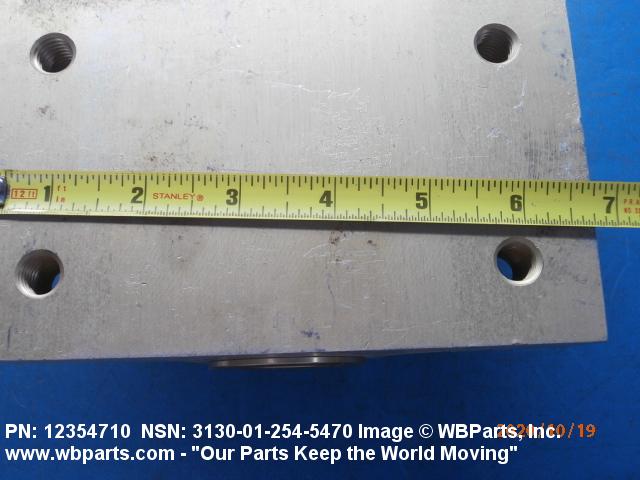

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH 5.000 INCHES NOMINAL
HOUSING HEIGHT 3.000 INCHES NOMINAL
HOUSING LENGTH 4.250 INCHES NOMINAL
HOUSING WIDTH 6.750 INCHES NOMINAL
BASE LENGTH 4.250 INCHES NOMINAL
HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE 1.875 INCHES NOMINAL

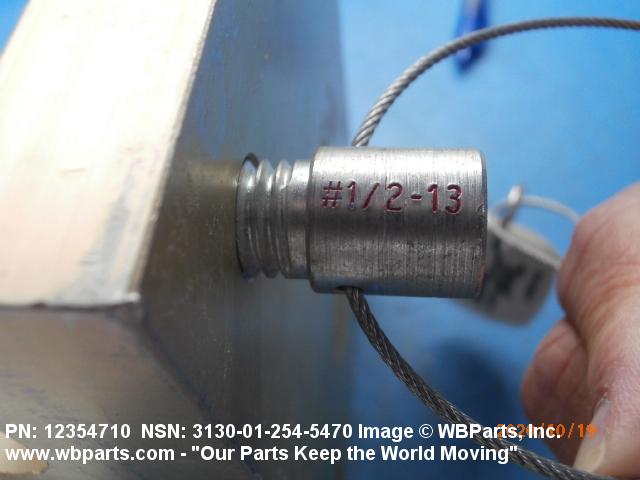

MOUNTING HOLE TYPE ROUND, THREADED
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.500 INCHES
THREAD QUANTITY PER INCH 13
ALIGNMENT TYPE RIGID
SHAFT END TYPE OPEN
LOAD CAPABILITY TYPE RADIAL
SPECIAL FEATURES PROVIDED WITH 2 BEARING M81934/2-20A032 ONE ON EACH END OF HOUSING BORE

Restrictions/Controls & Freight Information | NSN 3130-01-254-5470

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 114820 BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 742 unknown
Originating Activity Code KH Defense Industrial Supply Center
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3130-01-254-5470

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
