NSN 3130-01-095-3513 Z850X10C01, 40092703, 4009270-3
Product Details | BALL BEARING UNIT
3130-01-095-3513 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: Z850X10C01, 40092703, 4009270-3, 3130-01-095-3513, 01-095-3513, 3130010953513, 010953513
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 DEC 1996 | 01-095-3513 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-01-095-3513
Demand History | NSN 3130-01-095-3513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4009270-3 | 2025-03-70 | 180 | DIBBS |
| 3130-01-095-3513 | 2025-01-10 | 3 | United States |
| 3130-01-095-3513 | 2024-08-236 | 60 | United States |
| 3130-01-095-3513 | 2024-08-236 | 60 | United States |
| 4009270-3 | 2022-03-87 | 22 | DIBBS |
| 3130-01-095-3513 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3130-01-095-3513 | 2016-05-131 | 1 | DIBBS-RFPs |
| 3130-01-095-3513 | 2015-03-64 | 4 | PT |
| 3130-01-095-3513 | 2012-04-94 | 81 | DIBBS |
| 3130-01-095-3513 | 2008-11-322 | 6 | US |
| 3130-01-095-3513 | 2008-05-129 | 2 | Colombia |
| 3130-01-095-3513 | 2008-05-127 | 206 | DIBBS |
| 3130-01-095-3513 | 2007-03-67 | 179 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-095-3513
Related Products | NSN 3130-01-095-3513
Technical Data | NSN 3130-01-095-3513
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 0.2000 INCHES NOMINAL |
| MATERIAL | TITANIUM OVERALL |

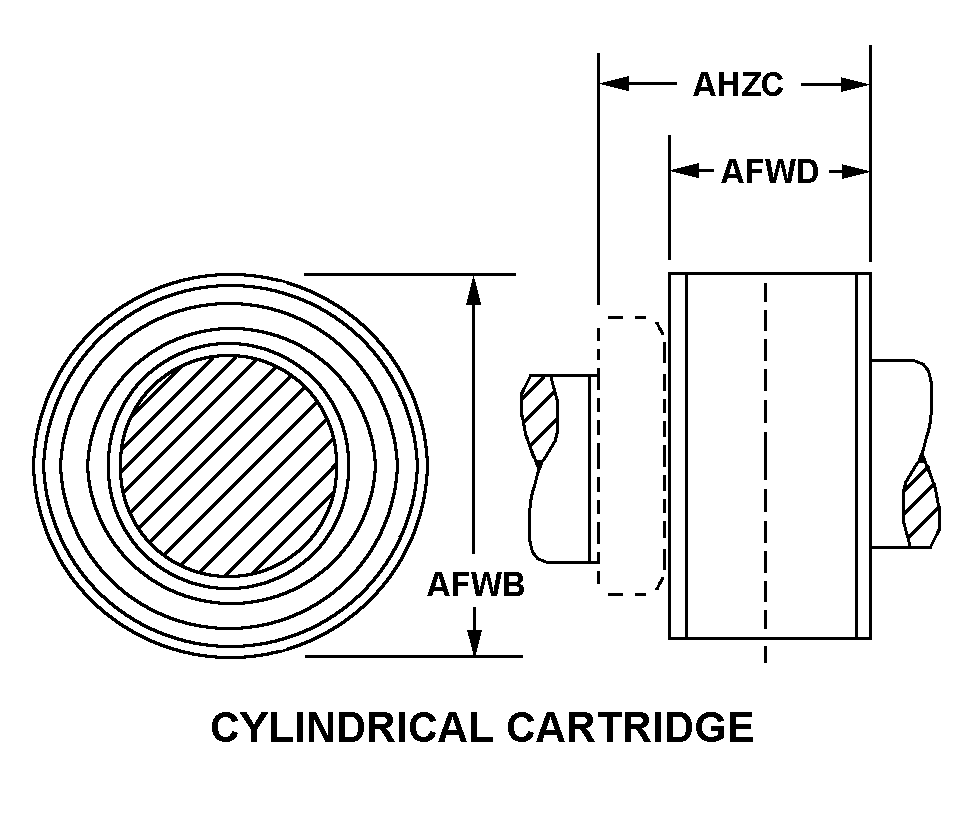

| STYLE DESIGNATOR | A50 CYLINDRICAL CARTRIDGE |
| HOUSING DIAMETER | 1.376 INCHES NOMINAL |
| HOUSING LENGTH | 0.156 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 0.401 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.200 INCHES NOMINAL |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | RIGID |
| BLOCK TYPE | FIXED |
| ROTATING ELEMENT LOCKING METHOD | STRAIGHT SLEEVE |
| LOAD CAPABILITY TYPE | RADIAL |
Restrictions/Controls & Freight Information | NSN 3130-01-095-3513
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | 96 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-01-095-3513
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
