NSN 3130-00-921-0477 RCJT1A2485, RJCT11V , 10861444
Product Details | BALL BEARING UNIT
3130-00-921-0477 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: RCJT1A2485, RJCT11V , 10861444 , 300723, 3130-00-921-0477, 00-921-0477, 3130009210477 , 009210477
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 11 DEC 1965 | 00-921-0477 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-00-921-0477
Demand History | NSN 3130-00-921-0477
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3130-00-921-0477 | 2021-09-245 | 23 | United States |
| 3130-00-921-0477 | 2021-07-203 | 24 | United States |
| 3130-00-921-0477 | 2020-09-271 | 480 | DIBBS |
| 3130-00-921-0477 | 2020-08-215 | 8 | DIBBS |
| 3130-00-921-0477 | 2020-03-65 | 347 | DIBBS |
| 3130-00-921-0477 | 2020-02-34 | 347 | DIBBS |
| 3130-00-921-0477 | 2018-07-185 | 355 | DIBBS |
| 3130-00-921-0477 | 2017-08-223 | 50 | United States |
| 10861444 | 2017-07-192 | 27 | PK |
| 3130-00-921-0477 | 2017-07-192 | 27 | MANUAL |
| 3130-00-921-0477 | 2017-04-95 | 5 | United States |
| 3130-00-921-0477 | 2016-07-195 | 248 | DIBBS |
| 3130-00-921-0477 | 2015-06-158 | 259 | DIBBS |
| 3130-00-921-0477 | 2014-07-208 | 128 | DIBBS |
| 3130-00-921-0477 | 2014-03-62 | 122 | DIBBS |
| RCJT1A2485 | 2011-01-26 | 34 | US |
| 3130-00-921-0477 | 2007-11-309 | 38 | DIBBS |
| 3130-00-921-0477 | 2007-10-284 | 15 | DIBBS |
Cross Reference | NSN 3130-00-921-0477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10861444 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 300723 | H0G87 | WIBA ZEVENAAR B.V. |
| 3130009210477 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| RCJT1A2485 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| RCJT1A2485 | KCWY9 | BEARING TRANSMISSION AND LUBRICANT SUPPLIES LTD |
| RJCT11V | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-00-921-0477
Related Products | NSN 3130-00-921-0477
Technical Data | NSN 3130-00-921-0477
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.0005 INCHES MAXIMUM |
| MATERIAL | IRON CAST HOUSING |

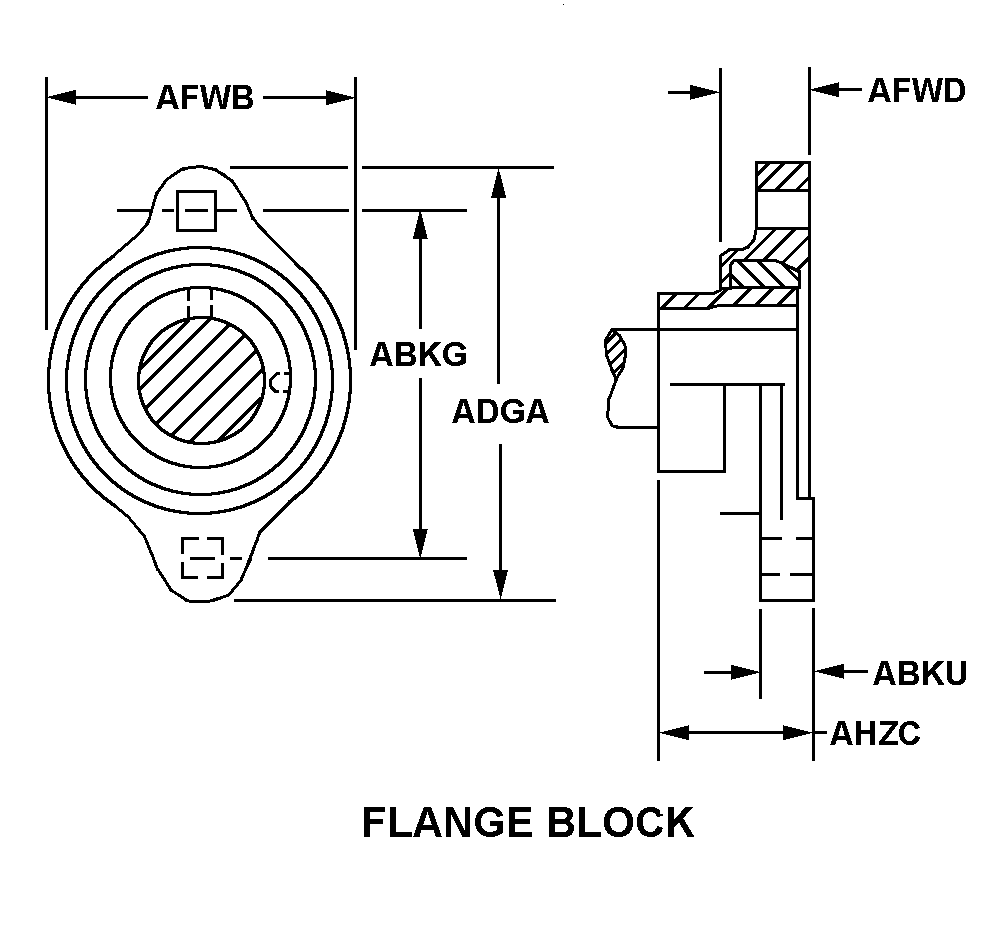

| STYLE DESIGNATOR | A30 FLANGE BLOCK |
| BOLT CIRCLE DIAMETER | 3.920 INCHES NOMINAL |
| FLANGE THICKNESS | 0.560 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 4.890 INCHES NOMINAL |
| HOUSING DIAMETER | 2.750 INCHES NOMINAL |
| HOUSING LENGTH | 1.380 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 1.840 INCHES NOMINAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3130-00-921-0477
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-00-921-0477
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
