NSN 3130-00-899-3949 1541031-14, 00-899-3949, 154103114
Product Details | PLAIN BEARING UNIT
3130-00-899-3949 An assembled unit, composed of a housing incorporating a plain bearing, or bearings, designed to meet various or specific conditions of mounting.
Part Alternates: 1541031-14, 3130-00-899-3949, 00-899-3949, 3130008993949, 154103114, 008993949
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 03 FEB 1967 | 00-899-3949 | 30557 ( BEARING UNIT, PLAIN ) |

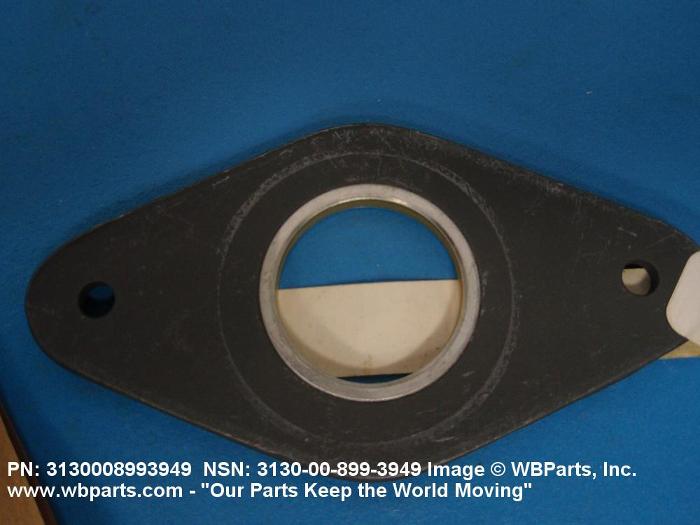

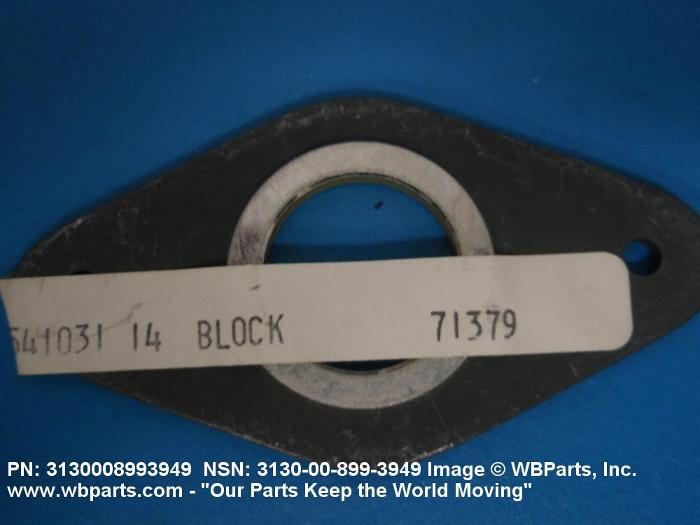

Drawings & Photos | NSN 3130-00-899-3949
Demand History | NSN 3130-00-899-3949
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 154103114 | 2011-03-66 | 1 | United States |
Cross Reference | NSN 3130-00-899-3949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1541031-14 | 71379 | CESSNA AIRCRAFT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-00-899-3949
Related Products | NSN 3130-00-899-3949
Technical Data | NSN 3130-00-899-3949
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.0000 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BEARING ALUMINUM ALLOY HOUSING |
| STYLE DESIGNATOR | A30 FLANGE BLOCK |
| BOLT CIRCLE DIAMETER | 2.9000 INCHES NOMINAL |
| FLANGE THICKNESS | 0.1250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.6600 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.1930 INCHES NOMINAL |
| ALIGNMENT TYPE | RIGID |
| SHAFT END TYPE | OPEN |
| MANUFACTURERS CODE | 71379 |
| DESIGN CONTROL REFERENCE | 1541031-14 |
Restrictions/Controls & Freight Information | NSN 3130-00-899-3949
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
