NSN 3130-00-231-3672 SP52 7-8, SP5278, SP52SA20514
Product Details | BALL BEARING UNIT
3130-00-231-3672 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: SP52 7-8, SP5278, SP52SA20514, SP52SA205-14, SSP14, P520146, P52-0146, PB7-8, 64503PS, PB78, 3130-00-231-3672, 00-231-3672, 3130002313672, 002313672
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 MAY 1973 | 00-231-3672 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-00-231-3672
Cross Reference | NSN 3130-00-231-3672
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 64503PS | 71041 | ALTRA HOLDINGS, INC. DIV BOSTON GEAR |
| P52-0146 | 52676 | SKF USA INC. |
| PB7-8 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| SP52 7-8 | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| SP52SA205-14 | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| SSP14 | 02695 | MORSE INDUSTRIAL CORP SEALMASTER BEARING DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-00-231-3672
Related Products | NSN 3130-00-231-3672
Technical Data | NSN 3130-00-231-3672
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 0.8750 INCHES NOMINAL |
| MATERIAL | STEEL BEARING STEEL HOUSING RUBBER SYNTHETIC SEAL |

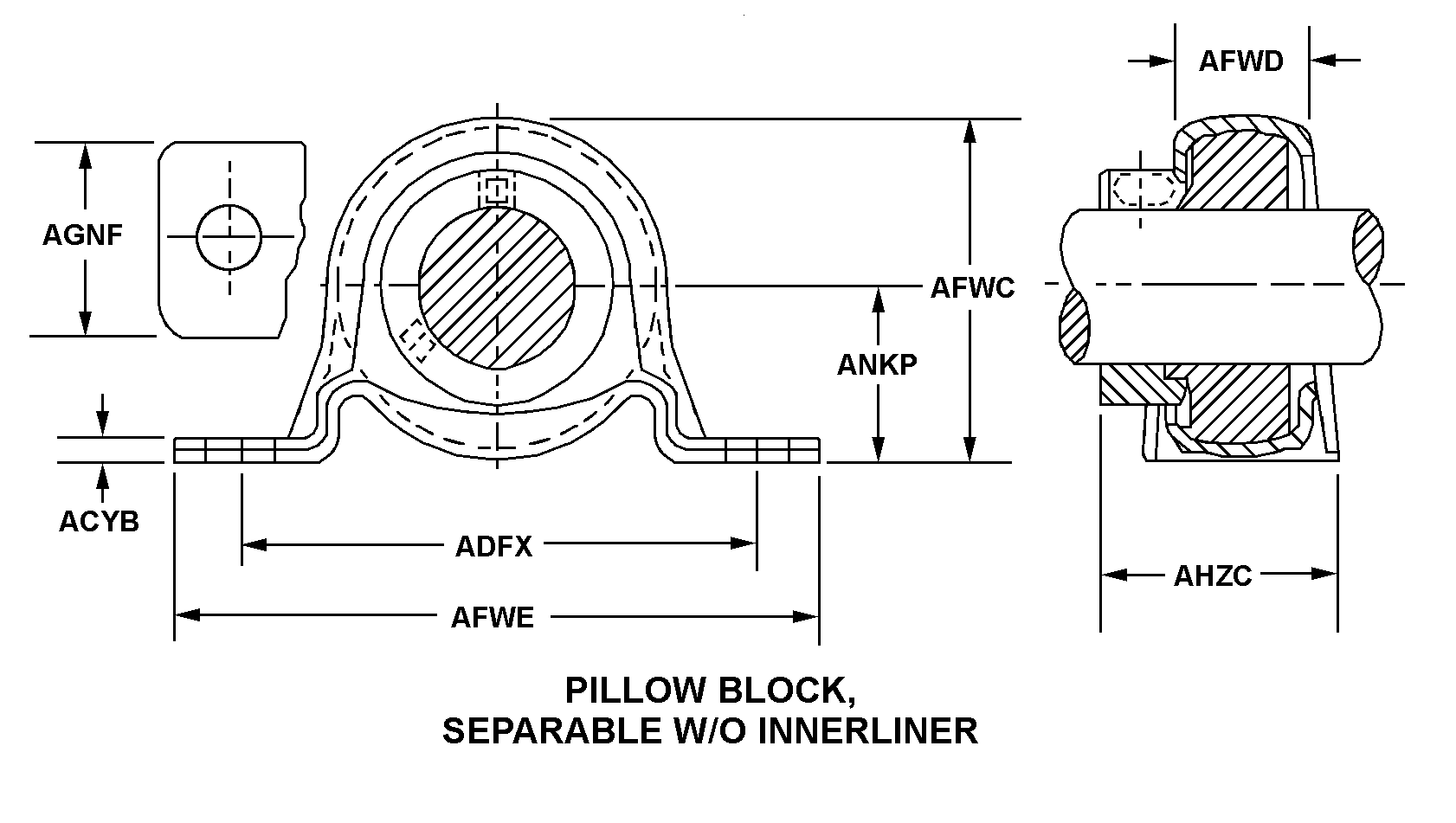

| STYLE DESIGNATOR | A25 PILLOW BLOCK, SEPARABLE W/O INNERLINER |
| BASE THICKNESS | 0.1200 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 3.3750 INCHES NOMINAL |
| HOUSING HEIGHT | 2.2031 INCHES NOMINAL |
| HOUSING LENGTH | 0.8594 INCHES NOMINAL |
| HOUSING WIDTH | 4.2500 INCHES NOMINAL |
| BASE LENGTH | 1.2500 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 1.5312 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 1.1250 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.4375 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | CONTACT |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | DIRECT |
| LOAD CAPABILITY TYPE | RADIAL AND THRUST |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
Restrictions/Controls & Freight Information | NSN 3130-00-231-3672
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-00-231-3672
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
