NSN 3120-01-600-2895 FF10132, FF-1013-2, 10017273
Product Details | SLEEVE BEARING
3120-01-600-2895 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: FF10132, FF-1013-2, 10017273 , 3120-01-600-2895, 01-600-2895, 3120016002895, 016002895
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 NOV 2011 | 01-600-2895 | 13205 ( BEARING, SLEEVE ) |

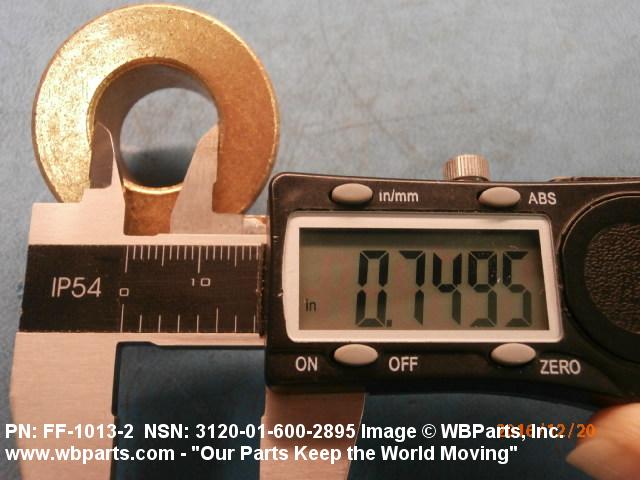

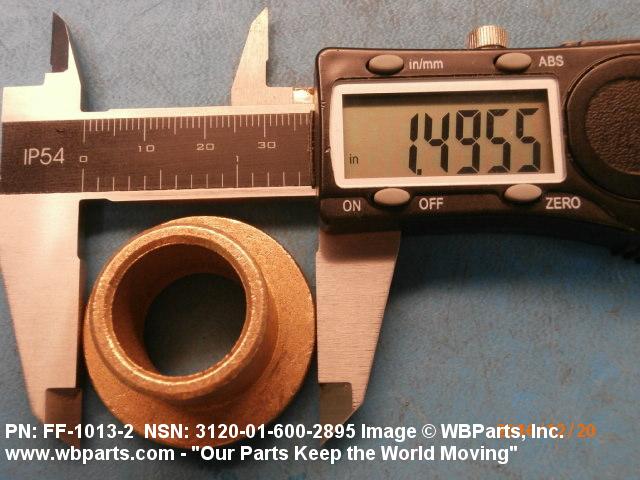

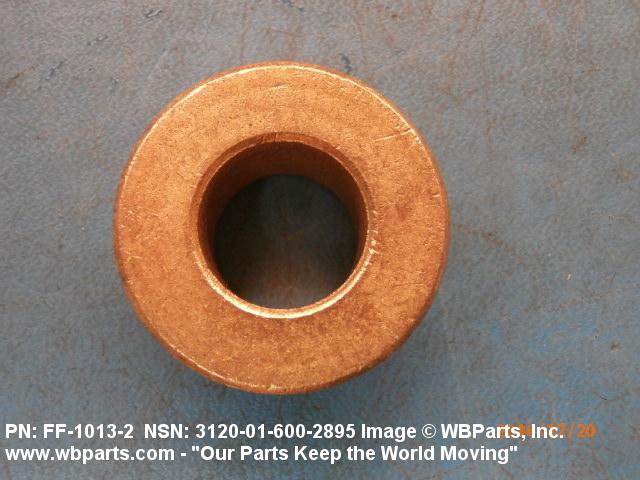

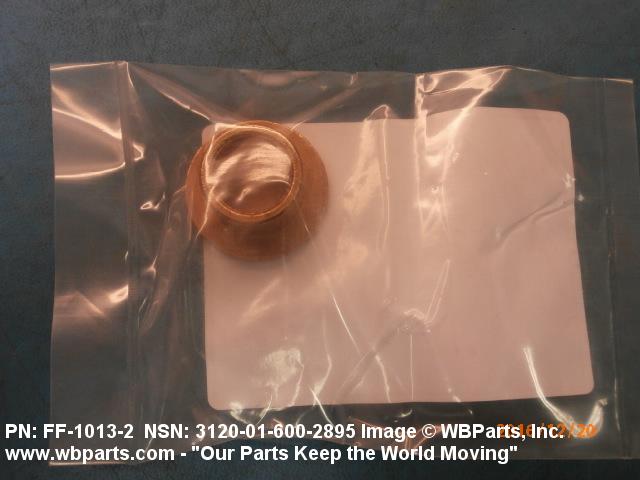

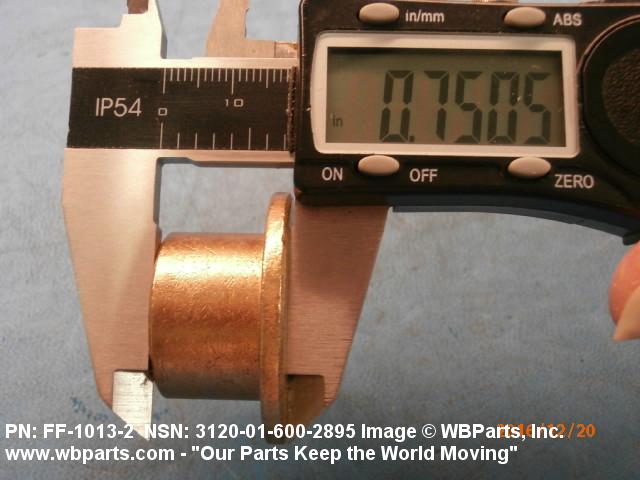

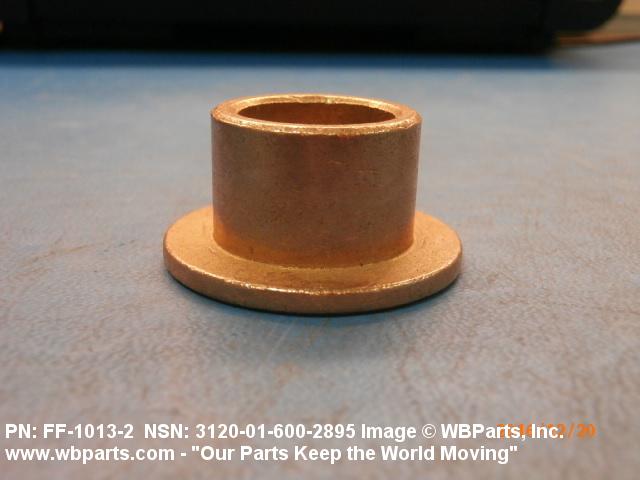

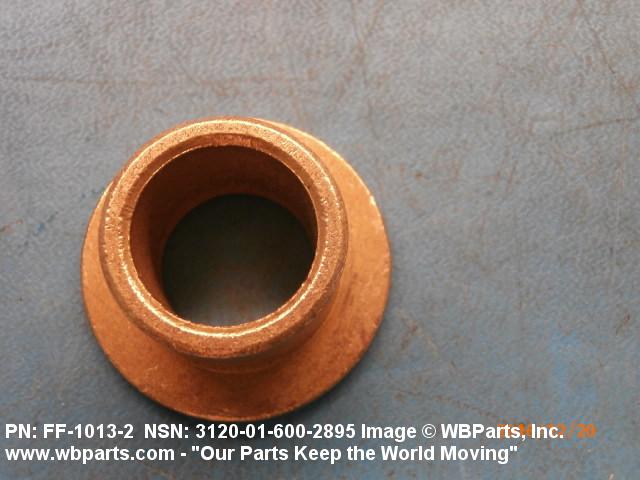

Drawings & Photos | NSN 3120-01-600-2895
Demand History | NSN 3120-01-600-2895
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FF10132 | 2016-12-342 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-600-2895
Technical Data | NSN 3120-01-600-2895
| Characteristic | Specifications |
|---|---|
| FLANGE OUTSIDE DIAMETER | 1.50 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.0 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.75 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL:OILITE,TYPE:FLANGE |
| OVERALL LENGTH | 0.75 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-01-600-2895
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
