NSN 3120-01-581-4171 NAS77C4011, NAS77C4-011, 01-581-4171
Product Details | SLEEVE BUSHING
3120-01-581-4171 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS77C4011, NAS77C4-011, 3120-01-581-4171, 01-581-4171, 3120015814171, 015814171
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 14 JAN 2010 | 01-581-4171 | 13206 ( BUSHING, SLEEVE ) |

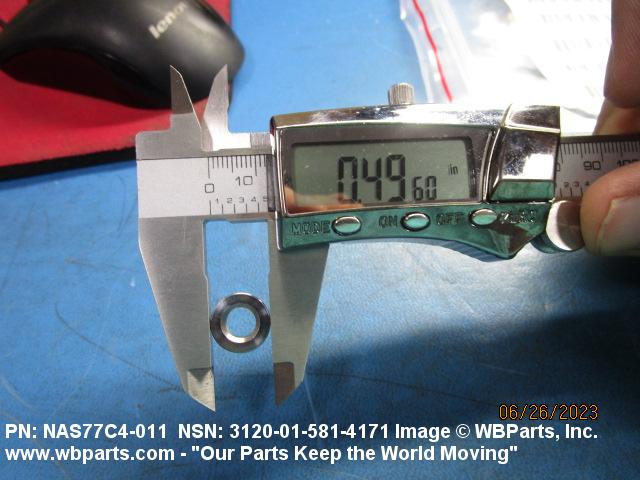

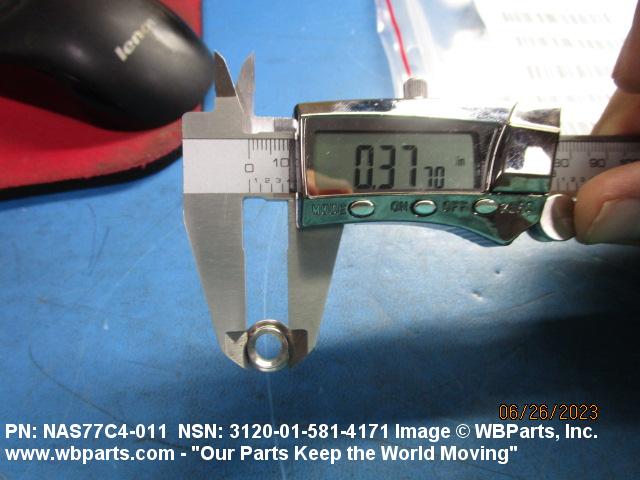

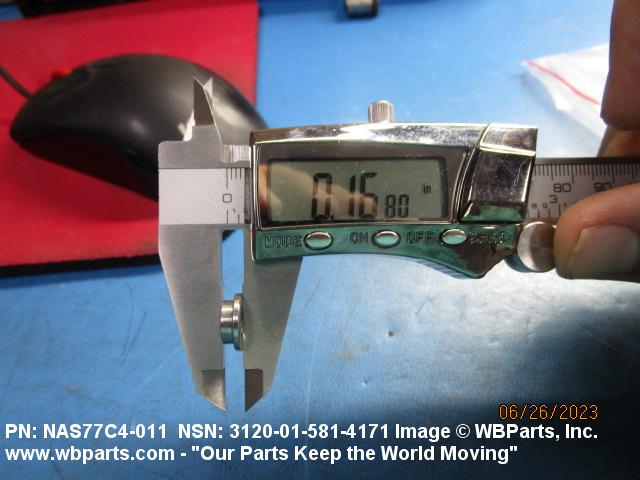

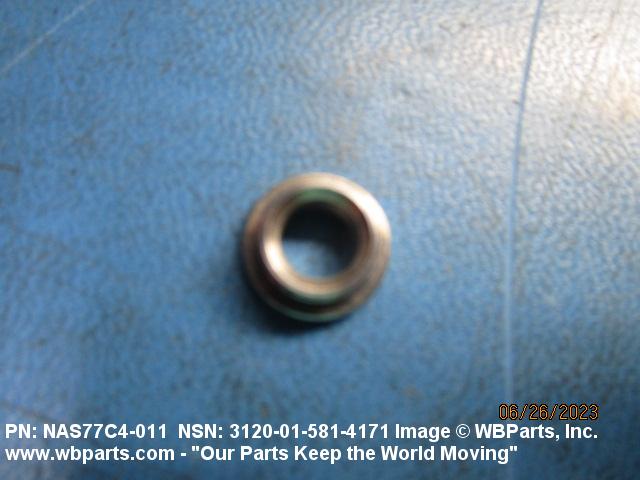

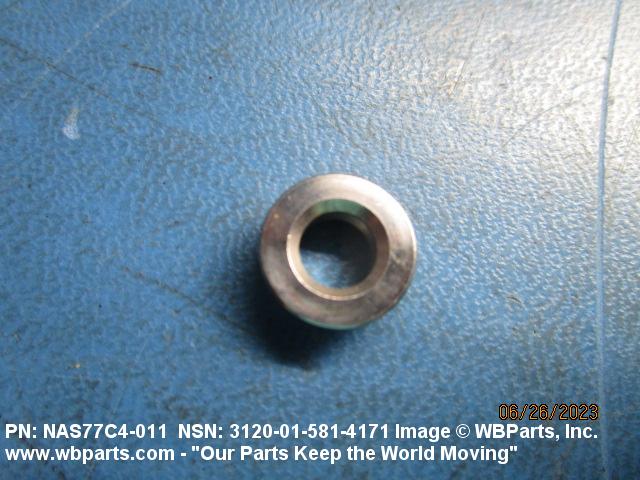

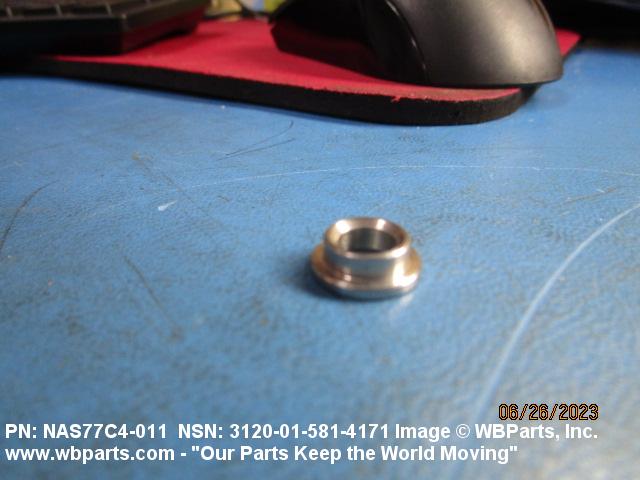

Drawings & Photos | NSN 3120-01-581-4171
Demand History | NSN 3120-01-581-4171
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-581-4171 | 2023-11-317 | 10 | United Kingdom |
| NAS77C4011 | 2023-06-164 | 10 | United Kingdom |
| 3120-01-581-4171 | 2023-06-156 | 8 | United Kingdom |
| 3120-01-581-4171 | 2017-11-327 | 49 | DIBBS |
| NAS77C4011 | 2013-02-59 | 60 | US |
Cross Reference | NSN 3120-01-581-4171
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS77C4-011 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-581-4171
Technical Data | NSN 3120-01-581-4171
| Characteristic | Specifications |
|---|---|
| BODY OUTSIDE DIAMETER | 0.3756 INCHES MINIMUM AND 0.3761 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.5000 INCHES NOMINAL |
| FLANGE WIDTH | 0.0620 INCHES NOMINAL |
| END ITEM IDENTIFICATION | RQ-4A |
| OVERALL LENGTH | 0.2520 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BUSHING-FLANGED,PRESS FIT,STEEL,CRES,BRONZE AND COPPER |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| STYLE DESIGNATOR | SOLID |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| BODY INSIDE DIAMETER | 0.2500 INCHES MINIMUM AND 0.2517 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-581-4171
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-581-4171
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | DN | TM:RQ-4A |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | F78 | Northrop Grumman Ryan Aero San Diego, CA 92127-ND |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
