NSN 3120-01-571-6708 PL4G10221 ITEM 001, PL4G10221ITEM001, PL4G10223 ITEM 002
Product Details | SLEEVE BEARING
3120-01-571-6708 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: PL4G10221 ITEM 001, PL4G10221ITEM001, PL4G10223 ITEM 002, PL4G10223ITEM002, TFI121408, TFI-1214-08, 4G10221 ITEM 001, 4G10221ITEM001, 4G10223 ITEM 002, 4G10223ITEM002, 3120-01-571-6708, 01-571-6708, 3120015716708, 015716708
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 12 FEB 2009 | 01-571-6708 | 13205 ( BEARING, SLEEVE ) |
Cross Reference | NSN 3120-01-571-6708
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4G10221 ITEM 001 | 31442 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 4G10223 ITEM 002 | 31442 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| PL4G10221 ITEM 001 | 31442 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| PL4G10223 ITEM 002 | 31442 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| TFI-1214-08 | 0JFH8 | IGUS BEARINGS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-571-6708
Technical Data | NSN 3120-01-571-6708
| Characteristic | Specifications |
|---|---|

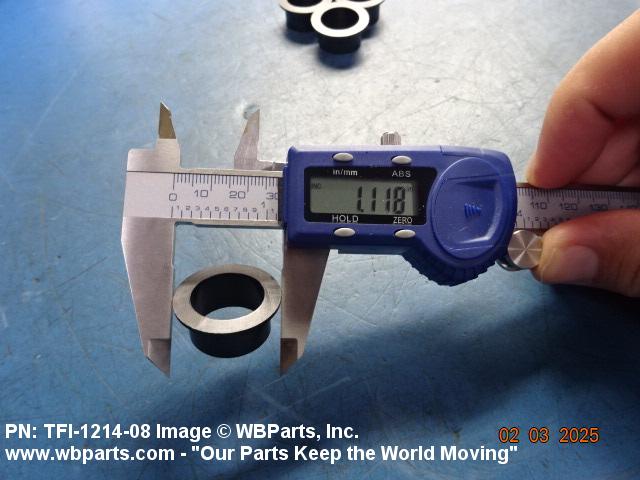

| FLANGE OUTSIDE DIAMETER | 1.1250 INCHES NOMINAL |
| MATERIAL | PLASTIC OVERALL |
| FLANGE WIDTH | 0.0620 INCHES NOMINAL |

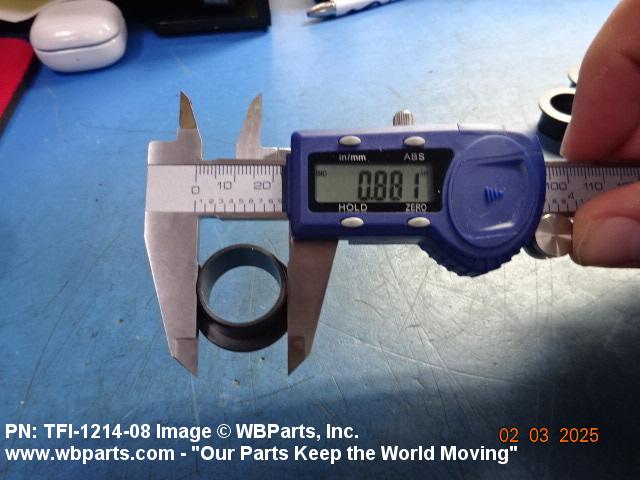

| BODY OUTSIDE DIAMETER | 0.8750 INCHES NOMINAL |

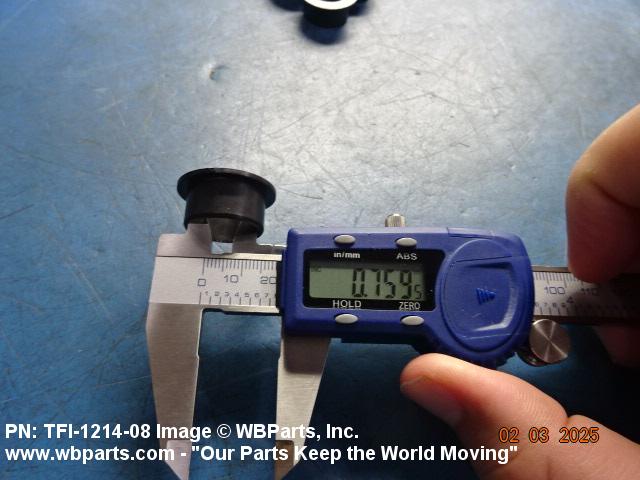

| BODY INSIDE DIAMETER | 0.7500 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BEARING,FLANGED,IGLIDE |

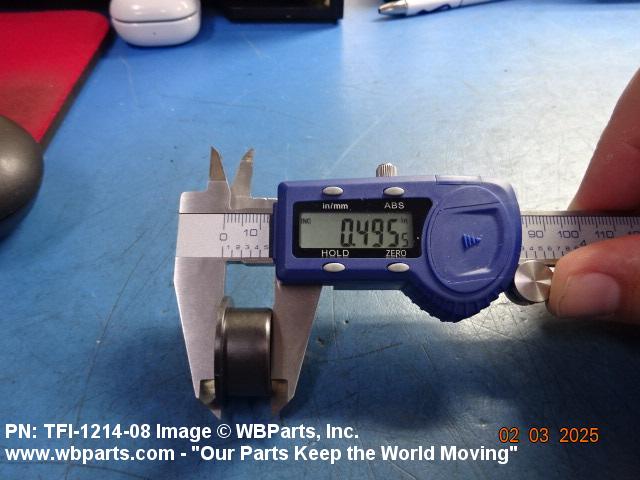

| OVERALL LENGTH | 0.5000 INCHES NOMINAL |
| STYLE DESIGNATOR | SOLID |
| END ITEM IDENTIFICATION | TRACK MODULE,AFT |
Restrictions/Controls & Freight Information | NSN 3120-01-571-6708
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-571-6708
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
